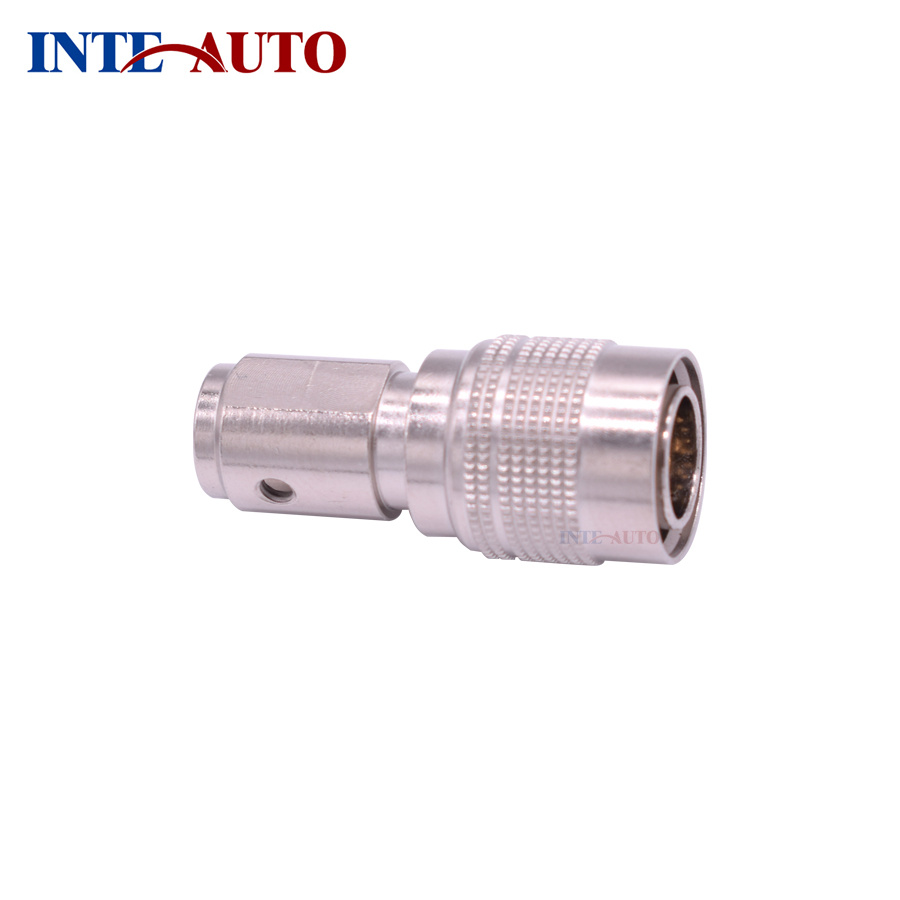

12 Pins Circular Push Pull Hirose Connector

Name: 12 Pins Circular Push Pull Hirose Connector
Brand: all-electronics-online.com
SKU: 835530525
Availability: InStock
Rating: 4.5 (58 reviews)

Price:	US $ 4-6/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	INT13-HR10A-10P-12P
Contact Gender:	Pin(Male)
Number Of Contacts:	12 Contact
Mounting Style:	Cable
Termination Style:	Solder
Series:	Hr10
Contact Plating:	Gold
Shell Plating:	Nickel
Panel Mounting Style:	Screw, Bulk-Head
Company:	TUV Audited Manufacturer
Lead Time:	in Stock

Product Description

HR10A Series circular industry connector
Plug with Solder pins and hole(PT-SH-FD)-02 Size 12 pins

Features
High performance, miniature circular connectors;
Highly reliable design for compact, high density application;
Small in size and full featured connectors with a well integrated design;
Extremely easy mating/unmating operations;
Easy to operable, the single-action push-pull lock structure allows for quick and efficient locking and unlocking;

Technical characteristics:

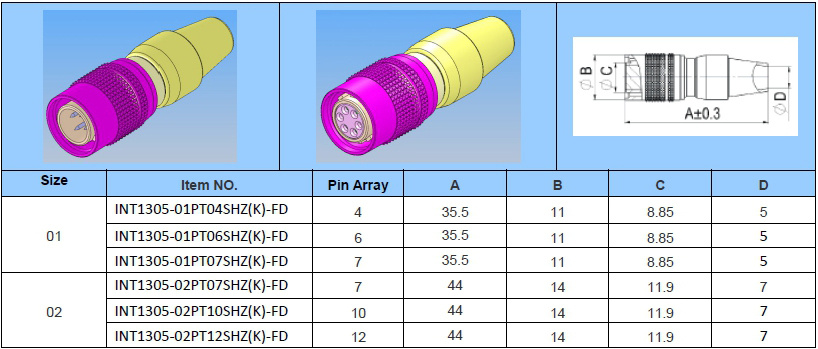

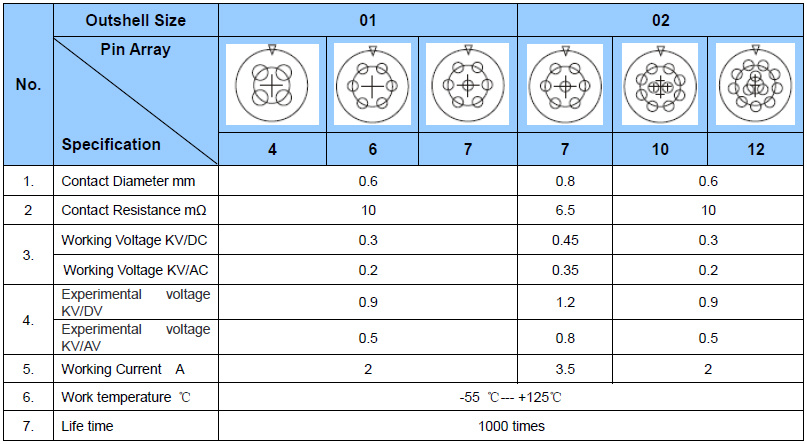

Specifications
Panel Mounting Style: Screw, Bulk-head;
Water Resistance: IP 67;
Number of Positions:4, 5, 6, 10, 12;
Rated Current: 2A;
Rated Voltage (AC): AC 100, 150V;
Rated Voltage (DC): DC 140, 200V;
Operating Temperature: -25°C ~ 85°C;

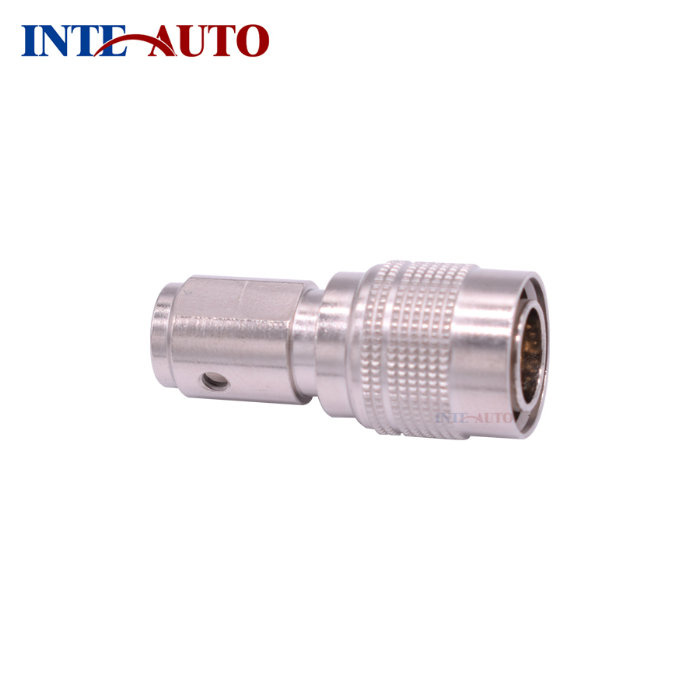

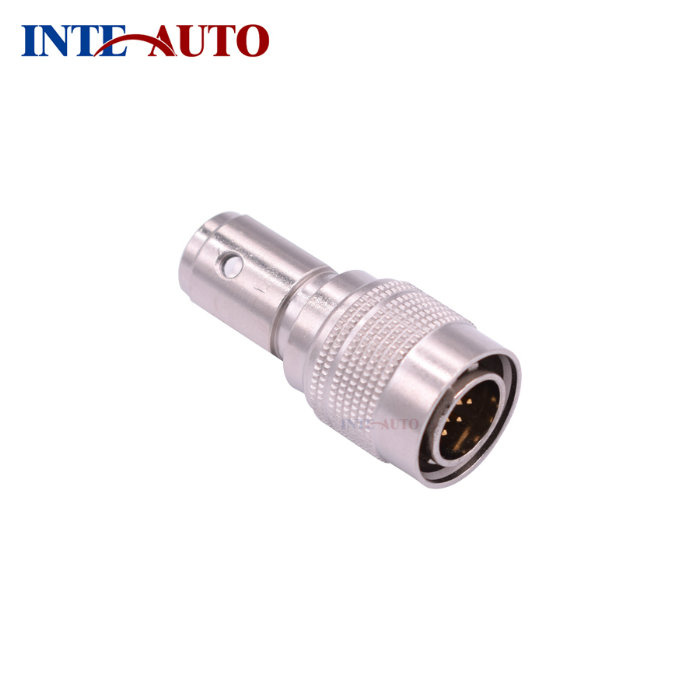

Product Photo Details:

INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.

INTEAUTO Certifications &Contact INFO

Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.

Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen

INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.

Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
