| Prod Model: |
Terminal Block CPC |
| Markets: |
North America,Eastern Europe,Oceania,Western Europe |
| Samples: |
Free |
| Temp.: |
130 |
| Insert: |
Brass |
| Screw: |
Galvanised Steel |
| Feature: |
Flame Retardant |
| Market: |
Europe, The Us |
| Housing: |
Polycarbonate (PC) |
| Shipping: |
by Sea, Air, Express |
| Application: |
Battery |
| Environmental Protection: |
General |
| Connection Mode: |
In-Line Connector |
| Contact Termination Form: |
Screws Fixed |
| Shape: |
U, H Shapes |
| Type: |
Imq, VDE, UL, Ce, SGS, RoHS |
| Character: |
Rigid |
| Interface Type: |
Standard |
| Brand: |
Es |
Product Description

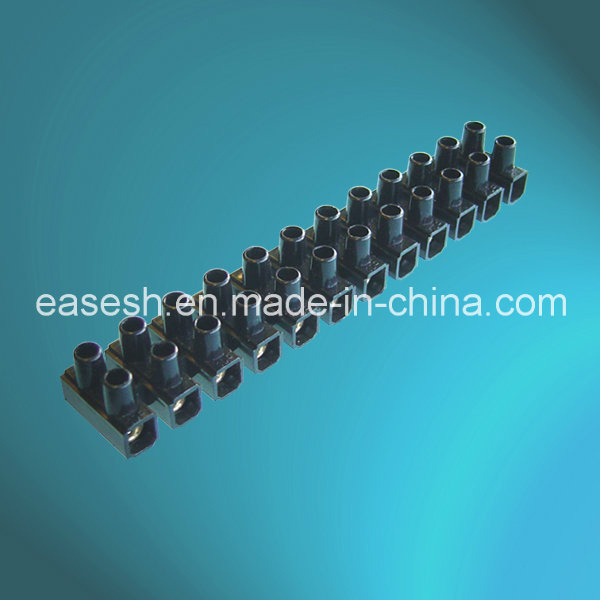

Polycarbonate (PC) Terminal Blocks / Terminal StripsInserts: Brass
Housing: Polycarbonate (PC)
Temp.: 130ºC
Screws: Galvanised Steel
Standard: CE (BS EN 60998)
Color: Black
Feature: Rigid & Flame Retardant
We have a full range of terminal blocks made of PE, PP, PA, PC, Porcelain and Brass and can provide standard, neutral packaging, or special customised packaging to meet with our customers different requirements.

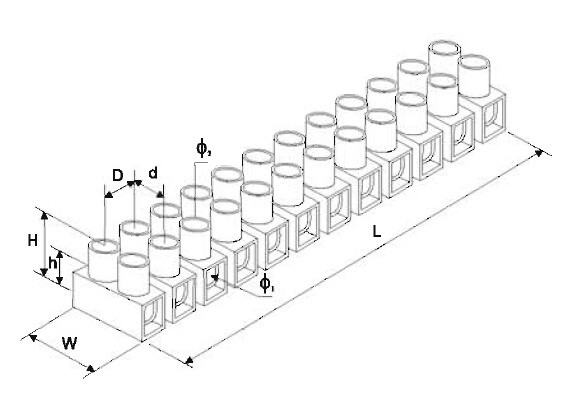

Technical Data:| EASE CODE | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) |
| L | W | Φ1 | Φ2 | D | d | H | h |
| CPC-10 | 10 mm2 | 10~57A | 500V | 131 | 22 | 4.3 | 3.1 | 11 | 10 | 17 | 9 |
| CPC-16 | 16 mm2 | 30~76A | 500V | 167 | 27 | 5.7 | 3.8 | 14 | 12 | 21 | 12 |
| CPC-25 | 25 mm2 | 60~101A | 500V | 165 | 42 | 6.8 | 4.8 | 17 | 24 | 25 | 15 |
| Cross Section: | rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2)
Φ1 wire entry hole diameter
Φ2 fixing hole diameter |
EASE Advantages:a. Quality is our culture. All proction is strictly according to UL/ VDE/ REACH/ IMQ/ CE regulateion and with100% tested before delivery.
b. Free samples will be provided for evaluation at any time.
c. Guarantee the prompt delivery. Special for customers in the UK and Europe: the same day delivery within UK and 5-day delivery in Europe.
d. OEM is available. And all your information will be confidential.
e. We are One-stop Shop for cable accessories.If you are frustrated that your current supplier of electrical accessories doesn't seem to be giving the category their full attention, is frequently out of stock, or offers substandard products, give us a call. Let's discuss how EASE Ltd. can increase your sales and margins!Your satisfaction is our ultimate goal!EASE Standard Package:

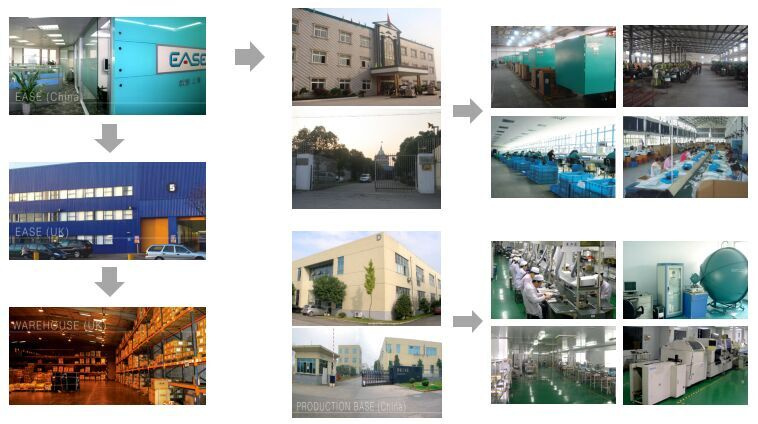

EASE Ltd. FACILITIES
EASE Ltd. EXHIBITIONS:
We have attended various Exhibitions in many countries for more than 10 years. And you can meet us at Hannover Messe EVERY YEAR. If you are interested in our products and hope to talk with us face to face but won't come to China, warmly welcome to our booth in the following years!
For more information, please go to www dot easegroup dot cn
EASE, founded in 1996, the leading manufacture in Europe and China for Cable & Lighting Accessories. A totally positive business approach and delication to a policy of making outstanding quality from China is key to our continued Success. With Strong focus on products quality, heavy investment has been made in toolingdesign and mouldmaking for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production Quality.
All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certifiedby UL, VDE and IMQ making EASE products the envy of many competitors.
Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies Who recognise the benefits of outsourcing products from hassle-free one-stop supplier' S service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM Production from container to container shipments for many years.
The UK 85, 000 square feet warehouse is vital to the company' S efficiency and flexibility. The integrated logistic force Behind EASE combined with dedicated staff allowsthe Company to provide the fastest possible responses to the Customers ever changing needs in the UK and across Europe.
The Company' S ability to deliver on its motto, "European Quality, Chinese Price" has gained itself an excellent reputation in a broad spectrum of industries, and has become an approved supplier to many leading international companies in the UK, Europe and America. The company continues to move forward with an ever-increasingportfolio of high quality Electrical, lighting and LED product lines, with the aim to be an ultimate single source for our long-term business Partners and all new customers.
