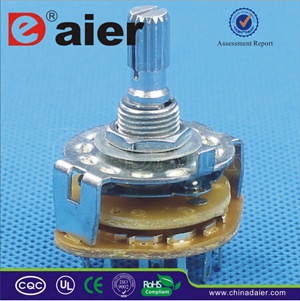

12 Position Round PCB Rotary Switch (RSB-1)
| Price: |
US $ 0.49-0.59/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
RSB-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Rsb-1 |
| Voltage: |
125VAC,250VAC |
| Rating: |
0.5A,0.3A |
| Position: |
2~12ways |
| Poles: |
1~6poles |
| Free Sample: |
Available |
| OEM&ODM: |
Yes |
| Rotary Number: |
Single Button |
| Usage: |
Electrical Appliance |
| Standard: |
Standard |
| Structure: |
Self-Locking |
| Operation: |
Knob |
| Certification: |
CE |
Product Description
PRODUCT DESCRIPTION12 Position Round Rotary Switch PCB(RSB-1) -----------------------------------------------------------------------------------------------------------------
RSB-1

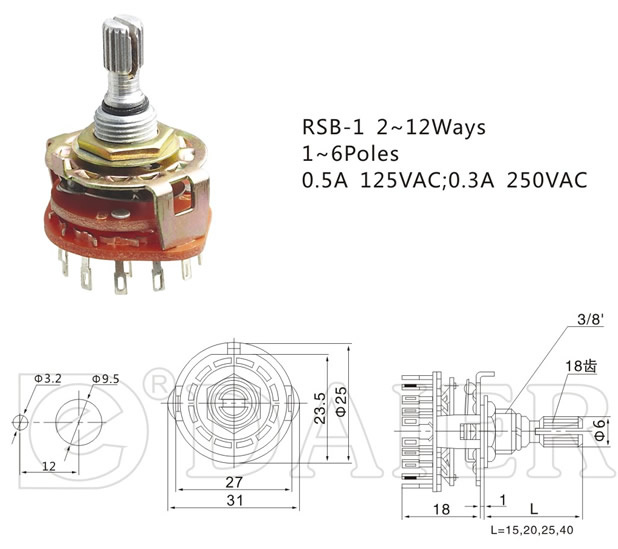

ROTARY SWITCH SPECIFICATION:
RATING: 0.5A 125VAC. |
INITIAL CONTACT RESISTANCE: 30mΩ Max. |
| INSULATION RESISTANCE: 100MΩ Min. 500VDC |
| WITHSTAND VOLTAGE: 1000VAC FOR 1 MINUTE |
| OPERATION FORCE: 600±300gf-cm | ENDURANCE: 10,000 CYCLES |
| |
| MATERIAL: |
| |
| ACTUATOR:PBT+30%GF(UL 94V-0) |
| CAP:NYLON66(UL 94V-0) |
| BASE:NYLON66(UL 94V-0) |
| RIVET:BRASS/COPPER ALLOY SILVER PLATED |
ApplicationThey are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.PRODUCT SHOW

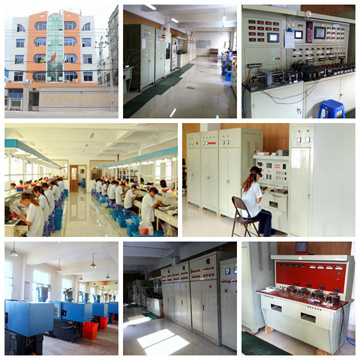

COMPANY INFORMATION
Daier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of aluminum box, knob, footswitch, DC jack, potentiometer, rotary switch, push button switch and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
Packing & Shipping& DeliveryPacking: 1000PCS/BAG According customize packing
Shipping: Ocean OR Airfreight by DHL / UPS / FEDEX / TNT
Delievry details: within 7 daysOur advantage 1)Our company (Daier Electron Co.,ltd) are engaged in producing all kinds of switches and Electronics.We have strong technological capacity, complete production testing equipment and a perfect mould processing center.
2)High quality&competitive price,we can help you open any potential projects!
3)Also free samples can be offered if you need!CONTACT US
| Attn | Wendy |
| Company | Yueqing Daier electron co.,ltd. |
| Tel | +0086-577-27870727 |
| Web | www.chinadaier.com |
Yueqing Daier Electron Co., Ltd. is a professional manufacturer of electromechanical switches in Yueqing, China. Yueqing is famous and ranked as "the city of electronics of China", so we share the best electronics resources and talents, and have excellent logistics chains too. It will only take us 40 minutes to Wenzhou airport, 3 hours to Ningbo port and 4 hours to Shanghai port.
We are engaged in producing 9 categories and about 2, 000 models of pushbutton switches, rocker switches, micro switches, touch switches, lift switches, refrigerator door switches, miniature toggle switches, indicators, alligators, fuse holders, signal lamps, AC sockets and etc. Our most competitive products are KCD series rocker switches. Most of our products have passed safety certifications as UL, cULus, VDE, CSA, TUV, CE, NEMKO, SEMKO, DEMKO, DEMKO, CCC, CQC, ENEC, and KEMA. Our products can be made of RoHS compliant materials too.
50% of our products are exported to Europe, the Middle-East, North-Africa, Asia, North and South America. We satisfy all our customers with advanced products, competitive prices, fast delivery and one-step service.
Our factory covers an area of over 5, 000 square meters, having a total staff of over 100 members. 20% of our staff are graduated from colleges and 3% of them are senior engineers. We have strong technological capacity, complete production testing equipment and a perfect mould processing center.
With a principle of being creative, advanced and honest, we are always improving our products and services to better satisfy you customers. We believe it's our mission to boost our customer's business, and then our customers will reward us with leadership sales and long-term relationships.
Join us, and we will be your best choice!
