12 Volt AGM Deep Cycle Cell Storage Battery for UPS Backup System

Prod Model:	FG106
Item Name:	Sealed Lead Acid Battery
Maintenance Type:	Free
Size:	196*131*155*180mm
Weight:	10.2kg
Material:	Fire Proof Case
Warranty:	2 Years
Plate:	Fla Plate
Cell:	6
Certificate:	Ce, UL.ISO.PV
Terminal Type:	Copper/Lead
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

12 Volt AGM Deep Cycle Cell Storage Battery for UPS Backup System

The products are widely used in telecommunications, electricity, solar energy, rail transportation and its auxiliary systems, UPS systems, emergency lighting systems and new energy and many other areasGuangzhou Future Green Energy Technology Co.,Ltd is a professional lead acid battery ,plate and Activity Silica Gel manufacturer with own R&D and sales team based on more than 7 years experience.
We welcome orders with "FGET" brand; We are also flexible to accept orders on OEM basis. Contact us now! All of the possibilities is in FGET

General Feature:
1. Long battery life, high capacity, Superior of recovery after discharge.
2. ABS material: increase the strength of battery container.  (Flame-retardant ABS is optional)
3. High purity raw material: ensure low self discharge rate.
4. Silver- coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity.
5. Pb CaSn alloy for plate grids: less gassing, less self-discharging high quality.
6. Maintenance-Free Operation
7. Low Self-Discharge

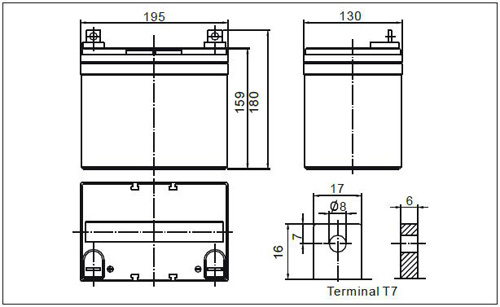

Battery Out Size:

Battery Parameters:


77° F(25º C)	20 hours rate(1.75A 10.8V)	35Ah
	10 hours rate(3.3A 10.8V)	33Ah
	5 hours rate(5.7A 10.5V)	28.5Ah
	1 hour rate(20A 9.6V)	20Ah
Internal Resistance	Full charged battery 77° F(25º C): 10mΩ
Capacity affected by Temperature   (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge                 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 330A(5S)
Charge                          (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.4 to 14.7V/77° F/(25º C)
	Max Current: 8.3A

Lead Acid Battery Series:

Model	Voltage	Capacity (20h)	Size (mm)	Plate Number	Weight (kg)
SJ6V4.5Ah	6V	4.5Ah	70*47*101*107	18	0.71
SJ6V7Ah	6V	7Ah	151*34*94*100	24	1
SJ6V10Ah	6V	10Ah	151*50*94*100	36	1.5
SJ12V1.3Ah	12V	1.3Ah	97*43*51*57	30	0.56
SJ12V4Ah	12V	4Ah	90*70*101*107	36	1.4
SJ12V7Ah	12V	7Ah	151*65*94*100	48	2
SJ12V9Ah	12V	9Ah	151*65*94*100	54	2.6
SJ12V12Ah	12V	12Ah	151*98*95*101	78	3.5
SJ12V17Ah	12V	17Ah	181*77*167*167	48	4.9
SJ12V24Ah	12V	24Ah	177*165*126*126	66	7.3
SJ12V30Ah	12V	30Ah	177*165*126*126	78	8.8
SM12V33Ah	12V	33Ah	196*131*155*180	42	9.2
SM12V36Ah	12V	36Ah	196*131*155*180	42	10.6
SM12V38Ah	12V	38Ah	196*165*175*182	36	11.4
SM12V42Ah	12V	42Ah	196*165*175	42	12.8
SM12V45Ah	12V	45Ah	196*165*175	42	13.2
SM12V55Ah	12V	55Ah	229*138*208*227	48	15
SM12V65Ah	12V	65Ah	350*166*175	66	19
SM12V70Ah	12V	70Ah	350*166*175	72	21
SM12V80Ah	12V	80Ah	350*166*175	78	22
SM12V100Ah	12V	100Ah	307*168*208*227	66	28
SM12V120Ah	12V	120Ah	406*174*208*233	90	33
SM12V120Ah	12V	120Ah	406*174*222*238	78	34
SM12V134Ah	12V	134Ah	340.5*173*280(285)	66	36
SM12V145Ah	12V	145Ah	340.5*173*280(285)	78	40
SM12V150Ah	12V	150Ah	483*170*241*241	114	43
SM12V180Ah	12V	180Ah	532*207*215*240	126	52
SM12V200Ah	12V	200Ah	522*240*219*244	138	59
SM12V210Ah	12V	210Ah	522*240*219*228	150	61
SM12V260Ah	12V	260Ah	522*240*219*228	162	69
Front Terminal Battery
SM12V55Ah-F	12V	55Ah-F	277*106*222.5*222.5	66	16
SM12V75Ah-F	12V	75Ah-F	562*114*188*188	78	18
SM12V100Ah-F	12V	100Ah-F	394*109*286*286	66	33
SM12V105Ah-F	12V	105Ah-F	507*109*223*238	66	35
SM12V150Ah-F	12V	150Ah-F	551*109*288*288	66	46
SM12V150Ah-F	12V	150Ah-F	551*105*288*288	66	45
SM12V180Ah-F	12V	180Ah-F	560*125*316*316	78	52

Applications:


Solar and wind Powe System Cable TV Telecommunications Wheelchair,Golf Cart Marine Equipment Electrical Toys

Military Equipment Emergency lighting Power Plants Medical Devices UPS Emergency Alarm Systems


Battery Use and Maintenance:

1) Please use constant-voltage charge.
2) In floating charge, the voltage is 2.23 to 2.27 per unit cell.
3) In cycle use, the voltage is 2.35 to 2.45 per unit cell, the max. Current is no more than 25%° C
4) Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use.
5) Please do not use it near the heat source and open flame.
6) Please keep it at low temperature. Please change it while there is liquid leaking or damage.

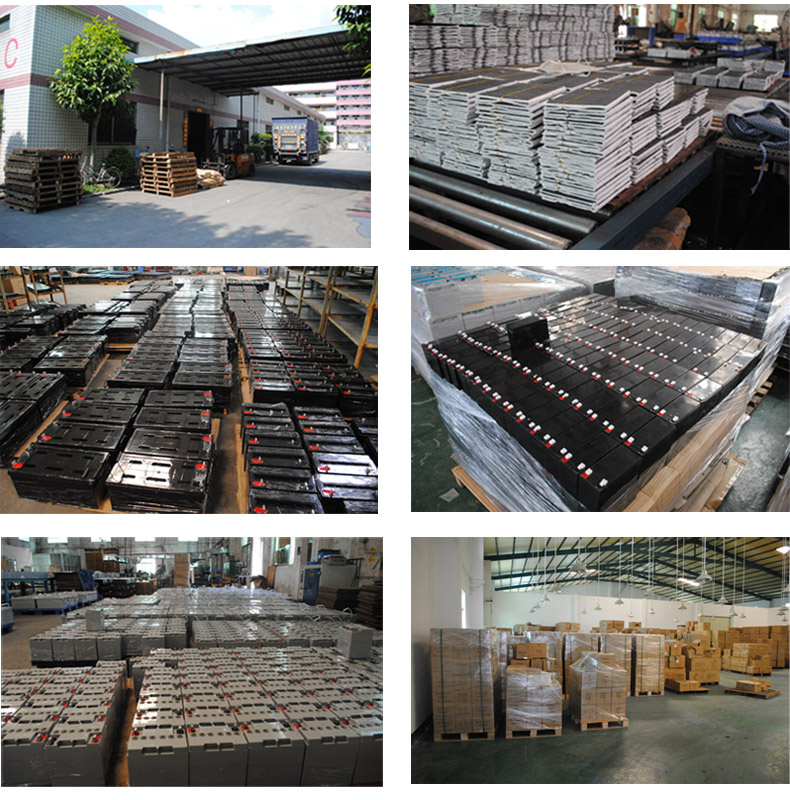

Factory Show:

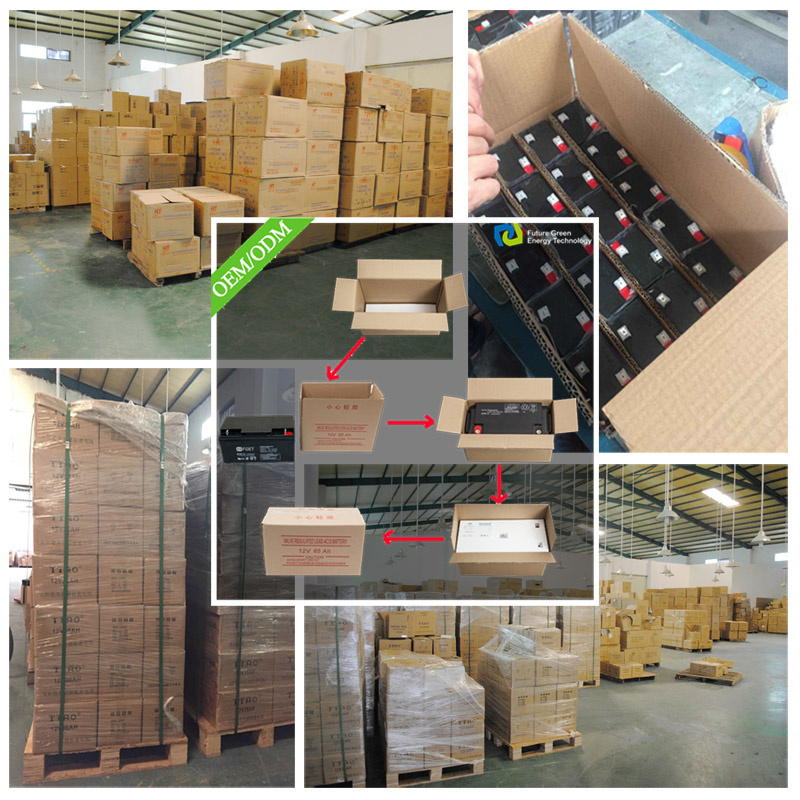

Packing Details:



Our Services:

 Samples and OEM, Warranty and After-Sale Service:

•  Sample can be provided for quality testing
•  OEM Welcomed
•  Warranty:2 Year
•  After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support

Our Qualification:



Payment Terms:

Payment Terms	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	Paypal
Delivery time	15 working days after receiving payment for one container


FAQ:
Q1: How to choose a right battery?
A1:Tell us your demand, then our sales will recommend a suitable battery to you.
Q2: How about the delivery time?
A2:  7 days for sample; 15 days for bulk order.
Q3: What is the warranty of lead acid battery?
A3: 2 years warranty on FGET-Solar product.
Q4: How to solve the technical problem?
A4: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q5: How To Ask for support if products failure in warranty?
A5: 1. Email us about PI number, serial number, Product S/N number,  show us more details such as: pictures, your testing report or video, if it is the quality problem of product itself, we will resend a new one in next order. 2. we will submit your case to our after sales department, and solve it in 24 hours .
