Prod Model: |
Power Star Series 1KW-12KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: |
12 Months |
Soft Start: |
Yes |
OEM/ODM Servicee: |
Accepted |
Product Description

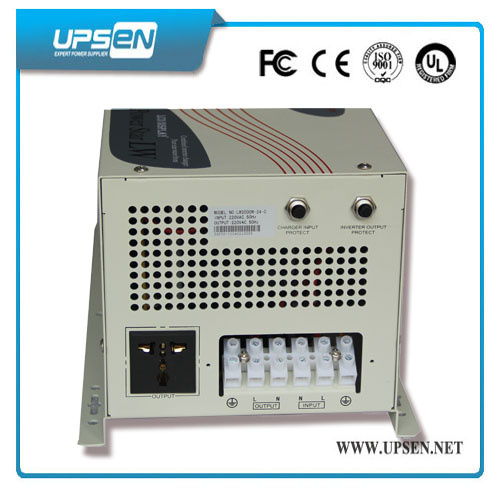

120/220/230/240VAC Low Frequency pure sine wave inverters with charger
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)
Application
UPSEN Power Star Inverter widely applied in Solar power system,Communication equipment ,telecommunications device,Emengency EPS,small television sets, refrigerator,office equipment,etc.
Key Features
1:Low total harmonic distortion: Below 5%
2:CE Approved High Quality Power Inverter.
3:Soft start: Smooth start-up of the appliances
4:AC input protection against over and low voltage
5:Equiped with LCD display, showing the voltage and current
6:Reverse connection (optional by hard connector), Blackouts
7:Increased inverter reliability to match the life of solar modules
8:With power ON/OFF switch and Two-color LED indicator:Power,Fault
9:120/220/230/240VAC Low Frequency pure sine wave inverters with charger
10:Output low frequency pure sine wave same as the mains power, never harm to any load
11:Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off
Technical Specification
Power Star Series | |
Model No. | PS1000 | PS2000 | PS3000 | PS4000 | PS5000 | PS6000 | |
Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | |
AC Input | |
Waveform | Pure Sine Wave | |
Voltage | 120VAC/230VAC | |
Acceptable Voltage | 194-243VAC\164-243VAC(wide mode) | |
Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |
Line Low Return | 95V±4%/194(164 wide mode±4%) | |
Line high Transfer | 135V±4%/253±4% | |
Line high Return | 127V±4%/243±4% | |
Frequency | 50Hz or 60Hz (Auto sensing) | |
Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | |
Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | |
AC Output | |
Waveform | Pure Sine Wave(bypass mode sync to input) | |
Voltage | 120/220/230/240VAC(bypass mode sync to input) | |
Voltage Regulation | ±10%rms(bypass mode sync to input) | |
Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |
Peak Power | 3 times of rating power | |
Short Circuit Protection | Yes,shutdown after 10ms | |
Power Factor | 0.9-1.0 | |
DC Input | |
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |
Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |
Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |
Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |
High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |
Max Charging Current | 35A/70A | |
Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |
Transfer Efficiency | |
Line Mode | >95% | |
Battery Mode | >88% | |
power saver | Available when the load is less than 25 Watts | |
Indicators | |
7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | |
(green lighting),LED3 charging mode(yellow lighting),LED4 Fully charged | |
(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded | |
shutdown(red lighting),LED7 Saving Mode(green lighting) | |
3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | |
Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. | |
|
Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. | |
Protections | low battery,over charging,over temp,over load | |
Communications | RS-232/USB(custom-made) | |
Enviromental | |
Operating Environment | 0-40ºC,0-90%RH(non-condensing) | |
Audible Noise | <60dB | |
Physical | | | | | | | |
Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | |
Dimension L*W*H(mm) | 442*218*179mm | 598*218*179mm | |
*Specification are subject to change without prior |
Warranty
For most of the inverter products are 3 year warranty and lifetime technical support.
Spare Parts
We can provide free spare parts if the order reaches 100pcs.
Delivery time
Normally if we have goods in stock, after received the payment,we can delivery the goods within 3 days. But it requires 15 to 20 days for production if no have in stock.
