120/220/230/240VAC Single Phase Solar Inverter Toroidal Transformer DC AC Inverter with 3 Steps Charging

Name: 120/220/230/240VAC Single Phase Solar Inverter Toroidal Transformer DC AC Inverter with 3 Steps Charging
Brand: all-electronics-online.com
SKU: 834906495
Availability: InStock
Rating: 4.3 (95 reviews)

Price:	US $ 1-50/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Power Star Series 1KW-12KW
Power Source:	Electric Power
Application:	Home Theater
Protection:	Overvoltage
Control System:	MPPT

Product Description

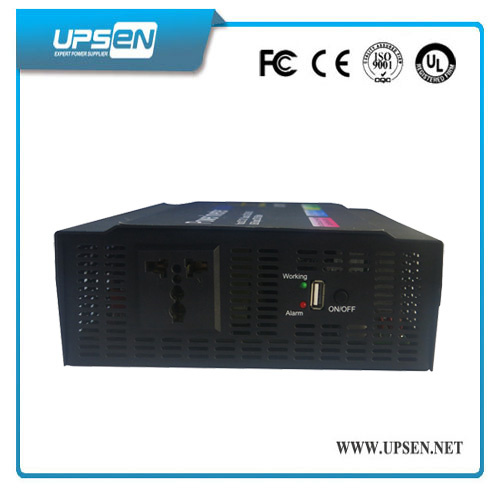

300W 500W 600W 800W 1000W Mini Power Inverter

Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)
Key Features:
1:Pure sine wave output, available for sensitive load
2:Save the power and improves the working efficiency
3:Excellent performance and high conversion efficiency
4:AC Grid priority& battery priority working mode are selectable
5:Delay before transfer, extra protections for loads under generator mode
6:Automatically detects low voltage and shuts down to protect your battery
7:High frequency design, higher transfer efficiency, low standby power loss, long standby time
8:Inverter use ring transformer, temperature control for the cooling fan, light weight and high efficiency

Application
Home,office,Monitoring,Communications Equipment,Automation systems,Data processing systems,TV ,Computer room,Data center,Emergency Lighting Systems,Vending Machines,Geophysical Equipment etc.

Technical Specification

Model		IS300	IS500	IS600	IS800	IS1000
Rated power		300W	500W	600W	800W	1000W
Peak power		600W	1000W	1200W	1600W	2000W
Start method		Soft start
DC input	Rated input voltage	12V/24V/48V(optional)
AC Output	Voltage	100V/110V/220V/230V/240V(optional)
	Frequency	50HZ/60HZ(optional)
	Waveform	Pure Sine Wave
	Maximum DC	110%
	loads output power
	Total Harmonic Distortion	THD≤2%
	Rated output efficiency	>85%
Protection	High input voltage shutdown	15.0V, automatically shutdown, alarm twice
	Low input voltage shutdown	10.0V, automatically shutdown, alarm twice
	Low input voltage alarm	10.5V, no power off, alarm once
	Over temperature protection	When the temperature of internal heat sink is above 80ºC, it will shutdown automatically and alarm three times
	Short circuit protection	Shutdown, alarm five times, restart automatically
	Overload	Shutdown, alarm four times, restart automatically
	protection
	Reverse Input	Quick-break fuse
Environment	Temperature	-10 - 40ºC
	Humidity	0%-95%
Noise of the fan		<55dB
Insulation resistance		EN50081-1/EN55022
Insulating strength		EN50081-1/EN55022
Weight (Kg)		1.16		1.92	3
Size		23511565		29513272	32018572
WDH(mm)
*Specifications are subject to change without prior notice.

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
