| Prod Model: |
MYZW-120KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
120kVA |
| Accuracy: |
1% |
| Efficiency: |
98% |
| Power Factor: |
0.8 |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
Sjw |
| Frequency: |
Low Frequency |
| Brand: |
Powlik |
Product Description

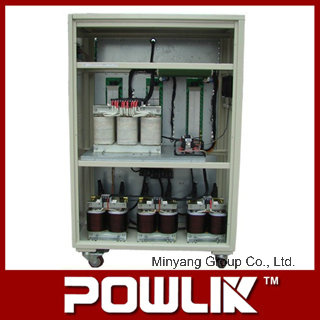

120KVA Static Automatic Voltage Regulator ,120KVA SCR control non-contact static voltage stabilizer
1.Application1) CNC Machining Centers
2) SMT
3) Printer
4) EDM
5) High way/railway system
6) Medical facilities
7) Laser cutting machine
8) Circuit board drilling machine
9) Automatic insertion machine
10) CNC punch press
11) Net communication basic system
12) Petrochemical/Oil/Power system
13) Broadcast/Television/Bank system
14) Plastic Injection Molding Machines
15) Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.2. The comparison between Contactless AVR and Brush type voltage regulator : 1) Precision of voltage regulation is 1%, comparing 3% from carton brush type. More accureate & Stable.
2) It only take 30ms to regulate voltage, comparing 1000ms from carton brush type. Faster response & protection.
3) No Brush, no Abrasion, no Motor = No maintenance = Save money & energy.
4) With overload, shortload, short circuit, lack of phoses and automatically bypass protection. No hazard.
5) No Power on compension, no damdage to equipments.
3 .Technical Parameter Operation method | Intelligent SCR control |
Input Voltage range | 380V/220V( can customize various voltage) |
Input frequency | Plus or minus ±15%~±60% (larger range can be customized) |
Output rated voltage | 380V/220V( can customize various voltage) |
Output Voltage accuracy | ±1% |
Filter distortion | No additional waveform distortion ( static state) |
Efficiency | ≥98% |
Power factor | 0.8 |
Response time | ≤0.03s |
Anti-interference | Arrester, EMI filter, LC filter(optional) |
Over-voltage protection | Output phase voltage 10%, cut-off input or transfer to bypass |
Overload protection | Electronic detection, cut off input in three minutes |
Bypass protection | Automatically transfer to bypass in case of failure |
Phase lack protection | Cut-off automatically |
Overload ability | 5 time rated current 1 second |
Liquid crystal display | Voltage, Current, Abnormal |
Alarm | LED display and alarm |
Ambient temperature | -15~45°C |
Altitude | <4000M |
Noise | <45dB(1 m distance) |
Cooling system | Cooling fan |
4.Technology1. Userfriendly HMI, largescreen LCD display, enable to know all of system voltage, work current, status and other information;
2. Using a combined transformer compensation, SCR noncontact switch optical coupling isolation industrial MCU control and other advanced technology;
3. Non-contact, Anti-interference, maintenance- free no mechanical error and no wear of carbon brush
4.Splitphase adjustment automatically, automatic balance of three phases, stable performance, reliable
5. Fastest stabilizer: adjust the voltage to the output voltage rating in the 40ms;
6.State display, Error indication, Alarm reminders, Regulated power supply and bypass switching function
7.With the function of protection against overload, overvoltage, under voltage, phase lack, short circuit, delay output 8. RS-232 interface (Optional), Remote control, Remote and telemetry functions;
9.Efficiency is as high as 98%10. lightning protection, filtering function(Optional)
11. capable of overload, suitable for resistive, capacitive, inductive and mixed loads
