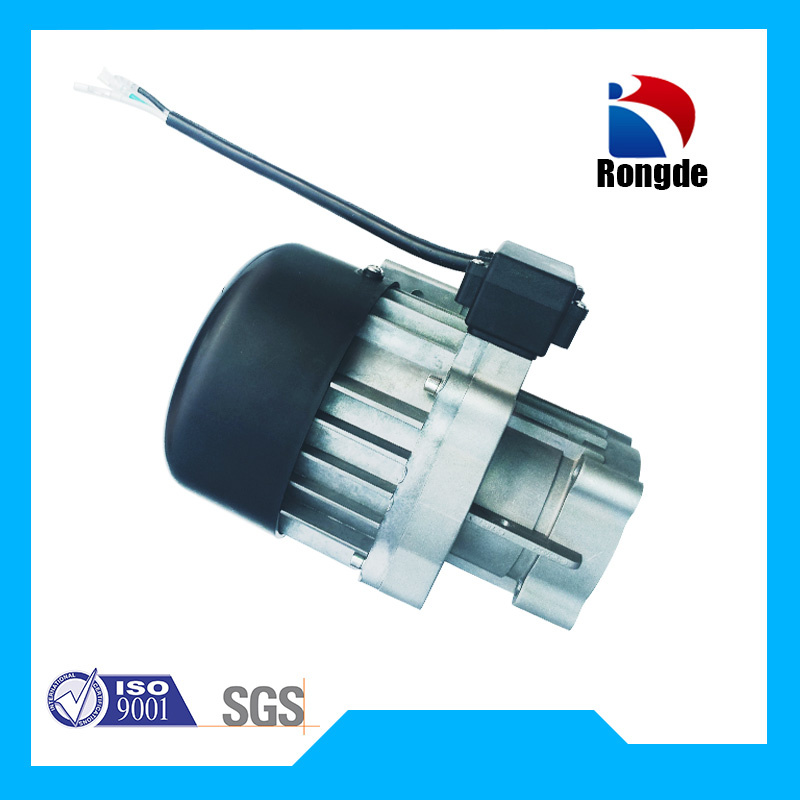

120V-1500W Brushless Motor for Cleaning Machine

Name: 120V-1500W Brushless Motor for Cleaning Machine
Brand: all-electronics-online.com
SKU: 708369092
Availability: InStock
Rating: 4.7 (80 reviews)

Price:	US $ 25-30.74/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	E102-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	36V ~ 120V DC / 100V~230V AC
Power:	700W-2500W
No Load Speed:	3000 Rpm_5000 Rpm
Efficiency:	> 80%
Application:	Power Tools
Operating Speed:	High Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Type:	E102-B 102 Series High Efficiency BLDC. Motors

Product Description

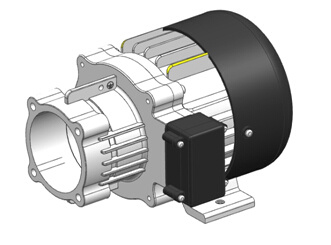

Φ102 BLDC
Φ 102 series High Efficiency BLDC. Motors

E102-B Applied to ac and dc cleaning machine

Rated Voltage :36V ~ 120V DC / 100V~230V AC
Power:700W-2500W
No load speed:3000 rpm—5000 rpm
Efficiency> 80%
Position Control Mode:No HALL/With a HALL
Output shaft Diameter:15~25mm (customization)

U		I	P1	T	n	P2	EFF	P.F
120.5	5.06		606	1.57	3094	508.647	83.935	0.993
120.4	5.88		702	1.85	3094	599.361	85.379	0.991
120.3	6.72		804	2.11	3096	684	85.074	0.994

E102E102Series apply the product type
Widely used in Dc cordless power tool and gardening tool Industry due to high efficiency and powerful dynamical system.

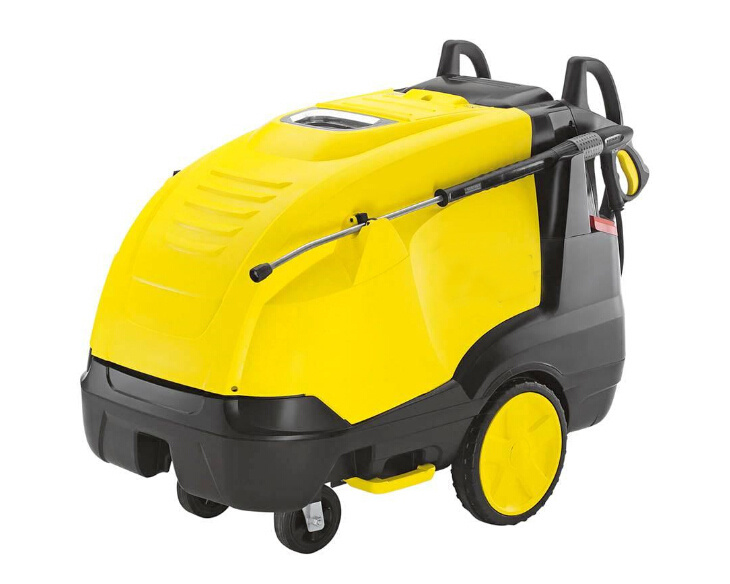

Such as: high pressure cleaning machines.
With low speed, high power, high torque low noise characteristics and long life according to different load satisfy the working life from 500 to 50,000 hours.

Chuzhou Rongde Electronic Science and Technology Co., Ltd was established in March, 2010. It covers land area of 7, 000 sqm and potentially holds 150 employees to work, which is one of the largest Peer enterprises in Chuzhou.

Rongde has extensive experience in manufacturing industry, and in order to meet the high demands of our customers, Rongde focus on the development and production of professional power tools series motor, brushless motor and micro wind turbines.

During the past five years, Rongde has been appraised successively as the provincial high-tech enterprises and the excellent private enterprise.

Rongde has professional R&D team and production team, which concentrate on Small &Special Electrical Machines and lay a strong foundation for product upgrading.
