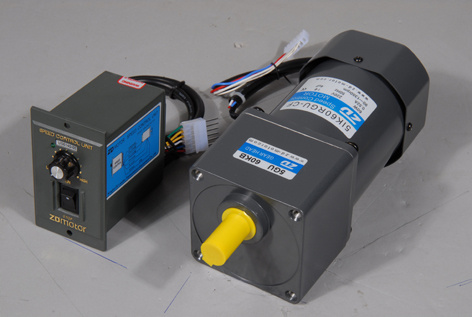

120V 60W Controls AC Motor (5IK60RGU-CF/5GU 60KB)

Name: 120V 60W Controls AC Motor (5IK60RGU-CF/5GU 60KB)
Brand: all-electronics-online.com
SKU: 697842145
Availability: InStock
Rating: 4.4 (93 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	5IK60RGU-CF/5GU 60KB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	60, 70, 80, 90mm
Power:	3W, 6W, 10W, 20W, 40W
Voltage:	110V, 220V, 12 Volt
Frequency:	50Hz, 60Hz
Certification:	CE, UL, ISO9001 and RoHS

Product Description

Speed control motor, Gear motor, AC motor
120V 60W controls AC motor
Features:
1) Dimensions: 90mm
2) Power: 60, 90, 120W
3) Voltage: 110V, 220V
4) Speed: 50Hz: 90~ 1350rpm, 60Hz: 90~1650rpm
5) Reduction ratio: 3~ 200K
Usage:
Our motors can be widely used in medical appliance, packing mechanism, printing mechanism, cup making machine, textile machinery, and so on.
Certification: CE, UL, ISO9001 and RoHS

Model * Type		Output power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN. m	Current A	Capacitor μ F
Prnion Shaft	Round Shaft					1200r/min mN. m	90r/min mN. m
51K60RGN-AFJ		60	1ph100	50	90-1400	460, 490	140, 160	265	2.00	20.0
				60	90-1700
51K60RGN-EFJ		60	1ph110	60	90-1700	490	160	265	1.80	12.0
			1ph120
51K60RGN-CFE		60	1ph220	50	90-1400	490	140	265	0.80	4.0
			1ph230
51K60RGN-HFE		60	1ph220	60	90-1700	490	160	265	0.85	4.0
			1ph230

Parallel Shaft Gearhead(Sold Separately)

Gearhead Type	Gearhead Model	Gear Ratio
Long Life Low Noise	5GN*K	3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200
Long Life Low Noise	5GN10XK(Decimal gearhead)

Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.

History of ZD motor:

March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile, start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standardin 2008;

ZD is the first draft-man of standard in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.

Honors:

Ningbo's well-known trademarks;

Ningbo technology innovation model.

Ningbo patent demonstration enterprise;

Ningbo innovative pilot enterprises;

Ningbo Safety Standardization enterprises;

Chinese micro motor Union;

Chinese gear Union;

Chinese Electric parts Union;

Chinese Micro motor standardized Union;

First draft-man of Chinese standard of micro motor
