120W 12V 10A Open Frame Power Supply Metal Casing Power Supply

Name: 120W 12V 10A Open Frame Power Supply Metal Casing Power Supply
Brand: all-electronics-online.com
SKU: 839295455
Availability: InStock
Rating: 4.7 (27 reviews)

Price:	US $ 3-7/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YDS120
Output Voltage:	12V
Output Current:	10A
Typical Efficiency:	73%
Protection:	Auto Recovery
Over Load:	105-115% of Rated Output Power
Max. Ripple & Noise:	250mv
Mtbf:	>200K Hrs.@25°c(Mil-Hdbk-217f)
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	FCC
Brand:	OEM

Product Description

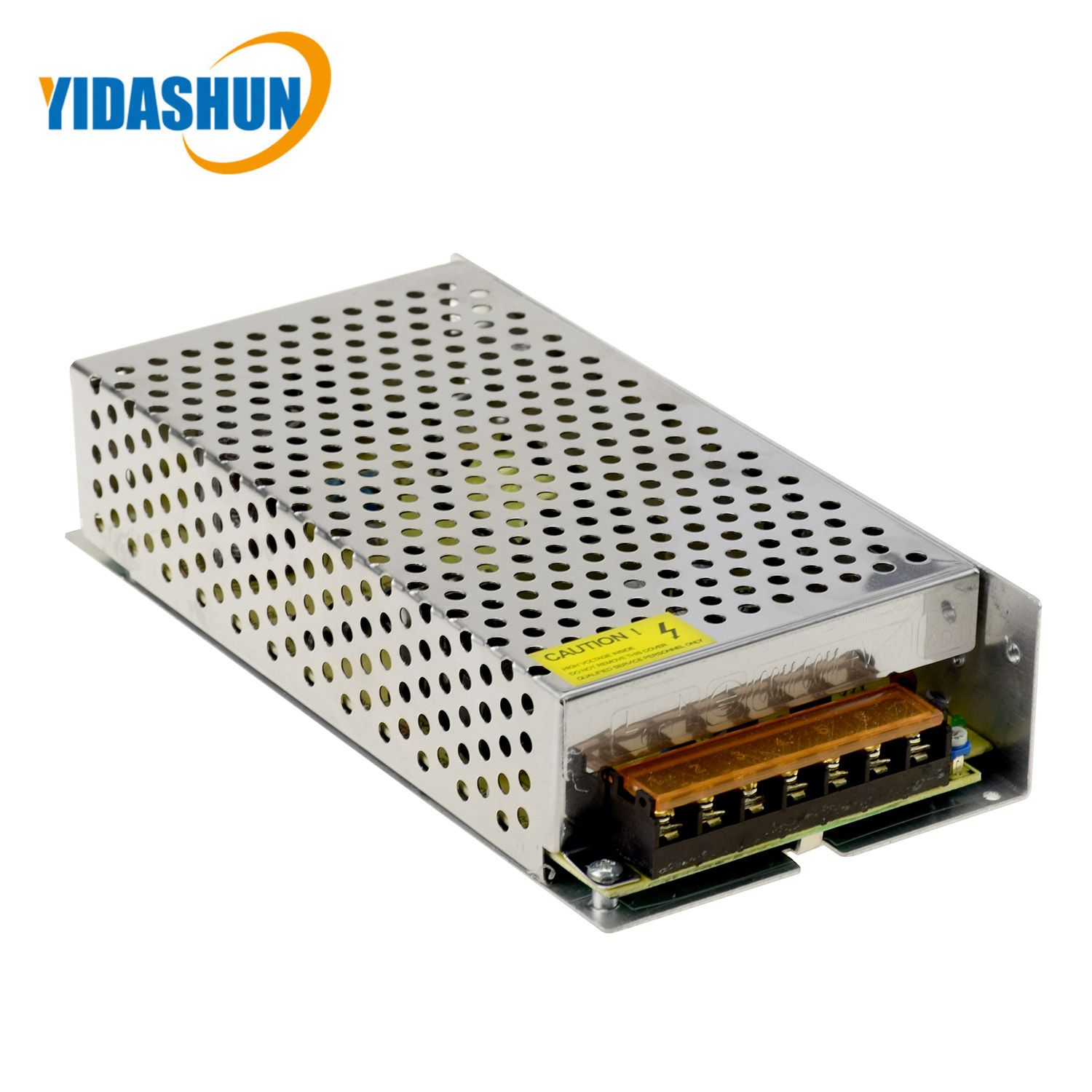

120W 12V 10A open frame power supply metal casing power supply

12V 10A Technical Specification
Model No.	YDS120
Input	Voltage	AC 100-240V Worldwide
	Vibration Input Voltage Range	AC 95-265V
	Frequency	50-60Hz
Output	Voltage	DC 12V
	Current	10A
	Power	120W
	Typical Efficiency	73%
	Adjustable Range of Voltage	DC 12V-12.5V
	Max. Ripple & Noise	250mV
Protection	Over Load	105-115% of Rated Output Power
Protection	Short Circuit	Protection Type: Auto Recovery
Electric Strength	High-pot test	3KV AC
Environment	Working temperature and humidity	-10°C~+60°C,20~90%RH
	Store temperature and humidity	20°C~+85°C,10~95%RH
	MTBF	>200K hrs.@25°C(MIL-HDBK-217F)
Warranty	1 year
Feature	Dimension(LWH)	1999840mm
	Weight	390g
	Inner box size	20910247mm
	Inner box weight	36g
	PCS/CTN	50PCS/CTN
	CTN size	532543cm
	GW/CTN	22.5kg
Safety & EMC	Safety Standards	EN55015/EN61000-3-2/EN61000-3-3

SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.

Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!

QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.

Material: Strictly control of material using, meet international requested standards.

Semi-finished products inspection: Product inspection before 100% finished.

Production line test: With work team or data engineer who will inspect machines and lines at fixed period.

Finished Product Inspection: Quality and property test before products are packed and loaded.

Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE

WARRENTY

♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.

♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.

♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
