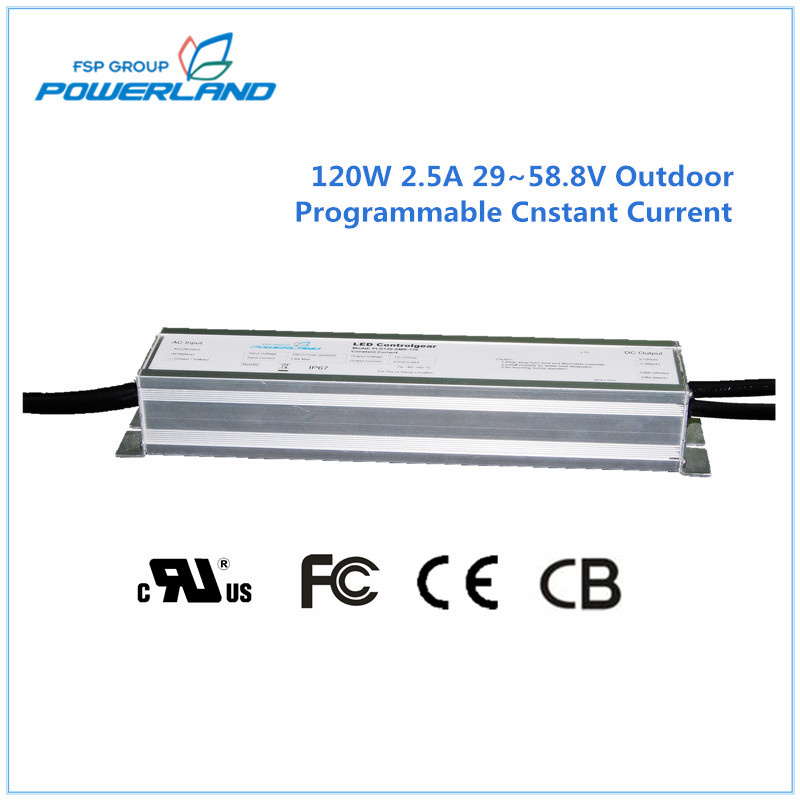

120W 2.5A 29~58.8V Outdoor Programmable Constant Current LED Power Supply

Name: 120W 2.5A 29~58.8V Outdoor Programmable Constant Current LED Power Supply
Brand: all-electronics-online.com
SKU: 804303975
Availability: InStock
Rating: 4.4 (120 reviews)

Price:	US $ 19.57-31.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD120-SMR-48
Output Power:	120W
Dimming:	0~10V, PWM, External Resistor, Clock
Output Voltage:	29~58.8V
Output Current:	2.5A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	227X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

120W 2.5A 29~58.8V Outdoor Programmable Constant Current LED Power Supply

PLD120-SMR-48 offers low-cost digital programmable drivers with wide-range adjustable output current ,together with 12V/20mA auxiliary output (optional) for smart lighting.

The output current of this series are programmable up to 2.5A, and designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.

Applications
Cost-effective outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels

Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/20mA auxiliary output(optional)
Output current programmable
> 70,000 hours lifetime at 75oC Tcase
> 7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current output
Universal input voltage: 108~305Vac
Compatible with 0-10V, PWM, external resistor, clock dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 4kV, L/N-Earth 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD120-SMR-48
Output Voltage	29~58.8V
Max Output Current	2.5A
Output AUX Power Voltage (Optional)	12V
Output AUX Power Current (Optional)	0-20mA
Dimming	0(0.05)~10V, PWM, External Resistor, DMX
Current Programmable	Yes
Output Power	120W
Max. Current Ripple	250mA
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.6A
Max. Input Power	140W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	73V
THD	<20% @ 100-277Vac & 80~100% full load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	227x49x40.5 mm (8.94x1.93x1.59 inch)
Mounting Length	240 mm (9.45 inch)
Overall Length	253 mm (9.96 inch)
Weight	0.92 kg (2.03 lb)
Life Time	>70,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
