120W 24V Outdoor Programmable Dimmable Constant Voltage LED Driver

Name: 120W 24V Outdoor Programmable Dimmable Constant Voltage LED Driver
Brand: all-electronics-online.com
SKU: 804319455
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 19.57-31.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD120-SMR-24
Output Power:	120W
Dimming:	0~10V, PWM, External Resistor, Clock
Output Voltage:	24V
Output Current:	0~5A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	227X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

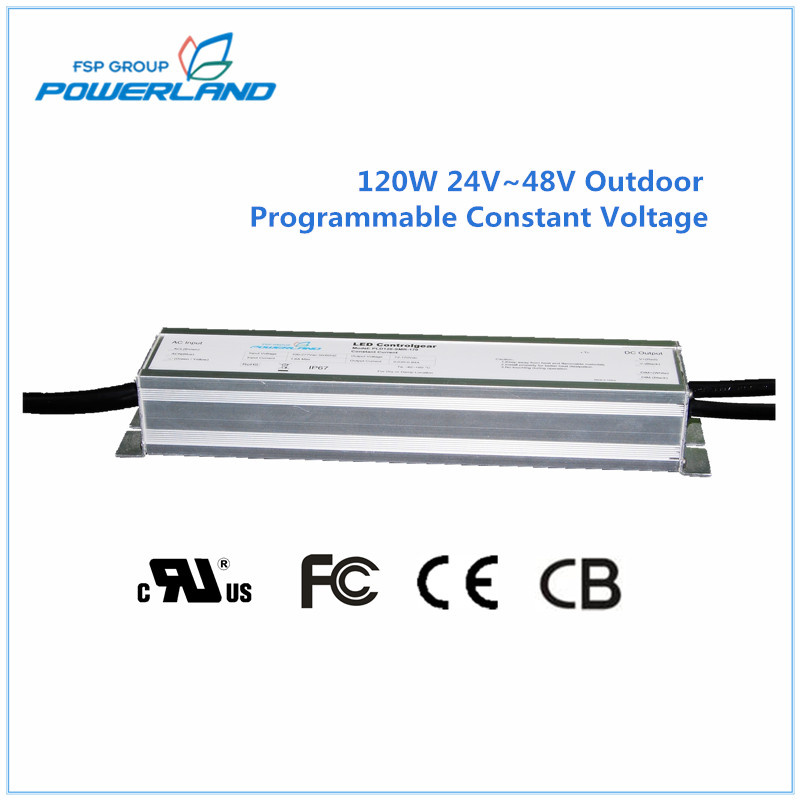

120W 24V~48V Outdoor Programmable Dimmable Constant Voltage LED Driver

PLD120-SMR series offers low-cost digital programmable constant voltage drivers with wide adjustable range, together with 12V/20mA auxiliary output (optional) for smart lighting.

The output voltage of this series are programmable up to 24V.

Applications
Cost-effective outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels

Features
12V/20mA auxiliary output(optional)
Output voltage programmable
> 70,000 hours lifetime at 75oC Tcase

> 7 years warranty at 75oC Tcase
IP67 ingress protection

Min. operating temperature @ -40oC
Constant voltage output
Universal input voltage: 108~305Vac
Output voltage programmable

Compatible with 0-10V, PWM, external resistor, clock dimming

Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13

Surge voltage rating: L-N 4kV, L/NGND 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD120-SMR-24
Output Voltage	24V
Output Current	0~5A
Output AUX Power Voltage (Optional)	12V
Output AUX Power Current (Optional)	0-20mA
Programmed Voltage Range	20~30V
Output Power	120W
Max. Voltage Ripple	±0.5%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.6A
Max. Input Power	140W
Power Factor	>0.97 @ 115Vac & 80~100% full load, >0.90 @ 277Vac & 80~100% full load
Efficiency	90%
Max. Open Circuit Voltage	50V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	227x49x40.5 mm (8.94x1.93x1.59 inch)
Mounting Length	240 mm (9.45 inch)
Overall Length	253 mm (9.96 inch)
Weight	0.92 kg (2.03 lb)
Life Time	>70,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

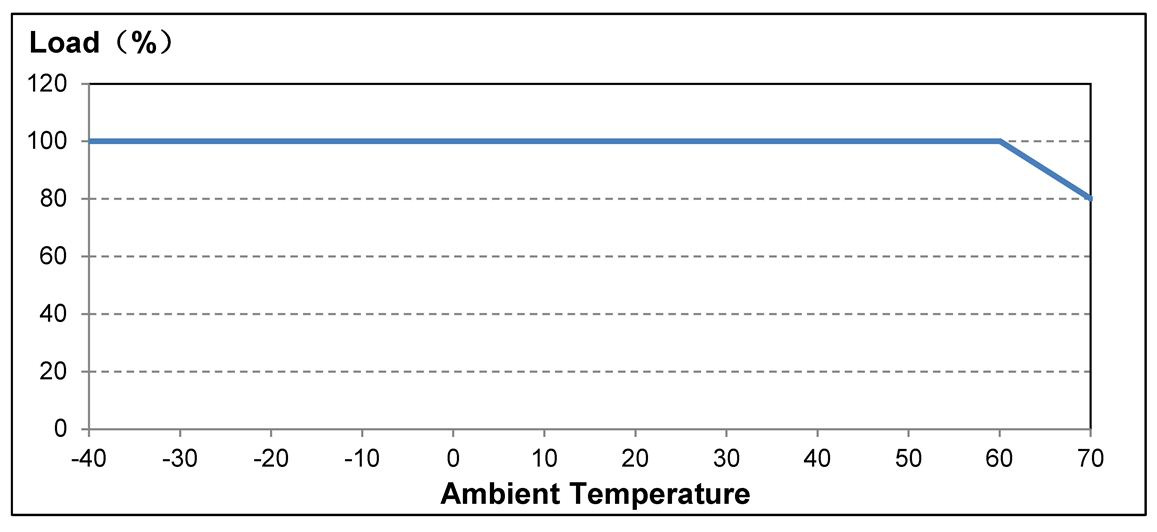

Dreating Curve

Performance Characteristics

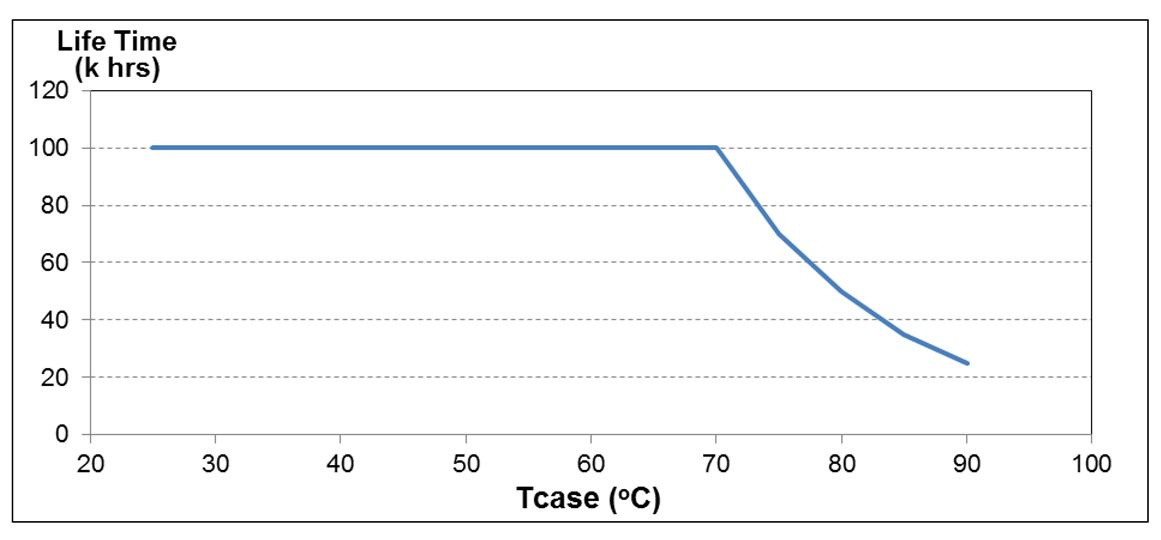

Life Time vs. Case Temperature

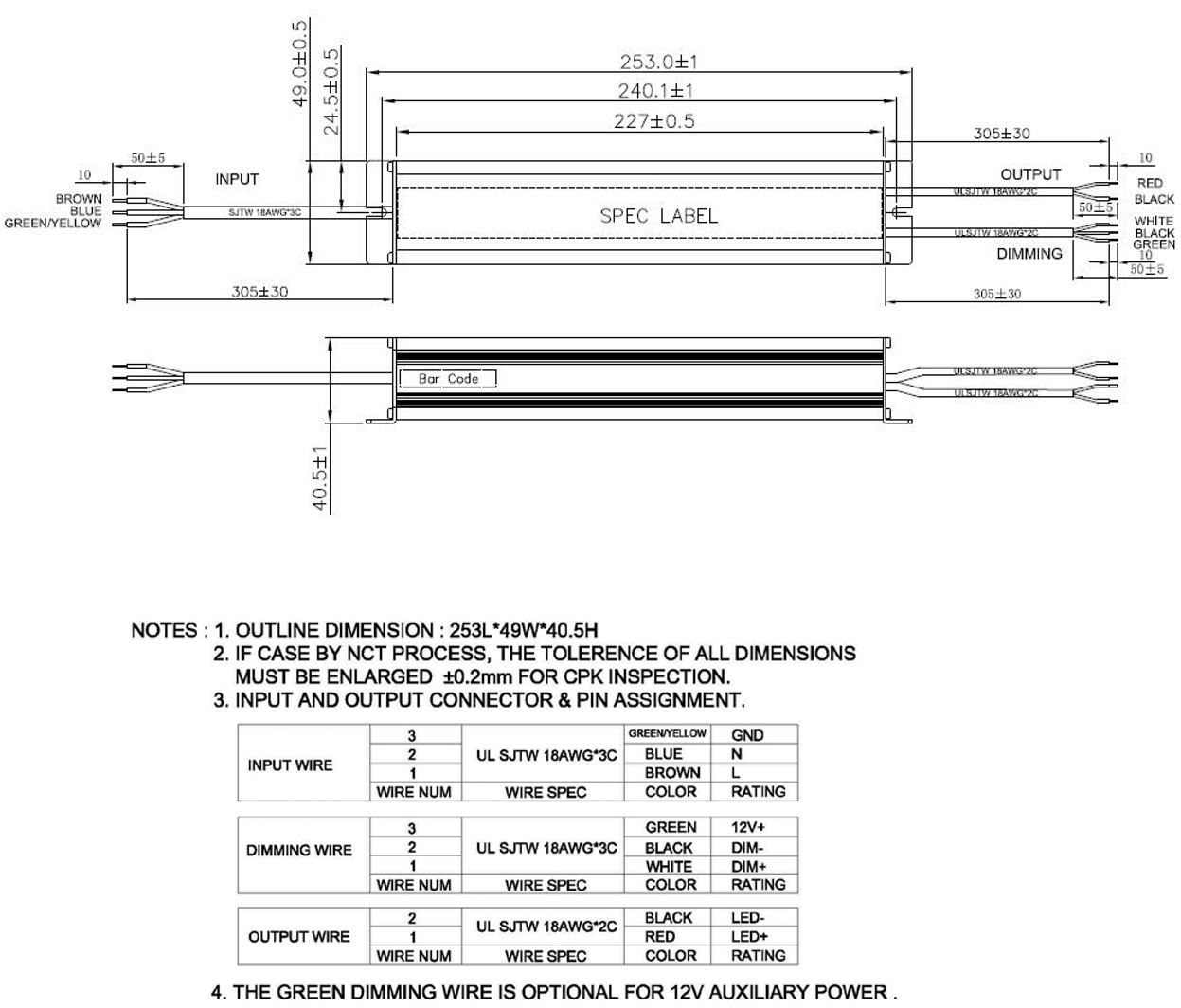

Mechanical Specification

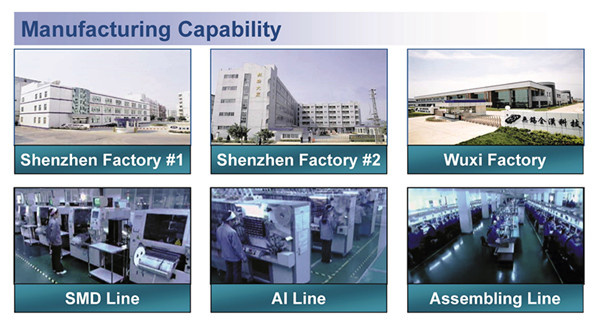

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
