| Prod Model: |
PLD120-SMR-36 |
| Output Power: |
120W |
| Dimming: |
0~10V, PWM, External Resistor, Clock |
| Output Voltage: |
23~45V |
| Output Current: |
3.3A |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
108~305VAC |
| Pack Sealing Size: |
227X49X40.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

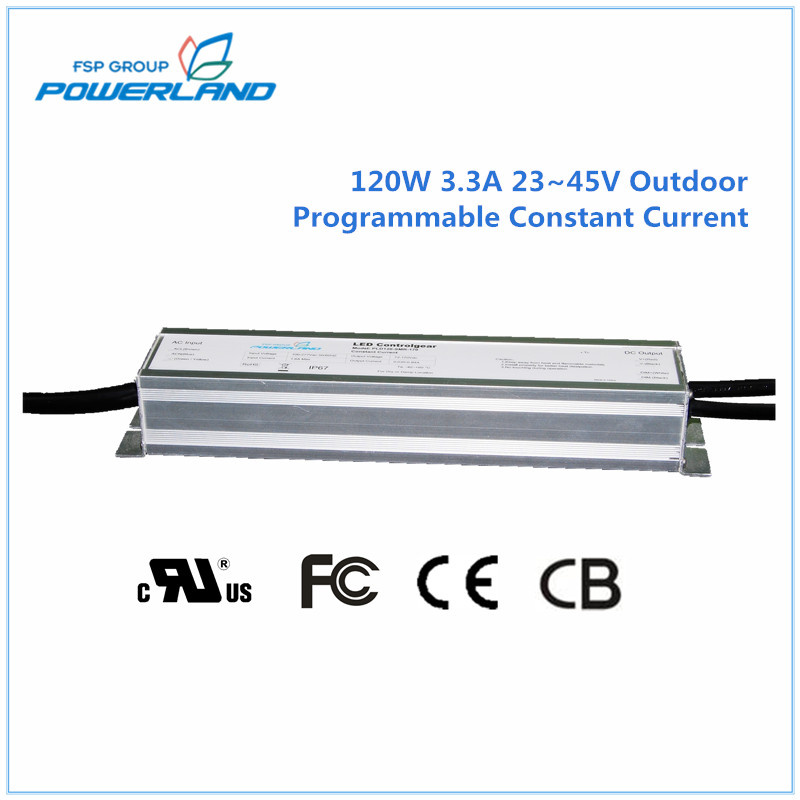

120W 3.3A 23~45V Outdoor Programmable Constant Current Waterproof LED Driver
PLD120-SMR-36 offers low-cost digital programmable drivers with wide-range adjustable output current and 90~305Vac universal input,together with 12V/20mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 3.3A, and designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.
Applications
Cost-effective outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels
Features
Ultra-deep dimming dowm to 0.5% compatible with DMX
12V/20mA auxiliary output(optional)
Output current programmable
> 70,000 hours lifetime at 75oC Tcase
> 7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current output
Universal input voltage: 108~305Vac
Compatible with 0-10V, PWM, external resistor, clock dimming
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 2kV, L/NGND 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications | Model | PLD120-SMR-36 |
Output Voltage | 23~45V |
Max Output Current | 3.3A |
| Output AUX Power Voltage (Optional) | 12V |
| Output AUX Power Current (Optional) | 0-20mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, DMX |
Current Programmable
| Yes |
Output Power | 120W |
Max. Current Ripple | 350mA |
Voltage Range | 90~305Vac |
Frequency Range | 47~63Hz |
Max. Input Current @ 230Vac | 1.6A |
Max. Input Power | 140W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 90% |
Max. Open Circuit Voltage | 63V |
THD | <20% @ 100-277Vac & 80~100% full load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet |
Working Temperature | -40~+70oC |
Max. Case Temperature | 90oC |
Surge Protection | L-N 4kV, L/N-Earth 4kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 227x49x40.5 mm (8.94x1.93x1.59 inch) |
Mounting Length | 240 mm (9.45 inch) |
Overall Length | 253 mm (9.96 inch) |
Weight | 0.92 kg (2.03 lb) |
Life Time | >70,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

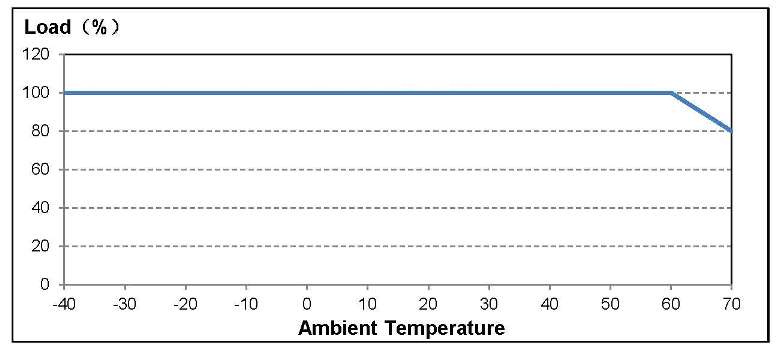

Derating Curve
Electrical Specifications

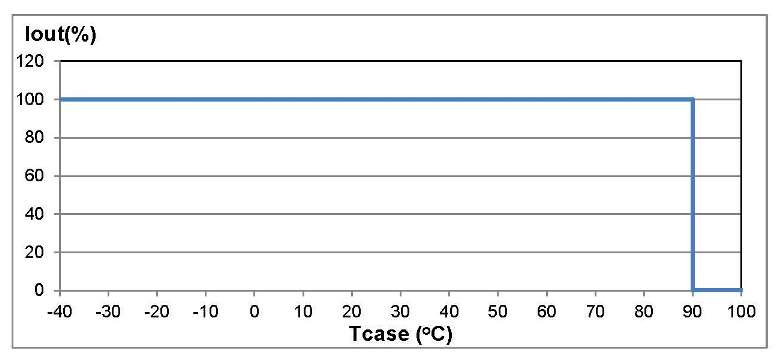

Output Current VS. Case Temperature (with ±5oC Tolerance)
Electrical Specifications

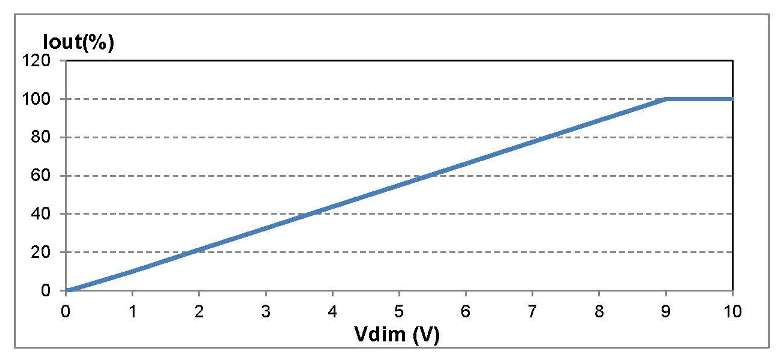

Output Current VS. 0(0.05)-10V Dimming Control Voltage
Performance Characteristics

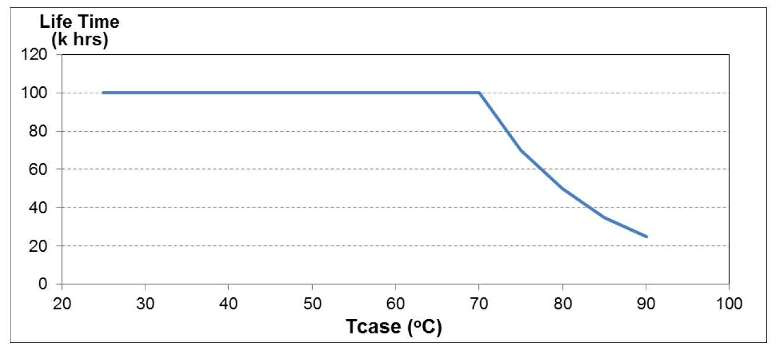

Life Time vs. Case Temperature
Performance Characteristics

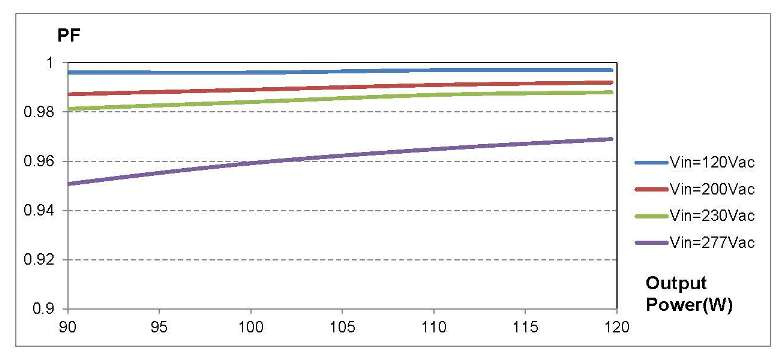

Power Factor VS. Output Power

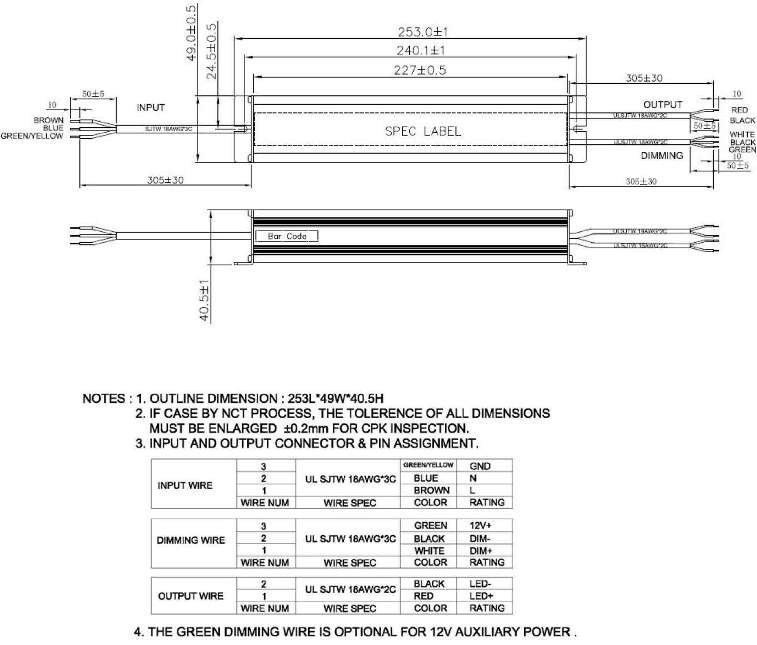

Mechanical Specification
