120W 36V Outdoor Programmable Constant Voltage Waterproof LED Driver

Name: 120W 36V Outdoor Programmable Constant Voltage Waterproof LED Driver
Brand: all-electronics-online.com
SKU: 804314655
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	US $ 19.57-31.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD120-SMR-36
Output Power:	120W
Dimming:	0~10V, PWM, External Resistor, Clock
Output Voltage:	36V
Output Current:	0~3.3A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	230X49X40.5 mm
Brand:	Fsp-Powerland

Product Description

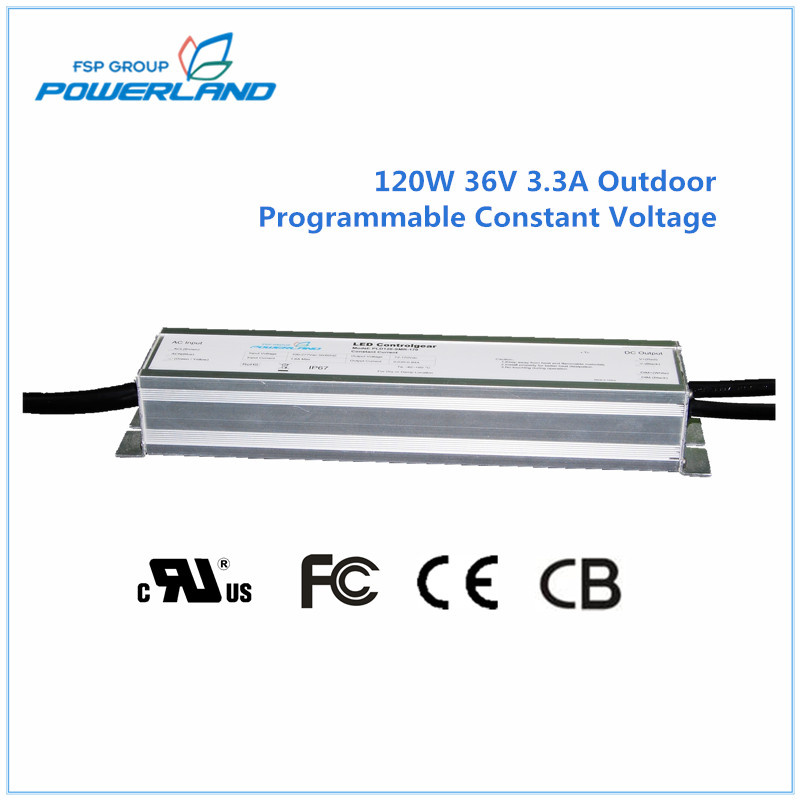

120W 36V Outdoor Programmable Constant Voltage Waterproof LED Driver

PLD120-SMR-36 offers low-cost digital programmable constant voltage drivers with wide adjustable range, together with 12V/20mA auxiliary output (optional) for smart lighting.

The output voltage of this series are programmable up to 36V.

Applications
Cost-effective outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panels

Features
12V/20mA auxiliary output(optional)
Output voltage programmable
> 70,000 hours lifetime at 75oC Tcase

> 7 years warranty at 75oC Tcase
IP67 ingress protection

Min. operating temperature @ -40oC
Constant voltage output
Universal input voltage: 108~305Vac

Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13

Surge voltage rating: L-N 4kV, L/NGND 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection

Electrical Specifications

Model	PLD120-SMR-36
Output Voltage	36V
Output Current	0~3.3A
Output AUX Power Voltage (Optional)	12V
Output AUX Power Current (Optional)	0-20mA
Programmed Voltage	30~45V
Output Power	120W
Max. Voltage Ripple	±0.5%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.6A
Max. Input Power	140W
Power Factor	>0.97 @ 115Vac & 80~100% full load, >0.90 @ 277Vac & 80~100% full load
Efficiency	90%
Max. Open Circuit Voltage	63V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp & Wet
Working Temperature	-40~+70oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	227x49x40.5 mm (8.94x1.93x1.59 inch)
Mounting Length	240 mm (9.45 inch)
Overall Length	253 mm (9.96 inch)
Weight	0.92 kg (2.03 lb)
Life Time	>70,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

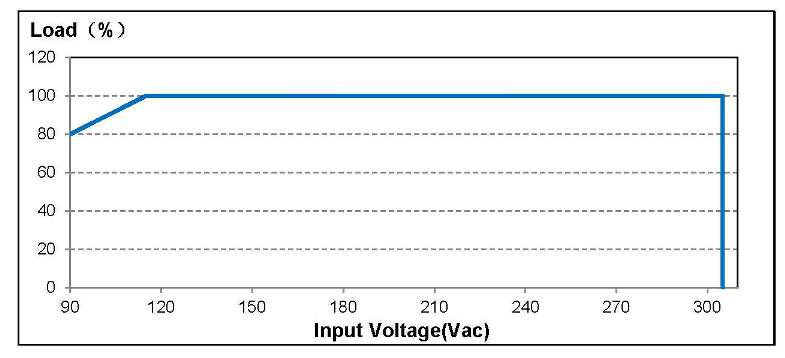

Static Characteristics

Electrical Specifications

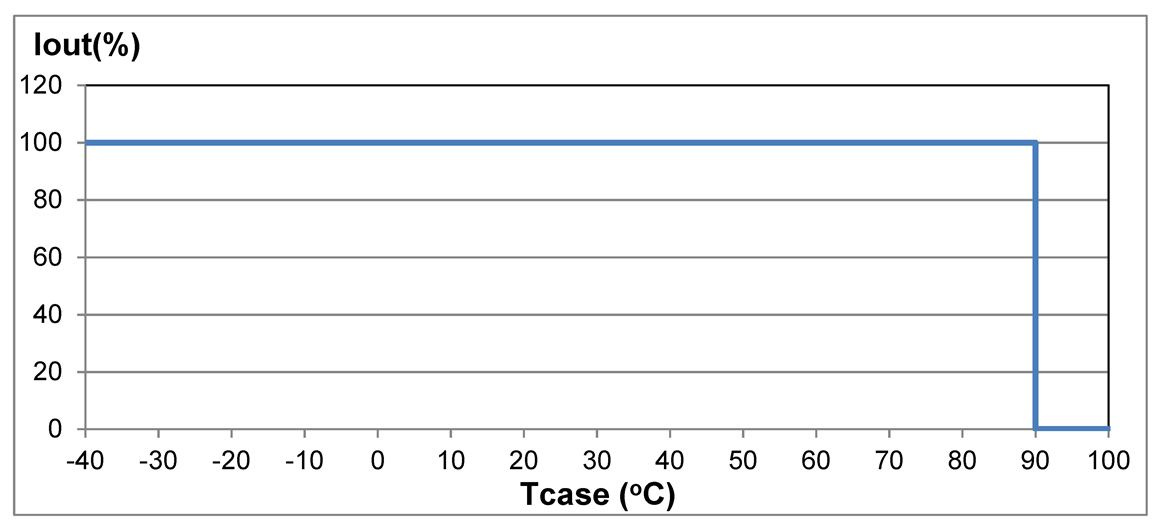

Output Current vs. Case Temperature (with ±5oC Tolerance)

Electrical Specifications

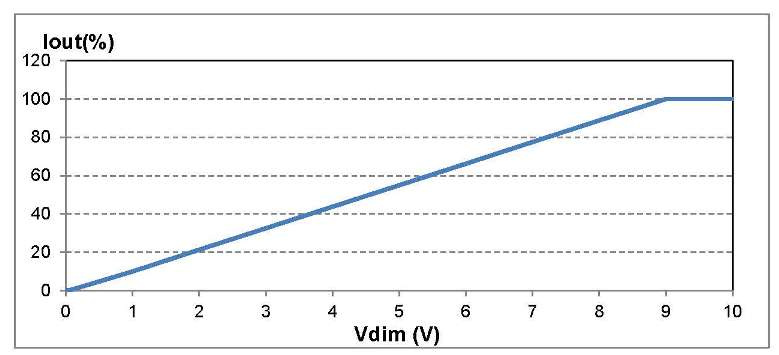

Output Current VS. 0(0.05)-10V Dimming Control Voltage

Performance Characteristics

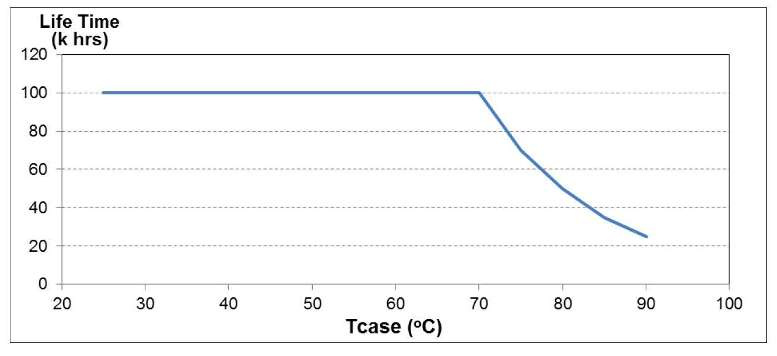

Life Time VS. Case Temperature

Performance Characteristics

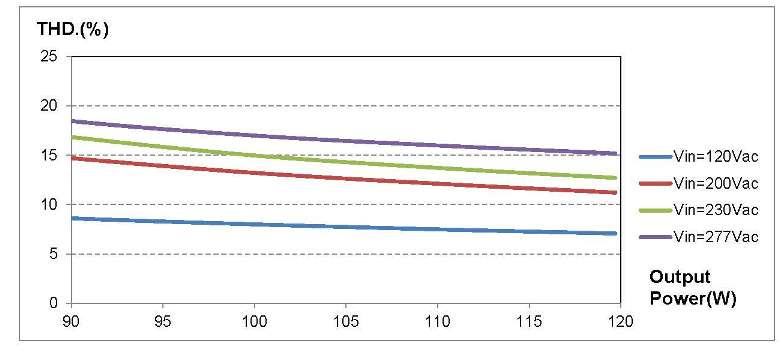

THD VS. Output Power
