| Prod Model: |
PLD120-SMR |
| Output Power: |
120W |
| Dimming: |
0~10V, PWM, External Resistor, Clock |
| Output Voltage: |
12~170V |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
227X49X40.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

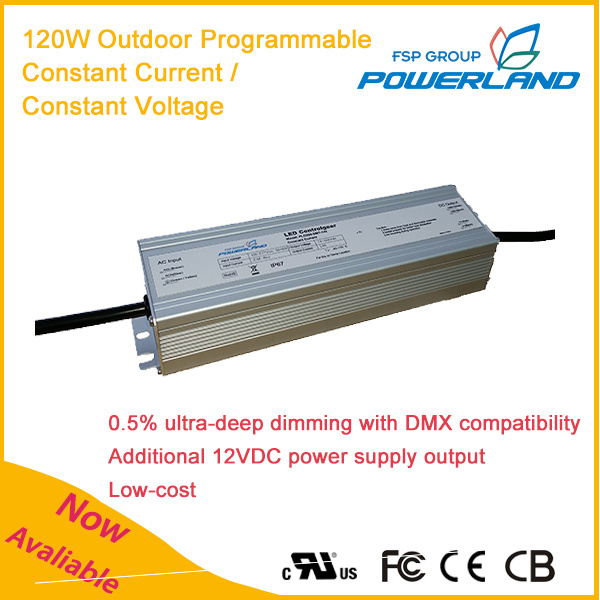

120W Outdoor Programmable Dimmable Constant Current Waterproof LED Power Supply
Powerland's PLD120-SMR series offers low-cost digital programmable drivers with wide-range adjustable output current ,together with 12V/20mA auxiliary output (optional) for smart lighting.
The output current of this series are programmable up to 0.84/1.26/1.68/2.5/3.3/5.0A, and designed for 0(0.05V)-10V/PWM/Rset/Clock /DMX ultra-deep dimming applications.
ApplicationsCost-effective outdoor & indoor LED lights
LED lights with flexible current settings
Street lights, high bay and low bay lights, LED panelsFeaturesUltra-deep dimming dowm to 0.5% compatible with DMX
12V/20mA auxiliary output(optional)
Output current & output voltage programmable
>70,000 hours lifetime at 75oC Tcase
>7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40oC
Constant current & constant voltage output
Universal input voltage: 108~305VacOutput current & output voltage programmable
Compatible with 0(0.05)-10V, PWM, external resistor, clock dimming,DMX
Universal input voltage: 90~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit Protection
SpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 120W | 12V
…
170V | 0.84A
…
5.0A | 90% | 90oC | 1.6A | 140W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load.
** Refer to Page 2 for detailed specifications for this series of LED drivers.
Electrical Specifications| Model | PLD120-SMR-24 | PLD120-SMR-36 | PLD120-SMR-48 | PLD120-SMR-86 | PLD120-SMR-114 | PLD120-SMR-170 |
Output Voltage | 12~30V | 23~45V | 29~58.8V | 35~86V | 47~114V | 72~170V |
Output Current | 5A | 3.3A | 2.5A | 1.68A | 1.26A | 0.84A |
| Output AUX Power Voltage (Optional) | 12V | 12V | 12V | 12V | 12V | 12V |
| Output AUX Power Current (Optional) | 0-20mA | 0-20mA | 0-20mA | 0-20mA | 0-20mA | 0-20mA |
Dimming
| 0~10V, PWM, External Resistor, Clock |
Current Programmable
| Yes |
Output Power | 120W | 120W | 120W | 120W | 120W | 120W |
Max. Current Ripple | 500mA | 350mA | 250mA | 180mA | 150mA | 100mA |
| Max. Voltage Ripple | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 1.6A | 1.6A | 1.6A | 1.6A | 1.6A | 1.6A |
Max. Input Power | 140W | 140W | 140W | 140W | 140W | 140W |
Power Factor | >0.97 @ 115Vac & 80~100% full load, >0.90 @ 277Vac & 80~100% full load |
Efficiency | 90% | 90% | 90% | 90% | 90% | 90% |
Max. Open Circuit Voltage | 50V | 63V | 73V | 100V | 148V | 200V |
THD | <20% @ 100-277Vac & 80~100% full load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet |
Working Temperature | -40~+70oC |
Max. Case Temperature | 90oC |
Surge Protection | L-N 4kV, L/N-Earth 4kV |
Agency Approbations | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 227x49x40.5 mm (8.94x1.93x1.59 inch) |
Mounting Length | 240 mm (9.45 inch) |
Overall Length | 253 mm (9.96 inch) |
Weight | 0.92 kg (2.03 lb) |
Life Time | >70,000 hours @ full load, 75oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

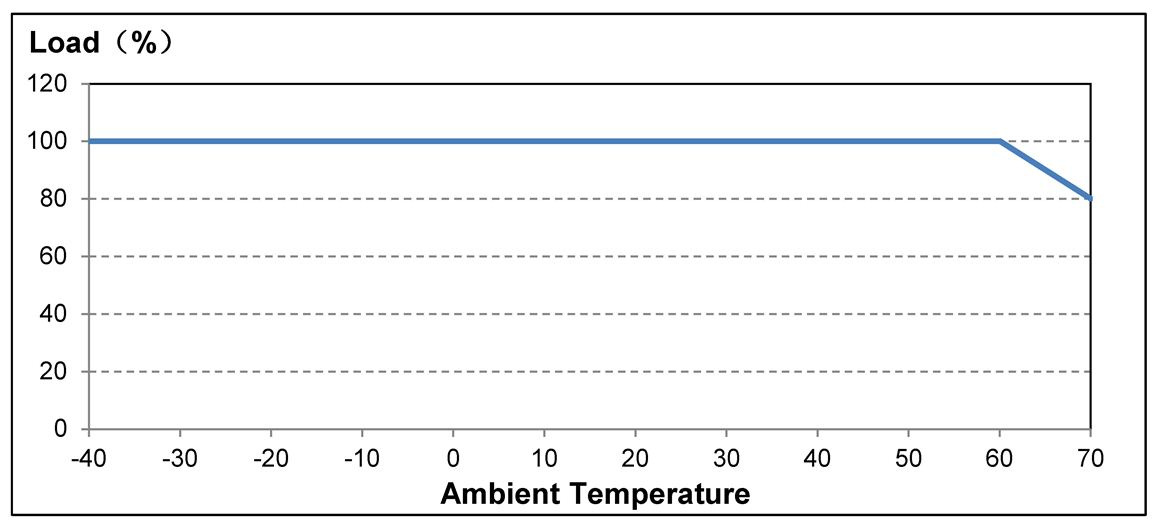

Dreating Curve
Electrical Specifications

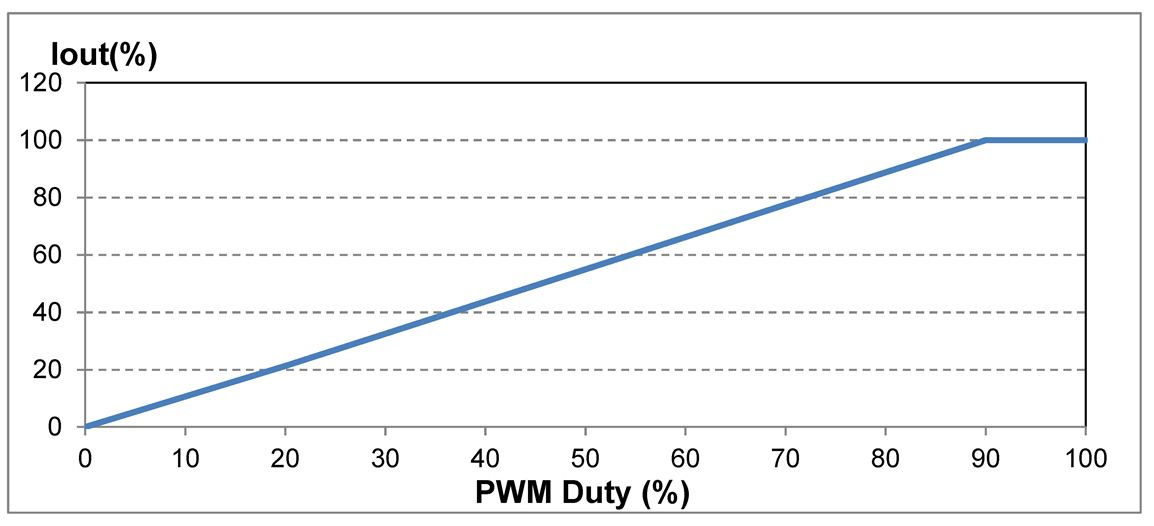

Output Current VS. PWM Dimming Duty Cycle
Performance Characteristics

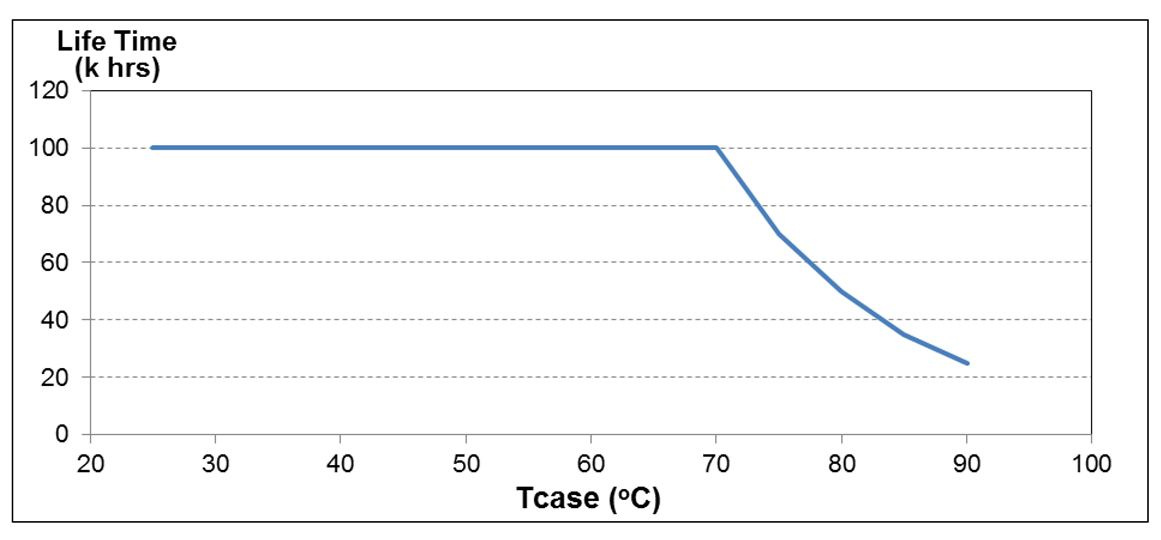

Life Time vs. Case Temperature
Performance Characteristics

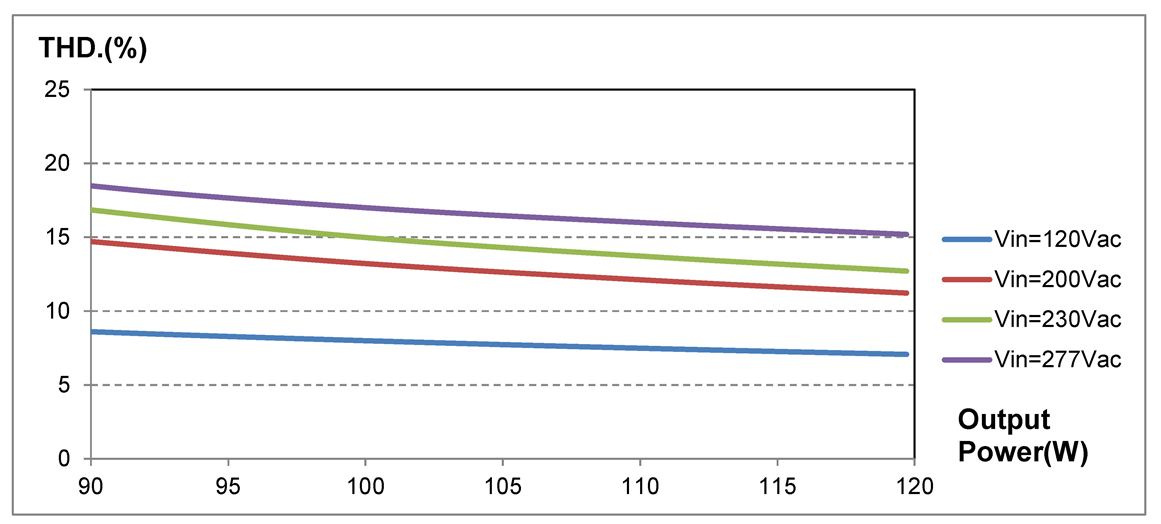

THD vs. Output Power

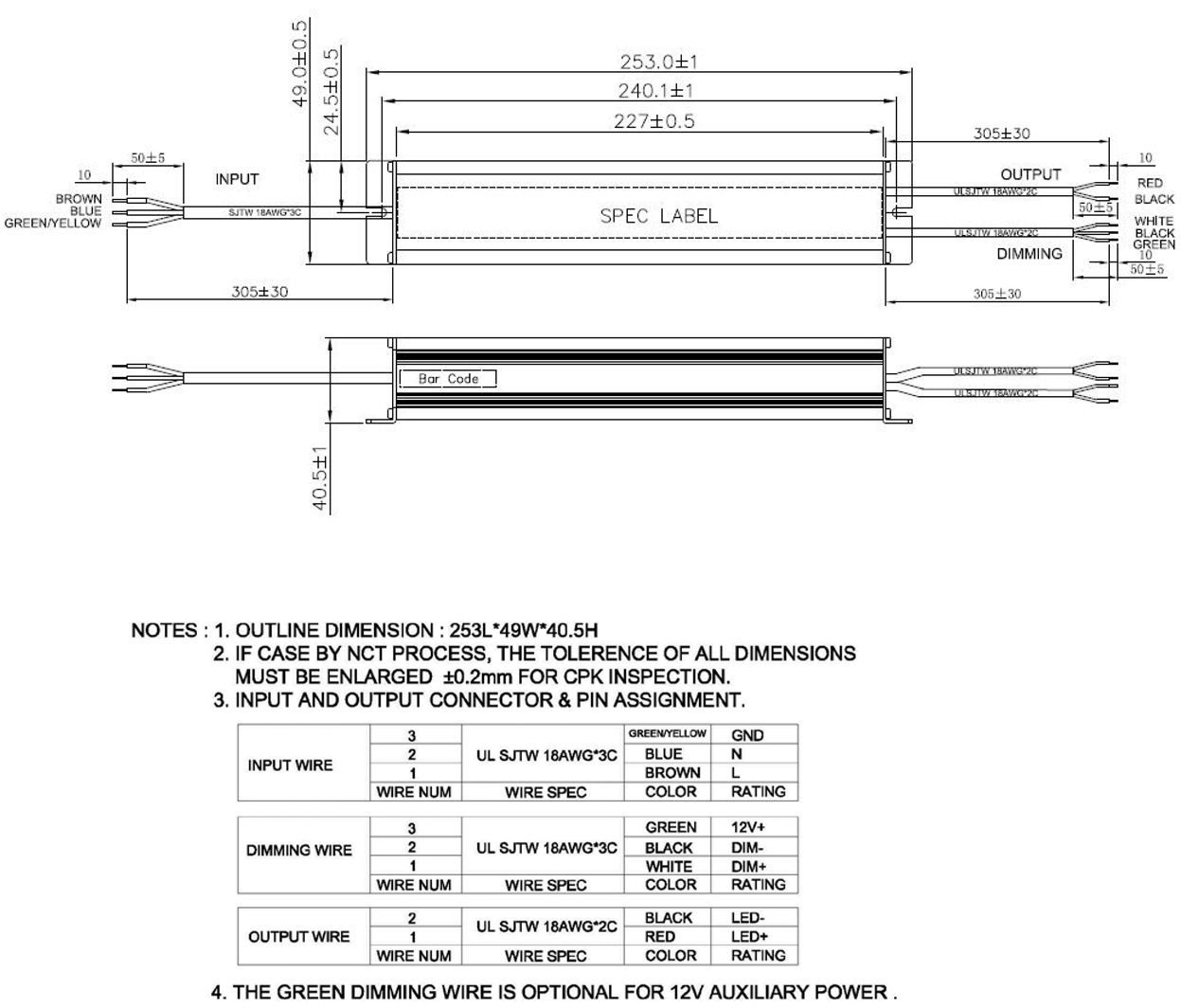

Mechanical Specification
