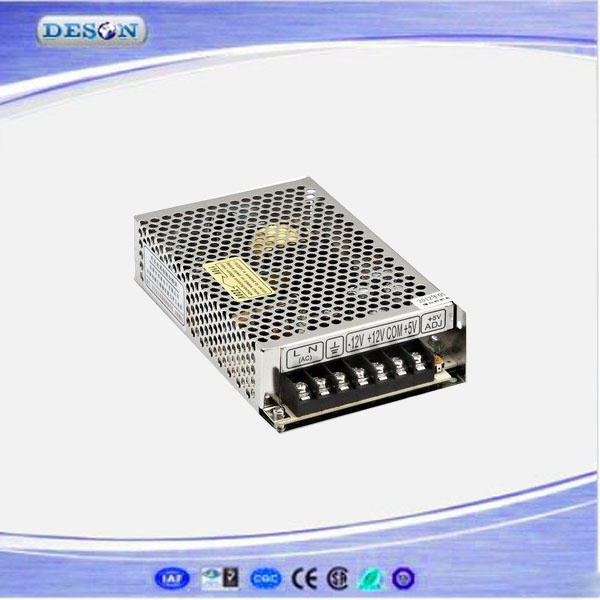

120W Tripe Output Switch Power Supply

Prod Model:	T-120
Power:	120W
Input:	85 ~ 132VAC / 170 ~ 264VAC Selected by Switch 240
Output:	5V/12V/24V
Size:	129X97X35mm
Weight:	0.6kgs
Output Type:	Triple
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	120W
Brand:	Deson
Energy Transmission:	Switch Power Supply

Product Description

120W Tripe Output Switch Power Supply

1.Universal AC Input
2.Compact size, light weight.
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Triple Output Channel
7.Soft-start current can reduce  the AC input impact effecticly
8. 2 years warranty


Product Description


MODEL		T-120C
OUTPUT	OUTPUT NUMBER	CH1	CH2	CH3
	DCVOLTAGE	5V	15V	-15V
	RATEDCURRENT	10A	3.5A	1A
	CURRENTRANGE	2~12A	0.5-5A	0.2-1A
	RATED POWER	117.5W
	RIPPLE&NOISENOTE.2	80MVP-P	150mVp-p	150mVp-p
	VOLTAGEADJ.RANGE	CH1: 4.75~5.5V
	VOLTAGETOLERANCENOTE.3	±2.0%	+10,-5%	+10,-5%
	LINEREGULATION	±0.5%	±1.0%	±1.0%
	LOADREGULATION	±0.5%	±6.0%	±6.0%
	SETUP.RISEHOLD.TIME	800ms,20ms,20ms/230VAC ,1600ms, 20 ms, 12ms/115VAC  at full load
INPUT	VOLTAGERANGE	88~132VAC/176~264VAC selected by switch 240-370vdc
	FREQUENCYRANGE	47~63HZ
	EFFICIENCY	76%
	AC CURRENT	2.8a/115vac    1.6a/230vac
	INRUSH CURRENT	Cold start 35A
	LEAKAGECURRENT	<3.5mA/240VAC
PROTECTION	OVERLOAD	105~150%rated outputpower
		Protection typeHiccup mode,recovers automatically after fault condition is removed
	OVER VOLTAGE	CH1: 5.75~6.75VDC
		Protection typeShut odown o/p voltage,re-power on to recover
ENVIRONMENT	WORKINGTIMP	-10~+60
	WORKINGHUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-20~+85 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~45)
	VIBRATION	10~500HZ,2G10min/1cycle period for 60 min each alongX,Y,Zaxes
SAFETY&EMC	SAFETYSTANDARDS	UL60950-1, TUV EN60950-1 Approved
	WITHSTAND VOLTAGE	1/P-0/P:3KVAC 1/P-FG:1.5KVAC 0/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	1/P-0/P,1/P-FG,0/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11 ENV50204,EN50204,EN61000-6-1 Light industry level criteriaA
QTHERS	MTBF	274.5Khrs min MIL-HDBK-217F(25)
	DIMENSION	199*110*50mm(L*W*H)
	PACKING	0.83Kg  16pcs / 14.2Kg / 0.95CUFT
