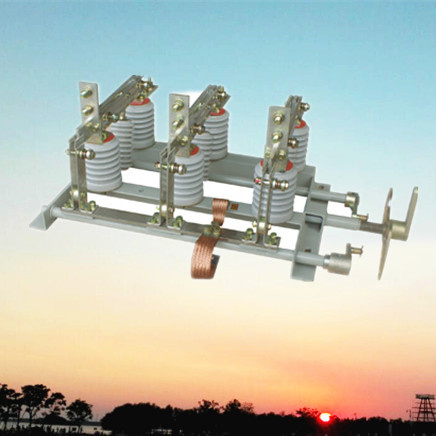

1250A 12kv Indoor High Voltage Isolating Switch with Earth (GN24-12D-1250A)

Name: 1250A 12kv Indoor High Voltage Isolating Switch with Earth (GN24-12D-1250A)
Brand: all-electronics-online.com
SKU: 715239642
Availability: InStock
Rating: 4.9 (28 reviews)

Price:	US $ 88.50-269/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN24-12D-1250A
Rated Current:	1250A
Rated Voltage:	12kv
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Single Ground
Series:	Three
Run:	Plug-In
Switching Mode:	Single Throw-in
Certification:	CE
Brand:	Ymany

Product Description

Description:

The GN24-12D series 12kv indoor high voltage isolation disconnect switch for the rated voltage 10KV, the three-phase AC 50Hz indoor unit .

Structure : a, GN24-12D Q isolating switch is moving ( or static ) contact side of the ground in the form of : a combination of surgeon and ground knife on a general framework : a model for the left side of the operation ; Type 2 is the right operation ; Q type is product safety conditions , according to user requirements attached ordering charged display device .
b, GN24-12SD isolating switch to dynamic and static contact form on both sides of the ground , and the dynamic ( or static ) to the contact side of the wall bushing ; ( or both sides switch to wall bushing )Surgeon and two knives combined on the same ground frame , one of which can be individually grounded knife operation , we can also use a machine operator.

TECHNICAL SPECIFICATION

Size(mm) Current Model	400A 630A				1000A				1250A				Mounting hole spacing mm
Size(mm) Current Model	A	B	C	D	A	B	C	D	A	B	C	D	700*300
GN24-12DI	890	660	450	125	890	690	480	125	890	700	500	125
GN24-12DII	890	660	450	125	890	690	480	125	890	700	500	125
GN24-12DI	890	660	450	240	890	690	480	350	890	700	500	350
GN24-12DIIC	890	660	450	240	890	690	480	350	890	700	500	350
GN24-12DI	920	780	450	125	920	790	480	125	920	790	500	125
GN24-12DIC	920	780	450	240	920	790	480	350	920	790	500	350
