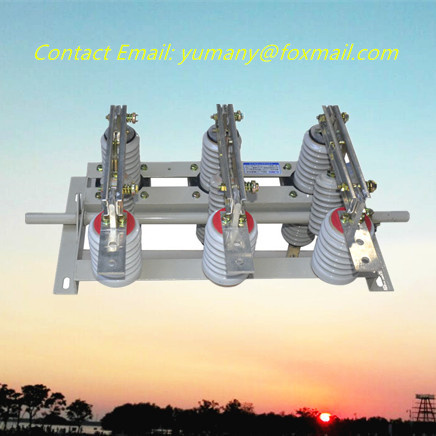

1250A Wall Type 12kv Indoor Disconnecting Switch (GN19-12/1250-31.5)

Name: 1250A Wall Type 12kv Indoor Disconnecting Switch (GN19-12/1250-31.5)
Brand: all-electronics-online.com
SKU: 715180832
Availability: InStock
Rating: 5 (28 reviews)

Price:	US $ 253-326/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN19-12/1250-31.5
Rate Short-Time Withstand Current:	31.5ka
Rated Current:	1250A
Rated Peak Withstand Current:	80ka
C:	Wall Type
OEM Or ODM:	Available
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Indoor High-voltage
Operation:	Manual
Grounding:	Un Grounded
Series:	Three
Run:	Plug-In
Switching Mode:	Single Throw-in
Certification:	CCC
Brand:	Ymany

Product Description

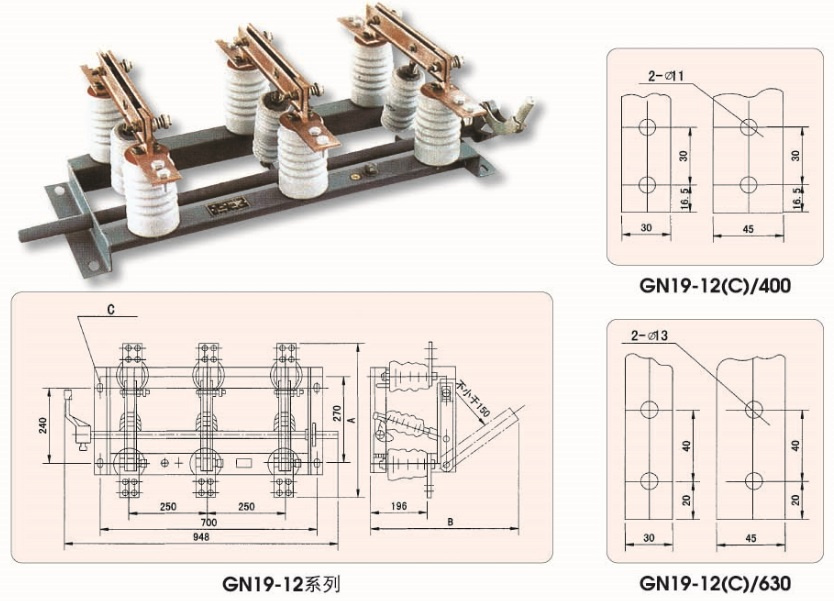

Technical Data:

Part No.	Rated oltage(KV)	Ratedcurrent(A)	Rate short-time withstand current (KA)	Rated peak withstand current (KA)
GN19-12/400-12.5	12	400	12.5	31.5
GN19-12/630-20	12	630	20	50
GN19-12/1000-31.5	12	1000	31.5	80
GN19-12/1250-12.5	12	1250	31.5	80
GN19-12C/400-12.5	12	400	12.5	31.5
GN19-12C/630-20	12	630	20	50
GN19-12C/1000-31.5	12	1000	31.5	80
GN19-12C/1250-31.5	12	1250	31.5	80

Service conditions:

1)the altitude:1000-3000M

2)the ambient temperature:-30°C-+40°C

3)the relative humidity of air:monthly≤90%,daily≤95%

4)the wind pressure:≤700PA(with speed 34m/s)

5)ampitude:earthquake degree 8

6)Environment degree: degree

7)can not be use on the condition of the danger of fire and blast,heavy pollution,chemical etching,strong shake etc.

Feature:
GN19-12(C) series isolate switch(indoor),used for in the three-phhase AC 50Hz , rated voltage 10-12KV power system, comply with CS6-1 type manual operation mechanism which can be used for opening and closing loading current overloading current and short-circuit.Some type can also be used at heavy pollution or high altitude area.
