1250V Box Type Metallized Polypropylene Film Capacitor Cbb28
Price: |
US $ 0.0205/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
10000/Piece |
Pay Type: |
T/T |
Prod Model: |
TMCF17 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pitch: |
15mm |
Type: |
Polypropylene Capacitor |
Application: |
General Purpose |
Package Type: |
Through Hole |
Capacitance: |
0.001 to 0.068UF |
Electrolyte: |
Polypropylene Film |
Tuning: |
Polypropylene Film |
Filter: |
Polypropylene Film |
Product Description

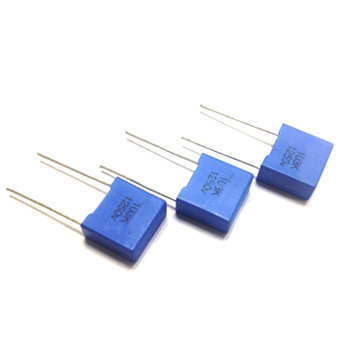

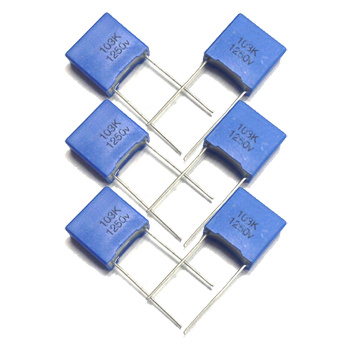

- 1250V Box Type Metallized Polypropylene Film Capacitor Cbb28
-
- Features:
- Box-type provides identical outer appearance
- Very low loss at high frequency and suitable for high current
- High-insulation resistance and long lifespan due to self healing effect
- With standing 2.5kV impulse voltage and class X2
- As an across the line type noise suppression capacitor
- Suitable for AC purpose
- Non-inductively wound with metalized polypropylene film

- Specifications:
Reference standard | GB/t14472-1998 (1CE60384-14) |
Climatic category | 40, 100 and 21 |
Rated voltage | 1250V/1600V |
Capacitance range | 0.001 to 0.068uF |
Capacitance tolerance | ±5 (J), 10 (K) and 20% (M) |
Voltage resistance | 4.3Vr (5 seconds) |
Dissipation factor | ≤0.15% CR≤1.0μF ≤0.3% CR: 1.0μF (20°C, 10kHz) |
Insulation resistance | ≥30,000 seconds (CR ≤0.33°F) ≥10,000 seconds (CR ≥0.33°F) |
Product Certifications:
- Certificate Standard: ∪FL,Certificate Number: 104640001,Issue Date: 30-Jun-2004 Certification Agent: Underwriters Laboratories Inc
- Certificate Standard: +S,Certificate Number: 119854Issue Date: 08-Jul-2004 ,Certification Agent: +S Authorization
- Certificate Standard: SGSCertificate Number: GZSCR041248032/LP.Issue Date: 24-Dec-2004 Certification Agent: SGS -CSTC LTD
- Certificate Standard: RoHSCertificate Number: CQC06130017473Issue Date: 08-Sep-2006 Expiry Date: 07-Sep-2007 Certification Agent: China Quality Certification Centre
Established in 1998, and mainly engaged in manufacturing, researching & developing, and dealing in various capacitor, Shenzhen Topmay Electronic Co., Ltd. is an industrial enterprise with independent corporate entity and has its headquarters located at the flourishing center of Shenzhen, a city has been recognized as the frontier of China economy. After years' persistent hard work by all the companions, Topmay has now developed to be a famous electronic company that promotes very quickly with the most advanced technology.
Topmay has large factories by joint venture. Located in NanTong city. Years' continuous development now provides us with standard workshop of 12, 000 square meters, 6 production lines and 862 employees.
Presently, Topmay products mainly include the following products:
The whole series capacitors Film capacitor, Ceramic capacitor, Tantalum capacitor, Aluminum Electrolytic Capacitor, and etc.
Topmay holds an idea that the products quality is the life of a company. In order to serve our customers better, and to enhance the products grade, Topmay has invested a lot to the application of kinds of international system and quality certifications, and have achieved the following: ISO9001: 2000, ISO14001, Greatwall, CE, SA, UL, TUV, VDE, and etc. Topmay insist on a tenet that people should be oriented, efficiency is the priority, quality should be emphasized, and credit is the uppermost. And we try our best to exploit and to innovate, and keep improving our production technology. So now we gradually grow up to be an outstanding one in our industry. Topmay products are of numerous varieties, compete species, super quality, competitive price and stable function, and all of their indexes have reached the international advanced level.
Topmay takes marketing as the key procedure of the company's entire development. One after another, we attend many global electronics fairs that take place in Munich, Hong Kong, Shanghai, Guangzhou, and Shenzhen. Meanwhile, we get going kinds of driving publication on the well-known B2B websites, such as EbigChina, Made-in-China. com, Globalsources and etc. All these have surely afforded us a good result, a profound influence, and a continuously expanded clients group. At present, Topmay's business primarily concentrates abroad, more than 65%'s export. Because of the super-quality products, the eminent business reputation, the omnibearing technique service and competitive prices, we have established a stable relationship of good cooperation with overseas customers. Now our products have been sold to many distant places, such as USA, Canada, Brazil, Germany, England, France, Spain, Turkey, Russia, Poland, Arabia, Bulgaria, Korean, Malaysia, India, HK, Taiwan, and etc. Namely, a large scope of overseas market has been successfully occupied.
