125A 6ka Miniature Circuit Breaker 80A MCB

Prod Model:	CAMH-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current In:	63,80,100,125A
Manufacturer:	Original Factory
Company Size:	Over 2500 Stuff
Company Credit Rate:	AAA
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CCC
Installation:	DIN Rail
Poles Number:	1,2,3,4

Product Description

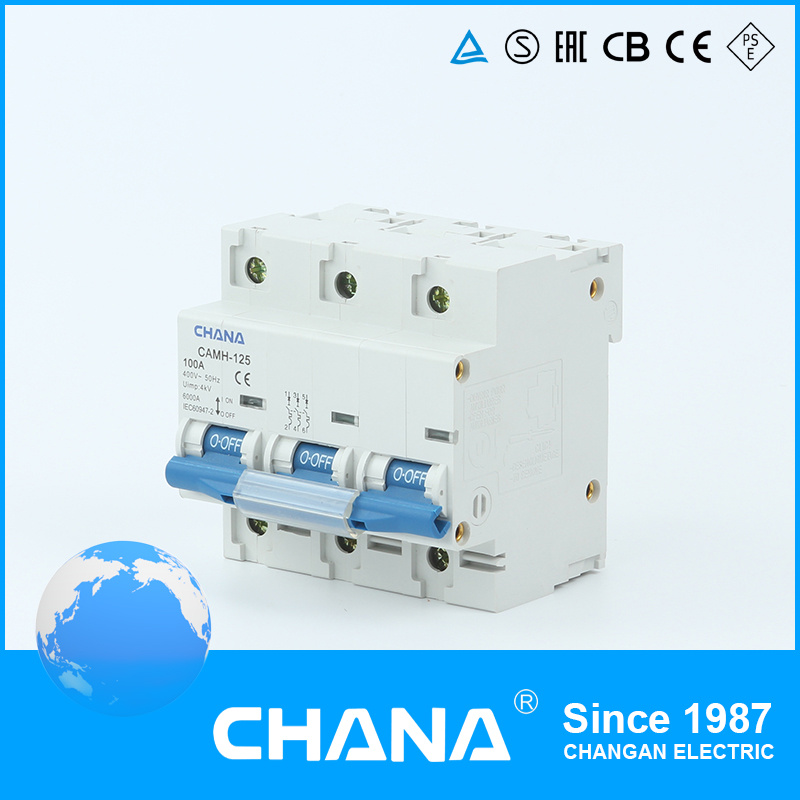

CAMH-125 MCB Mini Circuit Breaker

1. Specification


Standard	IEC60947-2
Electrical Feature
Rated current In	A	63, 80, 100, 125
Poles	P	1,2,3,4
Rated voltage Ue	V	240/415
Insulation voltage Ui	V	500
Rated frequency	Hz	50/60
Rated breaking capacity	A	6000
Energy limiting class		3
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2000
Pollution degree		2
Thermo-magnetic release characteristic		C,D
Mechanical Feature
Electrical life		4000
Mechanical life		10000
Contact position indicator		Yes
Protection degree		IP20
Reference temperature for setting of thermal element	º C	30
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.0 N*m 22 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom
Conbination with Accessory
Combination with accessories	Auxiliary contact, Shunt release, Under voltage release, Alarm contact

2. Dimension(mm)



3. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.

4. RFQ

Q 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.

Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.

Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.
