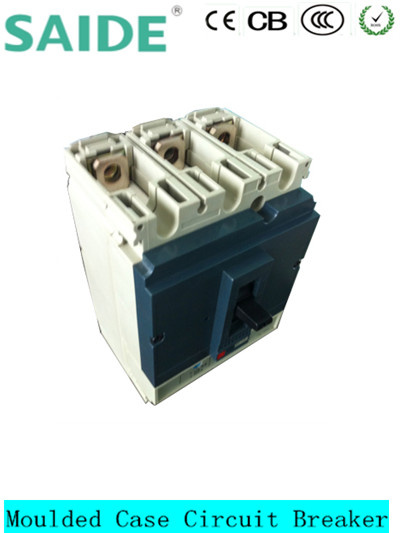

125AMP MCCB Moulded Case Circuit Breaker (SDM6)

Name: 125AMP MCCB Moulded Case Circuit Breaker (SDM6)
Brand: all-electronics-online.com
SKU: 827115495
Availability: InStock
Rating: 4.7 (51 reviews)

Price:	US $ 10-12/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SDM6
Rated Current:	32-160A
Rated Voltage:	690V
Uimp:	6kv
ICU:	35-70ka
Ics:	75%ICU
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	CCC

Product Description

3 pole 4 pole 80A-1600A Telemecanique Electrical EZD Ns NSX MCCB Merlin Gerin MCCB Moulded Case Circuit Breaker

NS(NSX) series Mouled case circuit breaker (following call the breaker) is one new type breaker which this company adopts international advanced design. manufacture technology to develop. The rated insulating voltage is 950V, suitable for AC 50Hz (60Hz), rated working voltage 690V and under it, rated working current is 100A~1250A of circuit. Using in distributing electric energy, frequent closing and breaking in the normal cases and protecting when circuit and installation are overload, short circuit and lacking voltage.

catalog

Our date

Model		SDM6-100	SDM6ST-100
Phase		3P,4P
Structural max rated current Inm(A)		100

Rated current In(A)		12.5,16,20,25,32,40,50,63,80,100	40,100

Rated voltage Ue(V)		AC400,AC690
Rated insulating voltage Ui(V)		690

Rated ultimate voltage Uimp(kV)		6
Rated ultimate short-circuit breaking capacity Icu(kA)		Model N:35
		Model H:70
Rated working short-circuit breaking capacity Ics(kA)		Model N:18
		Model H:Ics=75%Icu
Application type		A
Tripping unit		thermalmagnet	intelligent
Residual current protection		with residual current protection module

working lifespan	Mechanical	8500
	Electrical	1500
operating method	manual	YES	YES
	rotatory handle	YES	YES
	electric operating	YES	YES
Install method	Fixed (front panel)	YES	YES
	Fixed (back panel)	YES	YES
	Drawable(front panel)	YES	YES
	Drawable(BACK panel)	YES	YES

Parts

Factory

Contact information

Superior quality,Serve with heart
CHINA * SAIDE ELECTRIC CO.,LTD
Address : Qiligang industrial Zone ,Liushi,Yueqing ,Zhejiang,China

joyce chen
Tel:0086-577-62755267
Phone:18657700751

Saide Electric Co., Ltd. Was founded in 1998, located in Qiligang industrial zone, Liushi. We also invested 180 million RMB to build another 26000 square meters Hi-tech industrial park in Wenzhou Oujiangkou district. With a registered capital of 50 million RMB and over 500 workers, we are now a specialized low-voltage appliance manufacturer combined research, production and sales altogether. With a contunuous development of more than ten years, we obtain mature craftsmanship, advanced equipment & self-design capability now.

We've already got approved with ISO9001, ISO14001, ISO18001 quality system, products comply with certificates such as CCC(China), TSE(Turkey), CE(Europe), CB(International), etc. With years of outstanding performance, we've been awarded titles as "Star corporation of province", "Tech innovation department", "Excellent exporting corporation", etc.

With core idea of "Top class quality, Top class service, Top class reputation", we welcome customers all over the world with open arms to build a brand-new era of low voltage appliance together.
