125kHz / 134.2kHz RFID Pet Microchip Animal Microchip
| Price: |
US $ 0.5-1/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
animal microchip |
| Working Frequency: |
125kHz ,134.2kHz |
| Chip For Option: |
Em4305 , Ntag216 |
| Protocol: |
ISO 11784/5 |
| Description: |
Read/Write |
| Application: |
Injet in Animal Body |
| Life Time: |
20 Years |
| Reading Distance: |
3- 10 Cm |
Product Description
125khz / 134.2khz RFID pet microchip animal microchip
This is a glass, cylindrical RFID tag.
Chip type : EM4200 , EM4305 , Ntag216,

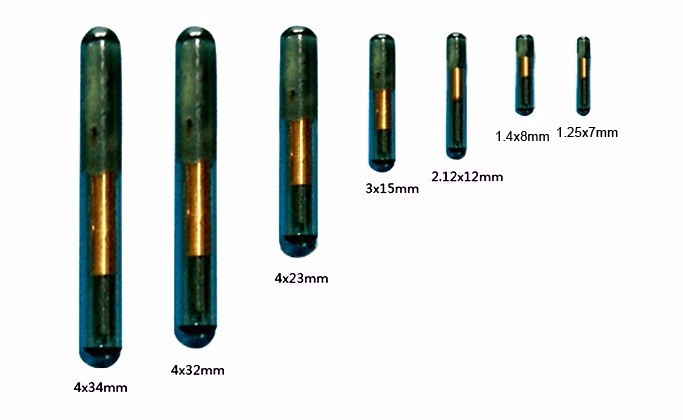

Dimension:1.25 x 7 mm, 1.4*8mm ( popular) , 1.4 x 10 mm , 2 x 8 mm , 2.12 x 12 mm ,
work temperature: -20ºC ~ +50ºC ,
Read distance : about 10 cm ,
Application Areas : Cat, dog, horse, rabbit, etc.

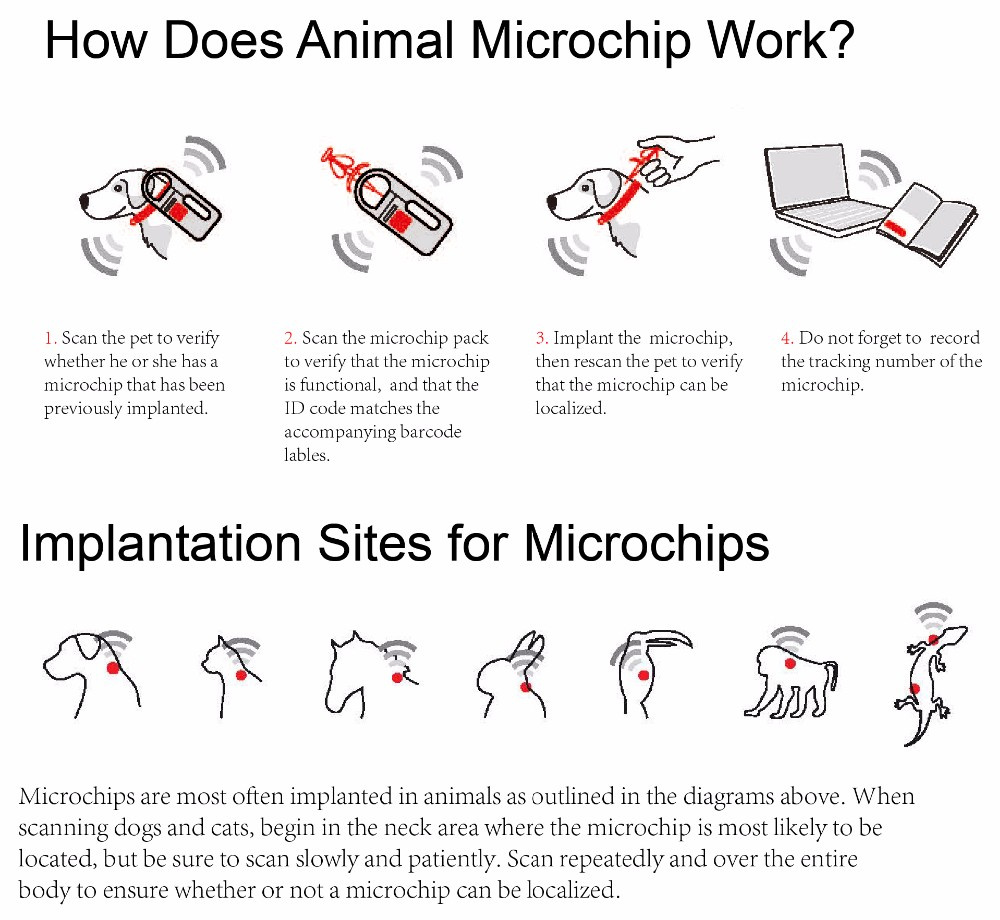

How does pet microchip work ?
No bigger than a grain of rice, a pet microchip is a radio-frequency identification transponder made up of just a few components encased within a slender capsule of bioglass, which is used extensively for implants in both humans and animals. Some microchips have anti-migration features to ensure capsules stay in place by bonding with the tissue under the animal
• A microchip's sole function is to store a unique ID number that is used to retrieve a pet parent's contact information-it differs from a Global Positioning System, which is used for tracking, and requires a power source such as a battery.
• When a microchip scanner is passed over the skin of a microchipped pet, the implanted microchip emits an RF (radio frequency) signal. The scanner reads the microchip's unique ID code. The microchip registry is called, and the registry company uses the ID number to retrieve the pet parent's contact information from the pet recovery database.
Some chips you can choose:
| Protocol | Frequency | Chip | Memory Size 1(bytes) | User Memory 2(bytes) | Max URL 3(characters) | Microchip size |
| FDX-A / FDX-B | 125khz/ 134.2khz | EM4305 | 540 | 504 | 492 | 1.25*7mm, 1.4*8mm,
1.4*10mm,
2*8mm,
2.12*12mm, 3*15mm, 4*23mm,
4*32mm, 4*34mm |
13.56mhjz
| NTAG216 | 924 | 888 | 854 | 2.12x 12mm |
Order process 1.please tell us your enquire details as following
(1) what quantity you need ,
(2) what RFID chip , tag size
(3) And which Protocal ( FDX-A or FDX-B) , Frequency (125KHZ, 134.2KHZ OR 13.56MHZ)
2. We will make quotation according to exact quantity and RFID chip.
if would like to know shipping cost , then please tell us which shipping way you will choose.
(1) ship by sea , please tell name of destination port
(2) ship by air , please tell name of airport
(3) ship by express , please tell zip code of your address
3. Price confirmed , PI will send for proceed payment.
After received of payment will arrange production and shipment to customer.
Payment way we support : L/C , T/T , PayPal , Western Union , Money Gram.
If have interest getting more detail about animal microchip , please do not hesitate to contact us.
