125mm Diameter High Precision 2500/5A Current Clamp CT

Name: 125mm Diameter High Precision 2500/5A Current Clamp CT
Brand: all-electronics-online.com
SKU: 707365772
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 250/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q125B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.5% or 1%
Ratio:	2500A/5A, 2000/5A, 1000/5A
Diameter:	125mm
Burden:	2.5va
Types:	Current Clamp CT
Output Signal:	0-5A AC
Weigt:	1.1kg
Dimension:	180mm×319mm×35mm
Output Model:	2.5m Cable
Standards:	En 61010-1, En 61010-2-032, IEC60044-1

Product Description

Q125B 125mm Diameter high precision 2500/5A current clamp ct

The model Q125B 125mm Diameter high precision 2500/5A current clamp ct can be used for a current vector for the copper bar or the power cable current on-line detection.

FEATURES
This product can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Holding wire diameter: 125mm
Dimension: 180mm×319mm×35mm
Load capacity: mA output ≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 3000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	3600A
Over voltage category	CAT III 600V
Output signal (AC current)	500mA,1A,2A,5A AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	333mV, 500mV, 1V, 5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters

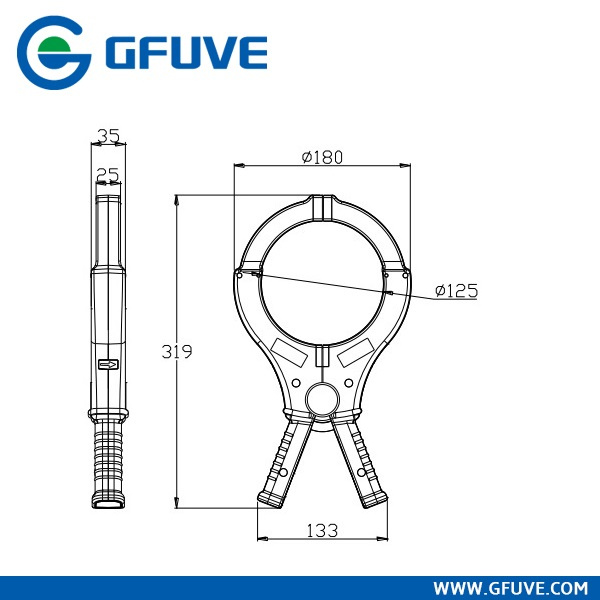

Dimensions (L x W x H) (mm)	180 x 319 x 35
Weight (g)	1100
Holding wire diameter (mm)	φ125
Max. jaw opening (mm)	125
Color	Black
