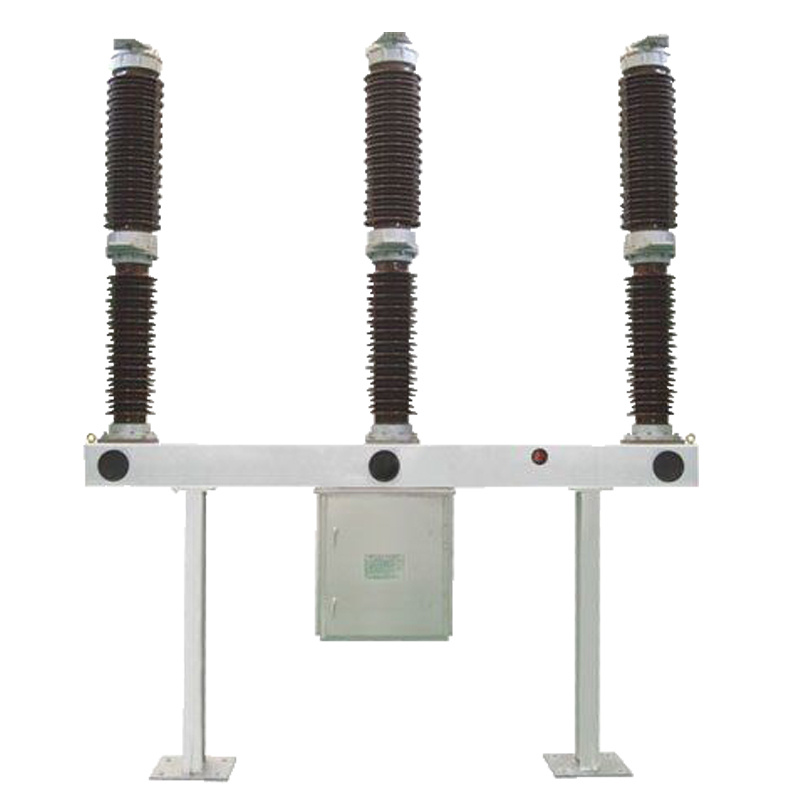

126kv Sf6 Circuit Breaker

Name: 126kv Sf6 Circuit Breaker
Brand: all-electronics-online.com
SKU: 818359665
Availability: InStock
Rating: 4.4 (116 reviews)

Price:	US $ 14000-20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LW36A-126/145
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	SF6
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Operation:	Manual & Electric & Energy-Storage Type
Structure:	Lw36A-126

Product Description

LW36-126/T3150-40 HV AC SF6 circuit breaker is an outdoor product. It is used in
electricity grids with altitudes of no more than 2000m (product designs for 3000m are available), environment temperauteres of no less than -30ºC, local pollution classes of no more than Class iV, and maximum voltage of 126kV to cut off rated currents, fault currents, or switching lines in order to implement control and protection of electricity systems. It can also be used as a connection circuit breaker.

Serial No.	Name	Unit	Value
1	Ambient temperature	ºC	-50ºC-40ºC
2	Rated voltage		126
3	Rated power frequency withstand voltage (1min)
3.1	To earth	kV	230
3.2	Across open contact	kV	230+73
4	Rated lightning impulse withstand voltage
4.1	To earth	kV	550
4.2	Across open contact	kV	550+103
5	Rated frequency	Hz	50
6	Rated value	A	3150
7	First pole to clear factor		1.5
8	Rated short-circuit breakering current (Isc)	kA	40
9	Rated short-circuit making current (peak)	kA	100/104
10	Rated hsort-time withstand current	kA	40
11	Rated peak withstand current	kA	100/104
12	Rated duration of short-circuit	s	4
13	Rated out of phase breaking current	kA	10
14	Short-line fault breaking current	kA	90%Isc,75Isc
15	Rated line charging breaking current	A	31.5
16	Rated operating sequence		o-0.3s-CO-180s-CO
17	Resistance of main contact	μΩ	≤35
18	Annual leakage of SF6 gas	%	≤0.5
19	Gas humidity content (L/L) (20ºC at handover)	L/L	≤150x10-6
20	Mechanical endurance	Times	10000
21	Radio interference level	mv	≤500
22	Creepage distance	mm	3906
23	Weight of SF6 gas filled for each CB	kg	8
24	Weight of one set of CB	kg	1700±10

Our company
SHANGHAI POWERY INDUSTRIES CO., LTD. ( SPI ) corporate group has been dealing with the interfaces in the flow of electricity ever since it was founded back in 2011. SPI's three groups - Pole Line Hardware( Tsingtao, China ),High Voltage Line Protection(Lishui, China ), Distribution Transformers( Shinseong, Korea ) - offer a unique set of brands and products. As a specialist in energy transmission and distribution, we offer our customers and business partners a range of sophisticated, future-ready products: For all voltage ranges and wherever reliable, long-lasting systems are needed for powerful energy grids. We are already well-established in all key global markets and are continuing to strengthen our brand on a worldwide scale.SPI has identified key factors that will be instrumental to its sustainabilit

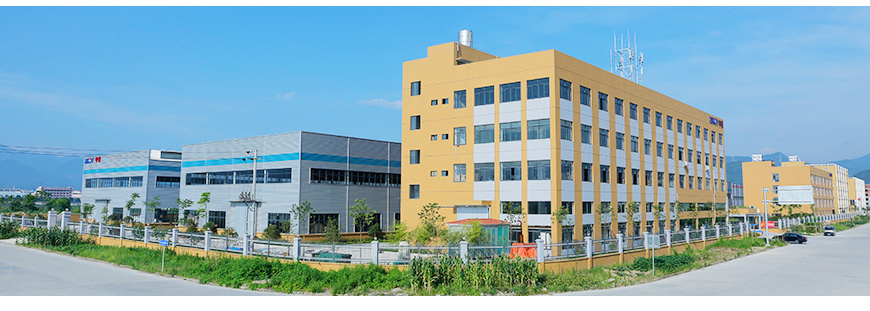

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
