12AMP Jump Starter Power Backup Battery with Maintenance-Free Operation

Prod Model:	6FM12L
Operating Temperature:	-20c~50c
Design Time:	4-8 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability Resistance of (UL94-V0)
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

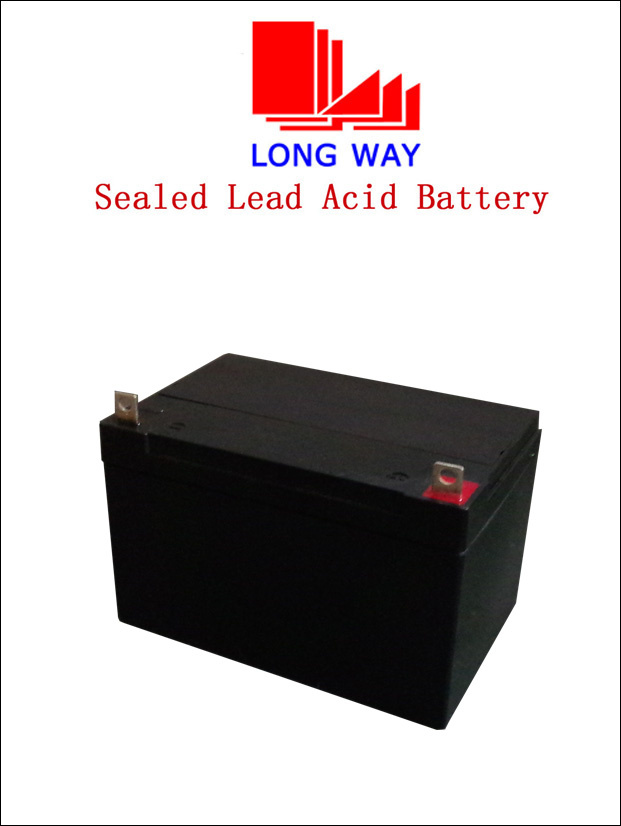

12V12L VRLA battery for car jump start

LONGWAY® Standard battery is design for a general purpose by KaiYing
Power. 6FM12 is a general purpose battery up to 5 years in star service or
more than 260 cycles at 100% discharge in cycle service. As with all
LONGWAY® batteries, all are rechargeable highly efficient, leak proof and
maintenance free.

Normal Voltage 12V
Capacity 12Ah@20Hr-rate to 1.75V per cell@25ºC
Weight Approx.(3.24±3%)kg (3.64lbs)
Maximum Discharge Current 120A(5sec)
Internal Resistance Approx. 18mΩ full charged @25ºC
Operating Temperature Range Discharge: -20ºC~60ºC
Charge: 0ºC~50ºC
Storage: -20ºC~60ºC
Nominal Operating Temperature Range25ºC±3ºC
Float Charging Voltage 13.7~13.9VDC/unit Average @25ºC
Maximum Charging Current 3.6A
Equalization and Cycle Service 14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored
for more than 6 months at 25ºC. Self-discharge ratio less than 3%
per month at 25ºC. Please charge batteries before using.
Terminal F2(0.250)
Container Material ABS(UL94-HB)
*Flammability resistance of (UL94-V0) can be available upon request
DimensionsL151*W98*H93(TH99)
LONGWAY battery used for AGM VRLA/SLA maintenance-free battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

Product Description
Lead Acid Battery (12V12AH)
1)Good quality plates grids
2)Long life
3)Low self-discharge
4)Sufficient Capacity

VRLA UPS Battery (12V12AH)
Main Features:
Model: EA12-12ah
Voltage: 12V
Capacity: 12AH(20hr)
Dimension: 151*98*95/99mm
Approx Weight: 3.68KG/PCS
Packing Detail: 6PCS/CTN
Carton Dimension: 365*197*275mm
Loading Quantities: 20'FT=5434PCS, 40'FT=10362PCS
Certificates: CE/UL/ISO9001/ISO14001
Designed life 8 year in stand-by application
Thick plates with high quality lead-tin-calcium alloy grids
High charging performace
Excell product consistency
Unique terminal design to sesure reliable sealing
Extremely low self-discharge rate
