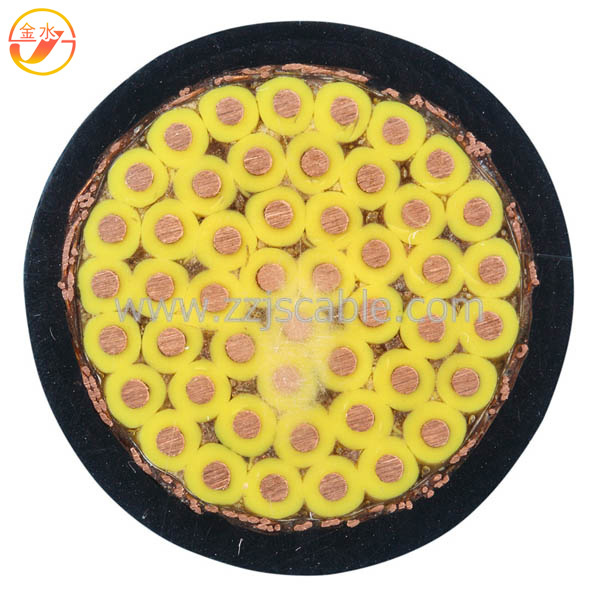

12AWG, 600 Volts Control Cable
| Price: |
US $ 0.55-4.55/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Range Of Application: |
Underground |
| Brand: |
Jinshui |
Product Description
ApplicationsStandard general purpose control cable for important control circuits in industrial plants and station control cable for utilities. Suitable for operation and interconnection of protective devices; rated circuit voltage 600 volts, recommended for operation at 75°C maximum continuous conductor temperature. For Non NEC Application Cables may be installed in open air, in ducts or conduit, or in tray or trough and direct burial.ConstructionStranded uncoated copper conductors, full color PVC or PE insulation over each conductor, two conductors flat or round, three or more conductors twisted with suitable fillers where necessary to make round, polyester or PP tape over assembly, PVC jacket overall, surface printed.StandardsNOM-063-SCFI, NMX-J-102-ANCEICEA S-73-532, NEMA WC57. UL62, Notes· Single conductor 20 mils high molecular weight polyethylene insulation and 10 mils polyvinyl chloride jacket, 600 Volt.· Color coding is ICEA Appendix E Method 1 Table E-1. Options· Flexible stranded conductors per ASTM B· Tin-coated copper conductors per ASTM B··1000V rated construction per ASTM Consult AWG for a variety of alternate constructions for specific applications.| Model | Size AWG | Number of
Conductors | Strand Class | Nominal insulation thickness: mm | Nominal jacket thickness:
mm | Nominal Cable O.D.
mm |
| JS-KVVR 5002106 | 12 | 2 | Class K | 1.2 | 1.6 | 12.7 |
| JS-KVVR 5003106 | 12 | 3 | Class K | 1.2 | 1.6 | 13.8 |
| JS-KVVR 5004106 | 12 | 4 | Class K | 1.2 | 1.6 | 15.4 |
| JS-KVVR 5005106 | 12 | 5 | Class K | 1.2 | 1.6 | 16.6 |
| JS-KVVR 5006106 | 12 | 6 | Class K | 1.2 | 1.6 | 17.6 |
| JS-KVVR 5007106 | 12 | 7 | Class K | 1.2 | 1.6 | 18.0 |
| JS-KVVR 5008106 | 12 | 8 | Class K | 1.2 | 1.6 | 18.6 |
| JS-KVVR 5009106 | 12 | 9 | Class K | 1.2 | 1.6 | 21.4 |
| JS-KVVR 50012106 | 12 | 12 | Class K | 1.2 | 1.8 | 23.7 |
| JS-KVVR 50015106 | 12 | 15 | Class K | 1.2 | 1.8 | 26.3 |
| JS-KVVR 50019106 | 12 | 19 | Class K | 1.2 | 1.8 | 27.7 |
| JS-KVVR 50025106 | 12 | 25 | Class K | 1.2 | 1.8 | 33 |
| JS-KVVR 50030106 | 12 | 30 | Class K | 1.2 | 1.8 | 34.3 |
| JS-KVVR 50037106 | 12 | 37 | Class K | 1.2 | 1.8 | 37.1 |
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
