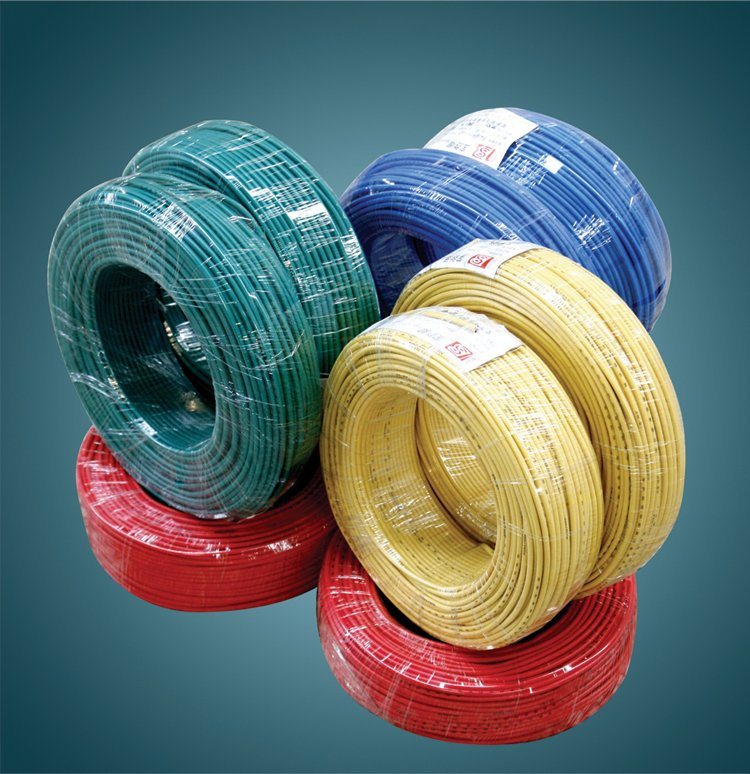

12AWG Electrical Wire PVC Insulated Copper Wire

Name: 12AWG Electrical Wire PVC Insulated Copper Wire
Brand: all-electronics-online.com
SKU: 829447295
Availability: InStock
Rating: 4.8 (97 reviews)

Price:	US $ 0.12-0.35/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TW THW
Cores:	1
Color:	Red Black Yellow Green White
Type:	Insulated
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Conductor Type:	Solid/Stranded
Application:	Housing and Building
Sheath Material:	No Jacket
Range Of Application:	Housing and Building
Brand:	Hongda

Product Description

THW Wire 600V Annealed Copper Conductor PVC Insulated Electrical Wire

Application of THW Wire

General purpose wiring for lighting and power - residential, commercial, industrial buildings in accordance with the National Electrical Code, maximum conductor temperature of 75°C in wet or dry locations, for circuits not exceeding 600 volts

Construction of THW Wire

Annealed uncoated copper conductor, PVC insulation.

Specification of THW Wire

PVC Insulation, 600 Volts, THW Cable

Features:
THW-LS: Low Smoke emission
THW-SR: Sunlight Resistant
THW-G&O: resistance to oil and gasoline
Color: Any color
size AWG
Standard:
ASTM B3, NTC 359. :Soft copper wire.
ASTM B8, NTC 307. :Concentric Lay Stranded copper conductors.
ASTM B787. 19 :Wire Combination Unilay Stranded Copper conductors for subsequent insulation
UL 1581, NTC-3203.: Reference Standard for Electrical Wires, Cables and Flexible Cords.
UL 83, NTC-1332. :Thermoplastic insulated Wires and Cables.
General Technique data

SIZE AWG MCM	CROSS SECTION AL mm2	STRANDING number of wire x diametre mm	INSULATION THICKNESS mm	EXTERNAL DIAMETER mm	TOTAL WEIGHT KG/KM
20	0.52	1×0.813	0.76	2.33	9.81
18	0.82	1×1.02	0.76	2.54	13.16
16	1.31	1×1.29	0.76	2.81	18.1
14	2.08	1×1.63	0.76	3.15	26.1
12	3.31	1×2.05	0.76	3.57	38.3
10	5.26	1×2.59	0.76	4.11	57.4
8	8.34	1×3.26	1.14	5.54	95.2
14	2.08	7×0.62	0.76	3.38	27.8
12	3.31	7×0.78	0.76	3.86	40.1
10	5.26	7×0.98	0.76	4.46	59.9
8	8.37	7×1.23	1.14	5.97	105.2
6	13.3	7×1.55	1.52	7.69	170.4
4	21.15	7×1.96	1.52	8.92	255.5
2	33.62	7×2.47	1.52	10.45	388.9
1	42.36	7×2.78	2.03	12.4	482.9
1/0	53.49	19×1.89	2.03	13.51	621
2/0	67.43	19×2.12	2.03	14.66	778
3/0	85.01	19×2.39	2.03	16.01	934
4/0	107.2	19×2.68	2.03	17.46	1159
250	127	37×2.09	2.41	19.45	1368
300	152	37×2.29	2.41	20.85	1623
350	177	37×2.47	2.41	22.11	1876
400	203	37×2.64	2.41	23.3	2128
500	253	37×2.95	2.41	25.47	2631
600	304	37×3.23	2.79	28.19	3174
650	329	37×3.37	2.79	29.17	3345
700	355	37×3.49	2.79	30.01	3609
