| Prod Model: |
QW180-020-N |
| Battery Type: |
Dry Battery |
| Input Voltage: |
AC100-240V 50/60Hz |
| Voltage: |
18V |
| Output Connector: |
Customized |
| Warranty: |
One Year |
| Delivery Date: |
15days |
| Type: |
Ni-MH Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
18V |
| Charger Style: |
Constant Current—constant Voltage |
| Compatible Battery Type: |
Dry Battery |
| Socket Type: |
Can Be Customized |
Product Description

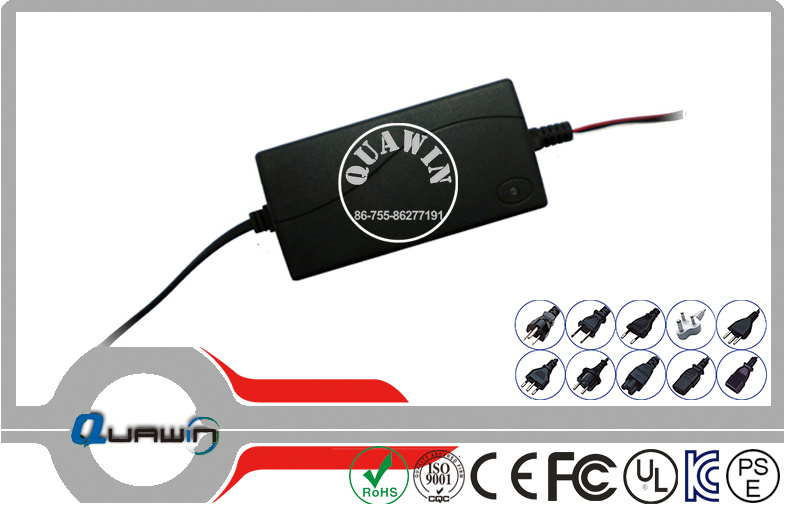

12 Cells 14.4V NIMH NICD Battery Pack Charger(18V 2A)
Quick Detail:
Brand Name: QUAWIN
Model Number: QW180-020-N
Use: 12 Cells 14.4V NIMH NICD Battery Pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: automatic battery charger 18V
Color: Black
Input voltage: 100-240VAC 50/60Hz
Output voltage: 18V
Output current: 2A
Output power: 36W
Charge mode: MCU control charging process to avoid over charge
Output Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal
Packaging & Delivery:
inner package: white box/polybags/at your request outer package: carton
Delivery Detail: 25 days for bulk order
Specifications:
12 Cells 14.4V NIMH NICD Battery PACK
Features:
• Charging mode: CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=80%
• Operating temperature: -10C ~ 45C
• Storage temperature: -20C ~ 70C
• Operating humidity: 5%~90%RH
Specification:
• Input: AC 100-240V 50-60Hz 1.0A
• Output: DC 18V
• Charging current: 2A
• Weight: 400g(only body)
• Dimension: L120*W60*H38mm
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging: RED,
• Protection: RED Blinking
• No battery or Charging finished(Trickle on): GREEN
• Output short or battery poles wrong: RED Blinking
Call us to know more details datasheet.
| ITEM | QW060-060-N | QW060-070-N | QW060-080-N | QW060-090-N | QW090-040-N | QW090-050-N |
| Output voltage: | 6V | 6V | 6V | 6V | 9V | 9V |
| Rated output current: | 6A | 7A | 8A | 9A | 4A | 5A |
| Output power: | 36W | 42W | 48W | 54W | 36W | 45W |
| ITEM | QW090-060-N | QW120-030-N | QW120-040-N | QW120-050-N | QW150-030-N | QW150-040-N |
| Output voltage: | 9V | 12V | 12V | 12V | 15V | 15V |
| Rated output current: | 6A | 3A | 4A | 5A | 3A | 4A |
| Output power: | 54W | 36W | 48W | 60W | 45W | 60W |
| ITEM | QW180-020-N | QW180-030-N | QW210-020-N | QW210-025-N | QW240-020-N | QW240-025-N |
| Output voltage: | 18V | 18V | 21V | 21V | 24V | 24V |
| Rated output current: | 2A | 3A | 2A | 2.5A | 2A | 2.5A |
| Output power: | 36W | 54W | 42W | 52.5W | 48W | 60W |
| ITEM | QW270-015-N | QW270-020-N | QW300-010-N | QW300-020-N | QW330-010-N | QW330-015-N |
| Output voltage: | 27V | 27V | 30V | 30V | 33V | 33V |
| Rated output current: | 1.5A | 2A | 1A | 2A | 1A | 1.5A |
| Output power: | 40.5W | 54W | 30W | 60W | 33W | 49.5W |
| ITEM | QW2.4-7.2-040-N | QW2.4-7.2-050-N | QW2.4-7.2-060-N | QW7.2-12-030-N | QW7.2-12-040-N |
| Output voltage: | 3-9V | 3-9V | 3-9V | 9-15V | 9-15V |
| Rated output current: | 4A | 5A | 6A | 3A | 4A |
| Output power: | 36W | 45W | 54W | 45W | 60W |
