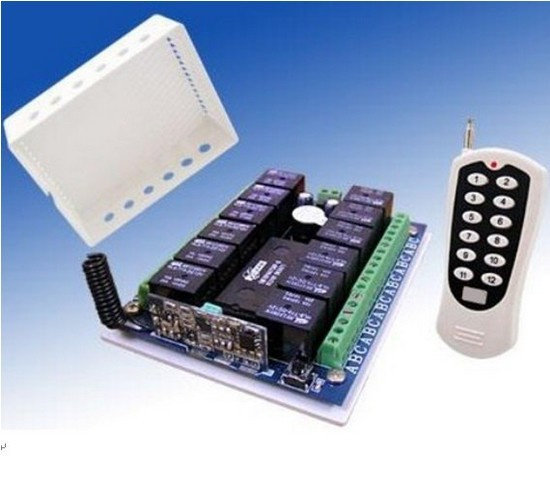

12CH Radio Controller RF Wireless Remote Control Switch

Name: 12CH Radio Controller RF Wireless Remote Control Switch
Brand: all-electronics-online.com
SKU: 737784395
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT-M12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Remote Control Switch:	12 CH
Working Frequency:	315MHz or 433MHz
Working Mode:	Toggle, Momentary, Latched

Product Description

12CH Radio Controller RF Wireless Remote Control Switch
Main Function:

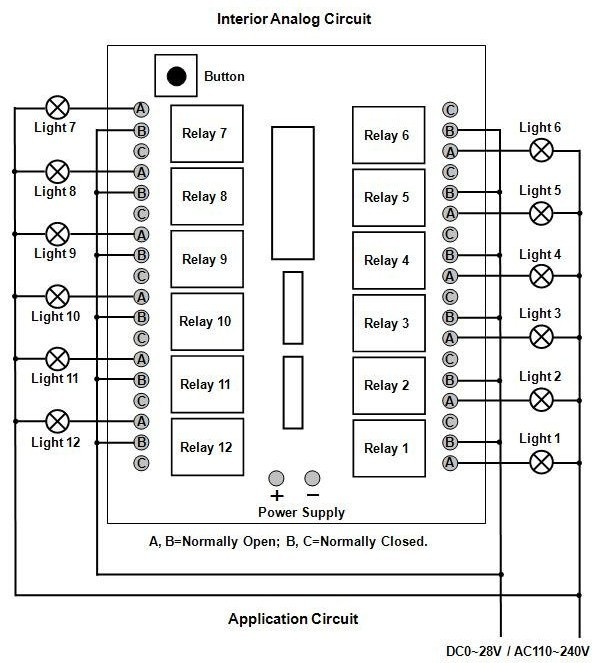

Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC110~240V or DC 0~28V.
You can turn on/off the receiver with transmitter (remote control) from anyplace, the wireless signal can pass through walls, floors, and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an8-bits code.
One/several transmitters can control one/several receivers.
If you use two or more receivers in same place, you can set them with differentcodes.
Transmitting Frequency: 315MHz/433MHz.

Specification of receiver:
Channel: 12 CH
Control Types: Toggle, Momentary, Latched, Toggle+ Momentary
Decode: Learning code
Power Supply (Operating Voltage): DC12V
Relay: 10A/120VAC, 20A/14VDC
Work Voltage Range of Relay: AC 110~240V or DC 0~28V
Receiver Box Size: 100mm x 80mm x 30mm
State current:? 6mA

Specification of Transmitter:
Channel: 12CH
Remote control distance: 1000m-3000ft
Encode: Fixed code, Soldering
Size: 125mm x 49mm x 20mm
Power Supply: 1 x 23A-12V battery (included)

Control Types:
Toggle: Press->On; Press again->Off
Latched: Press->On; Press other button->Off
Momentary: Press and hold->On; Release->Off

Package include:
12CH receiver & SwitchX1
12CH Transmitter X 1
