12core Fiber Optic Waterproof Pigtail Cable I Koc
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Waterproof Pigtail Cable I |
| Jacket Color: |
Black |
| Application: |
Used in Pigtail and Patah Cords |
| Type: |
Single-mode Fiber |
| Certification: |
IEC,Tlc,Reach,SGS |
| Sheath Material: |
PE |
Product Description

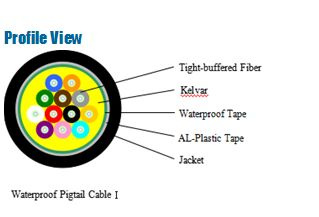

Waterproof Pigtail Cable I
FeaturesGood mechanical and environmental characteristics;Flame retardant characteristics meet the requirements of relevant standards;The mechanical characteristics of jacket meet the requirements of relevant standards;Soft, flexible, easy to lay and splice, and with big capacity data transmission;Meet various requirements of market and clients.
Application 1.
Used in pigtail and patah cords; 2.
Used in optical connections in optical communication equipment rooms and optical distribution frames; 3.
Used in indoor cabling. Specification| Fiber Count | Cable
Dimension (mm) | Cable Weight
(kg/km) | Tensile (N) | Crush (N/100mm) | Min. Bend
Radius(mm) | Range of Temperature(ºC) |
| 250μm Coating Layer | 250μm Coating Layer | Long Term | Short Term | Long Term | Short Term | Dynamic | Static |
| 2 | 5.8 | 27 | 130 | 440 | 300 | 1000 | 20D | 10D | -20~+60 |
| 4 | 5.8 | 29 | 130 | 440 | 300 | 1000 |
| 6 | 6.5 | 33 | 130 | 440 | 300 | 1000 |
| 8 | 7 | 40 | 130 | 440 | 300 | 1000 |
| 10 | 7.5 | 46 | 130 | 440 | 300 | 1000 |
| 12 | 8 | 52 | 130 | 440 | 300 | 1000 |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to tight buffered fiber of 0.9mm outer diameter; 3. D is outer diameter of the round cable; 4. The minimum bend radius (static) is 5Dwhen G657 fiber is used. OptionsFiber Type: G652, G655 or G657 single-mode fiber, A1a or A1b multi -mode cable, or other types of fiber;Fiber Count: The total number of fibers in the cable;Jacket Material: Environmental polyethylene (PE) ,or other contracted material;Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;Cable Dimension: The nominal cable dimension, or other contracted dimension;Delivery Length: 1km or 2km, or other contracted length;Other Requirements: Other contracted special request. OUR SERVICEWe provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.About KOCLocated in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
Shenzhen KOC Communication Co., Ltd. Is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Located in Shenzhen, China, KamaxOptic Communication Co. Ltd., well-known as KOC, is specialized in fiber optic communication products and accessories. She offers precise customized solutions for various customers involved in telecommunication, broadcast, CATV and network industry worldwide.
Our quality is guaranteed by the scientific management with the assistances of professional personnel, advanced testing equipments and efficient ERP system under the strict guidance of ISO9001: 2000, from supplier evaluation to inbound material examination, from processing monitoring to permanent inspection, from packing to shipping. We do care for every detail!
To be dedicated to be a popular manufacturer with her quality products, satisfactory services and attention to details through the full commitment of each personnel to work as one team in an effort to exceed our customer expectations.
To operate the business in a transparent and honest manner, that our customers, our associates and our business partners are proud to play their part in our success.
Please visit us website for more information: http://www.koc.com.cn
