12core Fig8 FTTH Drop Optic Fiber Cable

Name: 12core Fig8 FTTH Drop Optic Fiber Cable
Brand: all-electronics-online.com
SKU: 683830982
Availability: InStock
Rating: 5 (42 reviews)

Price:	US $ 0.045/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH-12-MS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Jacket Color:	Black
Fibers:	2-12
Cable Dimension:	6.0*2.8
Application:	Communication
Certification:	ISO9001
Type:	Sm, mm
Connection Structure:	Sc/Upc, Sc/APC
Brand:	OEM Welcome
Sheath Material:	LSZH

Product Description

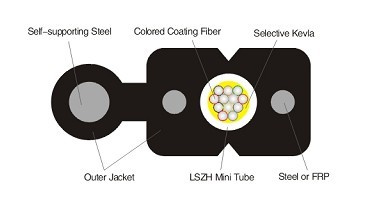

12core FTTH Drop Optic Fiber Cable

Application
Used in access network or as access cable from outdoor to indoor in customer premises netwok;
Used as access building cable in premises distribution system, especially used from outdoor to indoor in aerial access cabling.

Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meets the requirements of relevants standards;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.

Cable Parameters:
fiber count	Cable Dimension(mm)	Cable Weight(kg/km)	Tensile(N)		Crush(N/100mm)		Min.Bend Radius(mm)		Range of Temperature(degree)
fiber count	Cable Dimension(mm)	Cable Weight(kg/km)	Long Term	Short Term	Long Term	Short Term	Dynamic	Static	Range of Temperature(degree)
2~12	6.0*2.8	27	300	600	500	1000	60	30	-20~+60

FTTH advantage is mainly have five points:first,it is a passive network,from the bureau to the user, middle can basically passive;Second,it is relatively wide bandwidth FTTH.Third,because it is on the optical fiber carrying business,so there is no problem.Fourth,because its bandwidth is wide,the supported protocols more flexible;Fifth,with the development of technology,including the point to point,1.25G and FTTH mode have made the more the more perfect function.
Added
In optical access to the family,beside FTTB(Fiber To The Building) optical Fiber to the building.FTTC(Fiber to the curb) optical fiber to the curb,FTTSA(Fiber to the service area) optical fiber to the service area and so on.

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
