| Prod Model: |
FTTH-12F |
| Cores: |
12f |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Material Shape: |
Box |
| Sheath Material: |
ABS |
Product Description
Product DescriptionPayment & Shipping Terms &Supply Capacity| Unit Price: | 8~40.0 USD | Production Capacity: | 10000/month |
| Trade Term: | FOB | Packing: | Carton |
| Payment Term: | L/C, WU, T/T | Delivery Date: | 30days |
| MOQ: | 5 Set/Sets |
|
|
| Means of Transport: | by sea |
|
|
Product Description

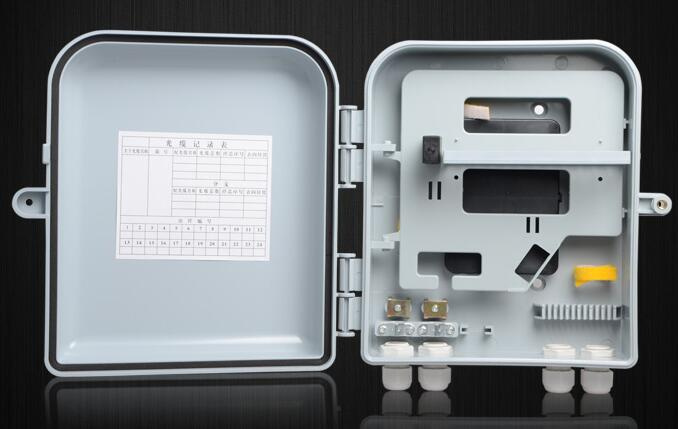

This fiber optic termination box,working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Feature

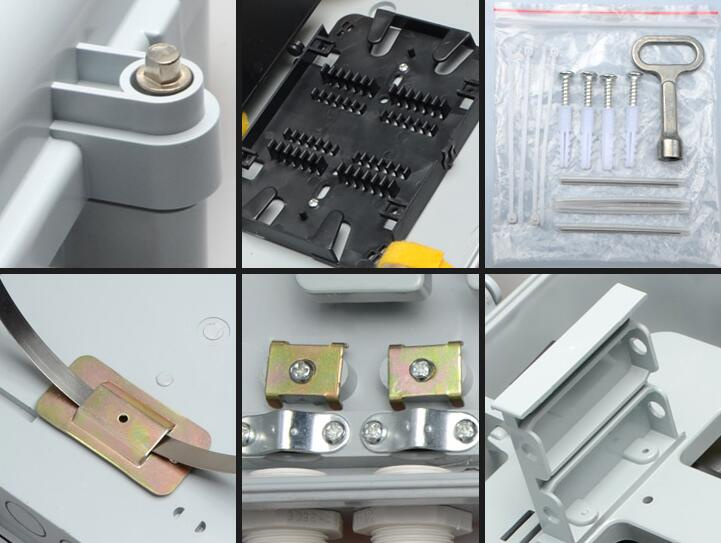

•ABS material used ensures the body strong and light.
•Water-proof design for outdoor uses.
•Easy installations: Ready for wall mount - installation kits provided.
•Adapter slots used - No screws and tools needed for installing adapters.

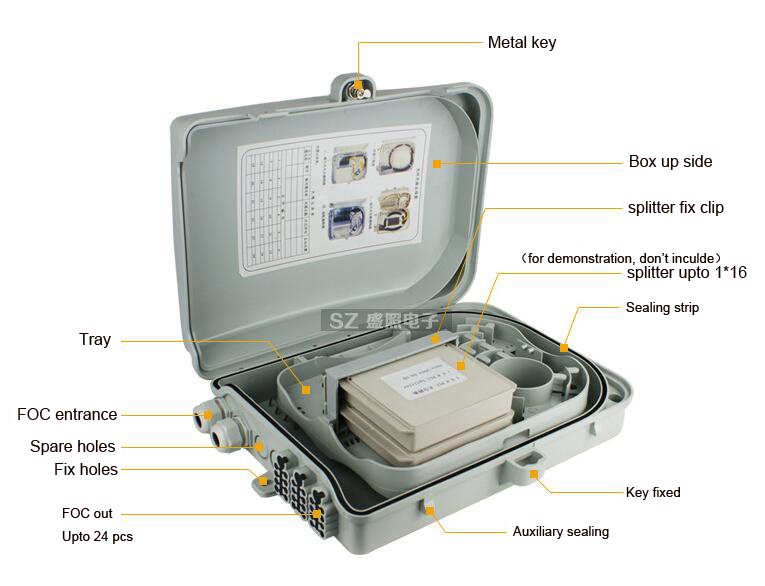

•Ready for splitters: designed space for adding splitters.

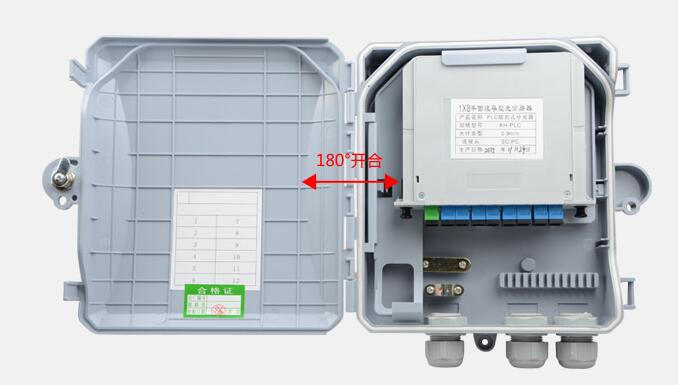

•Space saving! Double-layer design for easier installation and maintenances:
•Lower layer for splitters and over length fiber storage.
•Upper layer for splicing, cross-connecting and fiber distribution.

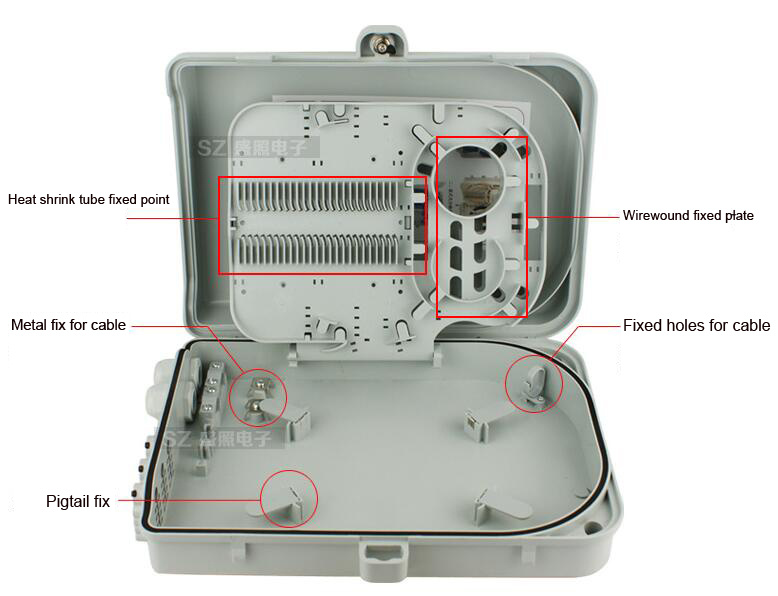

•Cable fixing units provided for fixing the outdoor optical cable.
•Protection Level: IP65.
•Accommodates both cable glands as well as tie-wraps
•Lock provided for extra security
Operation conditions:
•Temperatures:-40ºC -- 60ºC
•Humidity:93% at 40ºC
•Air Pressure:62kPa - 101kPa
Package includes:
•Terminal box, 1 unit
•Keys for lock, 2 keys
•Wall mount installation accessories, 1 set
Performance Specifications: FTTX Residential wall mount indoor/outdoor distribution boxes with PLC splitter
Type |
1x2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 | | | | | | |
Operating wavelength(nm) |
1260-1650 |
Insertion loss (dB) |
Typical |
3.6 |
6.8 |
10.0 |
13.0 |
16.5 |
20.5 |
| | | | | |
Maximum |
3.8 |
7.2 |
10.7 |
13.9 |
17.2 |
22.0 | | | | | | |
Uniformity (dB) |
Typic
al |
0.4 |
0.5 |
0.6 |
1.0 |
1.0 |
2.5 |
| | | | | |
Maximum |
0.6 |
0.8 |
1.0 |
1.4 |
1.6 |
2.5 |
| | | | | |
Polarization Dependent Loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.2 |
0.2 |
0.2 |
| | | | | |
Maximum |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
| | | | | |
Wavelength dependent loss (dB) |
Typical |
0.1 |
0.1 |
0.15 |
0.3 |
0.3 |
0.1 |
| | | | | |
Maximum |
0.2 |
0.3 |
0.3 |
0.5 |
0.5 |
0.2 |
| | | | | . |
Return loss (dB) |
Minimum |
UPC:50 APC:55 |
Directivity (dB) |
Minimum |
55 |
Operating temperature (°C) |
-20 to 70 |
Storage temperature (°C) |
-40 to 85 |
Optical fiber type |
SMF Or customer required |
Optical fiber length (m) |
1.5M or customize |
Remarks: |
1 . Measured at room temperature and excludes connector loss.
2 . For devices with connectors insertion loss will be 0.3 dB higher. |
