12f MPO-LC Fanout Patchcord mm

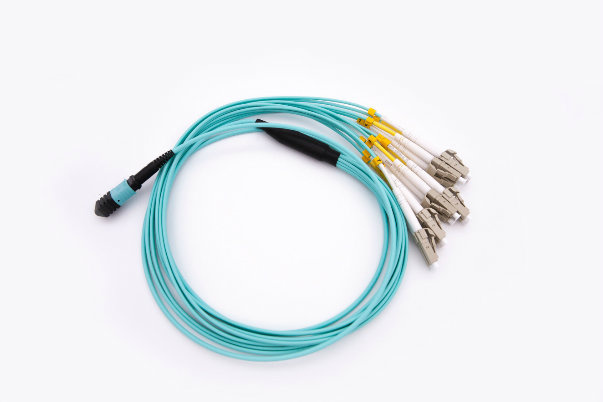

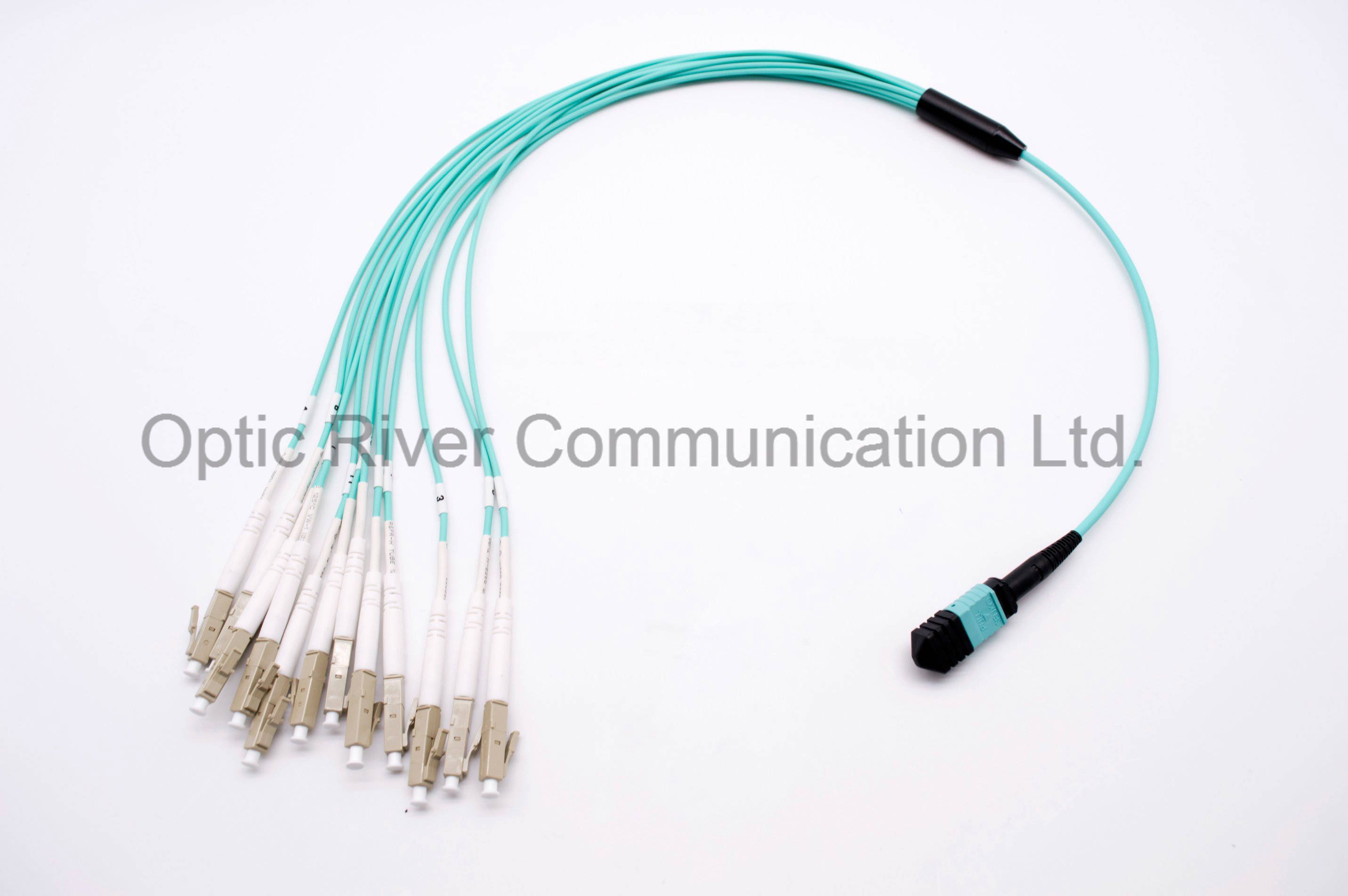

Name: 12f MPO-LC Fanout Patchcord mm
Brand: all-electronics-online.com
SKU: 838340765
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	US $ 22-25/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Transmission Medium:	Multimode
Structure:	MT
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Fabrication Process:	Assembling
Application:	Data Center Connecting
Connector Type:	MPO
Brand:	Senko

Product Description

ORC's MTP / MPO Patchcord are designed to high density multifibers solutions,fit for different installation
environment and easy to install between the trunk line,data centers and buildings.Our patchcord are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.

Features
MTP and MPO are available
High performance in IL&RL
100% pre-terminated tested
Pulling eye design easy for cabling
4F,8F,12F, 24F or customized
Suitable for MTP/MPO application
SM,OM1,OM2,OM3,OM4 or customized
LSZH, OFNR, OFNP available
Compliance with Telcordia GR-1435-CORE Compliant
Compliance with UL 94-V0 compliant
RoHS compliant

Application
40/100G Optical Modules Connectivity
Data Center Cabling
Support 40/100G Network
Telecommunication Network
Industrial&Military

Optical Performance

Optical Performance
Item		Parameters
MTP/MPO Connector		SM (1310nm/1550nm)		MM (850nm)
		Standard	Low Loss	Standard	Low Loss
Insertion Loss	Typical	0.50dB	0.20dB	0.50dB	0.20dB
	Maximum	0.70dB	0.35dB	0.70dB	0.35dB
Return Loss		≥60dB for APC		≥20dB for PC
		≥40dB for PC		--
Male/Female		Male: with Pins, Female: without Pins

FC/LC/SC UPC
Item		Pass/Fail
Parameters		Min		Max
FC ROC		10.00mm		25.00mm
LC ROC		7mm		25.00mm
Fiber Height		-100.0nm		50.0nm
Apex Offset		0.00um		50.00um
FC/SC/LC APC
Item	Pass/Fail
Parameters	Min		Max
ROC	5.00mm		12.00mm
Fiber Height	-100.0nm		50.0nm
Apex Offset	0.00um		50.00um
APC Angle	7.700deg		8.300deg
Key Error	-0.500deg		0.500deg

Optic river communication Ltd (ORC), established in 2009, is a leading manufacture and supplier of cable fiber optic interconnect products in China with advanced manufacturing capabilities. Located in Shenzhen, the biggest special economic zones in China, ORC designs and manufactures fiber optic connectivity and cabling products utilized in datacom, telecom and FTTX networking. We not only offer a complete line of superior quality products, but also work with our customers to develop new formulas and address the burgeoning market.

Our main products as below:

Data Center Solution:

1. Data center cabling: MPO/MTP trunk cable, Fan-out cable, Pre-terminated cable

2. Data center cable management: MPO/MTP Rack/Cassette/Cabinet

FTTX Solution:

1. FTTX cabling: Cable, Patchcord, Pre-terminated Cable

2. FTTX Components: PLC splitter, Fused Biconic Coupler

3. FTTX system: ODF, cabinet, ONU, OLT

High Speed Module Packaging:

1. MT series: AOC, MT-MT, MT-Ferrule, MT-FA etc.

2. Free Space Isolator

4CH AWG packaging.

With the rapid development over the past years, ORC has won widespread praise and recognition of customer satisfaction. Aim to high quality, superior reliability and strong sustainability for the products, ORCorc has passed the most rigorous tests, including GR326, GR1435, GR1209 by Telcordia, RoHS compliance, and ISO9001: 2008 certification as well.
