| Prod Model: |
panel-24Kv |
| Mechanical Life: |
10000 Times |
| Rated Voltage: |
6kv to 35kv |
| Color: |
Grey etc. |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
Product Description
I Scope
Devices for power plants, petroleum, chemical, metallurgy, textile, high-rise building distribution systems and other industries, in large power plants, petrochemical and other high degree of automation, computer interface requirements and place, as the three-phase AC frequency is 50 ( 60) Hz, rated voltage of 380V (600V), rated current 4000A and below the hair, power distribution systems, motor centralized control, reactive power compensation using the low voltage power distribution equipment.
This device is designed to meet the following standards: IEC439-1 Low-voltage switchgear and control equipment; GB7251.1 Low-voltage switchgear and control equipment Part; JB/T9661 voltage withdraw-able switchgear.
Application:

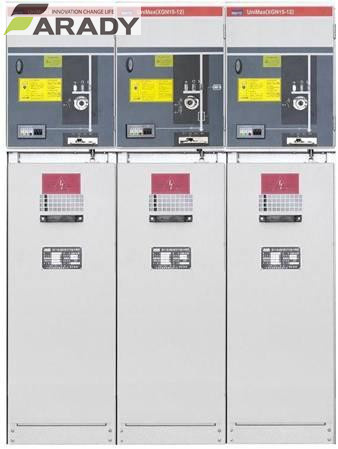

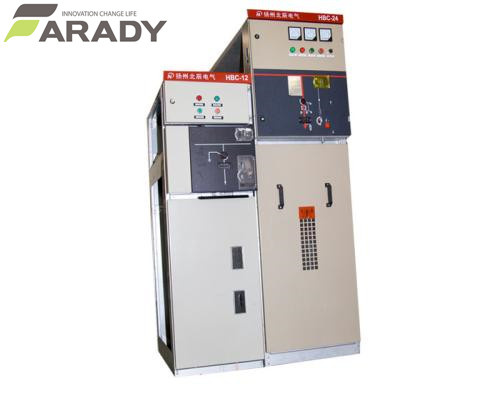

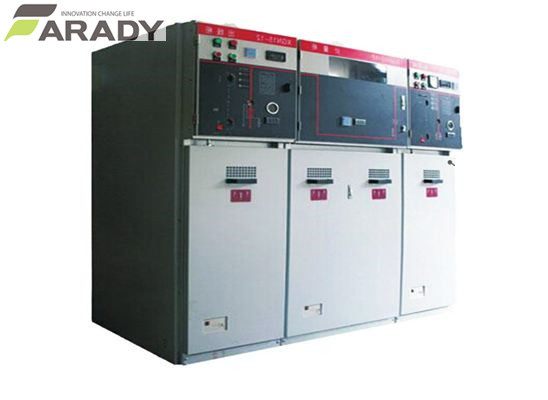

HXGN-12 unit type AC metal ring network switch equipment is suitable for AC50HZ, 12KV power system, as a power of acceptance and distribution. It is widely used in industrial and mining enterprises, high-rise buildings and other distribution systems.
Executive Standard:
Standard number | Description |
GB3906-2006 | 3-35KV AC metal-enclosed switchgear |
GB311.1-2012 | Insulation coordination for high voltage transmission and distribution equipment |
GB3309-1989 | Mechanical test of high voltage switch equipment at room temperature |
IEC298 | AC metal-enclosed switchgear and controlgear |
Product Features:
1) The ring network power supply unit and other wiring modes can be easily formed
2) The expansion property is good
3) Spring energy storage operations, three-phase automatic tripping, linkage is safe and reliable
II Environmental Condition
♦ The ambient temperature is not higher than +40 °C, not less than -5 °C. 24 hours, the average temperature is not higher than +35 °C. Over time, the derating according to the actual operating conditions.
♦ Indoor use, place of use shall not exceed the altitude of 2000m.
♦ Relative Humidity: +40 °C at the highest temperature of less than 50% in the lower temperature allows a greater relative humidity (e.g. 90% at +20 °C), should also take into account the temperature change could come about by accident condensate the impact of disclosure.
♦ When installing the unit and the vertical gradient of not more than 5 °C, and the entire group of cabinet out relatively flat (consistent with GBJ232-82 standard).
♦ The device should be installed in the absence of severe vibration and shock, and not enough to place electrical components from corrosion.
♦ Users with special requirements can be resolved through consultation with the company.
Operating Conditions:
NO. | Description | Requirement |
1 | Ambient temperature | -25°C-+40°C |
2 | Daily average temperature(Within 24h) | ≤35°C |
3 | Altitude(Indoor installation) | ≤1000Meter(Normol) |
4 | Average daily relative humidity | ≤95% |
5 | Average monthly relative humidity | ≤90°% |
III Specifications of Removable AC Metal-Clad Switchgear
1 Professional manufacturer
2 ISO9001 and ISO 14001 certificate
3 CCC and CE certificate
Technical Parameter
NO. | Description | Unit | Data |
1 | Rated voltage/ Maximum operating voltage | KV | 10/12 |
2 | Rated current | A | 630 |
3 | The main busbar current | A | 630 |
4 | Rated short-time withstand current | KA | 20 |
5 | Rated duration of short circuit | S | 4 |
6 | Rated peak withstand current | KA | 50 |
7 | Rated short-circuit making current | KA | 50 |
8 | Rated Active load breaking current | A | 630 |
9 | Closed-loop breaking current | A | 630 |
10 | Rated cable charging current | KA | 20 |
11 | Earthing switch Rated short-time withstand current | KA | 17.3 |
12 | Earthing switch Rated duration of short circuit | S | 2 |
13 | Earthing switch Rated peak withstand current | KA | 43.3 |
14 | Earthing switch Rated short-circuit making current | KA | 43.3 |
15 | Rated power frequency withstand voltage | Phase to phase, relative to ground, vacuum load switch | KV | 42 |
Isolation switch | KV | 48 |
16 | Rated lightning impulse withstand voltage | Phase to phase, relative to ground, vacuum load switch | KV | 75 |
Isolation switch | KV | 85 |
17 | Switch service life | vacuum load switch | Time | 10000 |
Earthing switch(knife switch),lsolation switch(knife switch) | Time | 2000 |
18 | Protection degree | / | IP30 |
