| Prod Model: |
RMR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Application Range: |
Electricity |
| Form: |
Rmu |
| Brand: |
Rockwell |
Product Description
Model number:XGN-40.5
Specifications:- slight volume, small area
- no external environment influence
- safe and reliable operation
General:
It has characteristics of slight volume, small area, no external environment influence, safe and reliable operation, therefore, it has more and more applications in petrochemical, metallurgical, rail transit, high-rise buildings and high altitude area and so on.

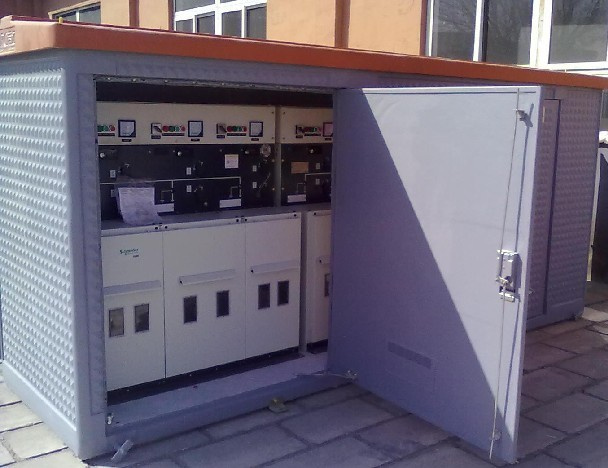

The RMR-40.5 box-type gas insulated metal-clad switchgear(C-GIS),applies to single line, three phase , AC, 40.5KV and 50HZ system, has the function of receiving and distributing power energy, and controlling, protecting, measuring, monitoring and communicating the electrical power system under normal and fault condition.
G-GIS :
C-GIS main characteristic:- compact structure, higher space utilization rate
- modular construction, easily to assemble
- various functional units can be combined in different way
- completely and safely mechanical interlock
- maintenance-free
- configurable integrated intelligent protection control device
- applicable to 3000 meters high altitude area
- can be used in high humidity, high filthy environment conditions
- maximum continuity of service
item |
unit |
date |
Rated current | A | 630/1250/1600/2000/2500 |
Rated voltage | KV | 40.5 |
Rated frequency | HZ | 50 |
Rated peak withstand current | KA | 80 |
Rated short circuit making current |
Rated short circuit breaking current | KA | 31.5 |
Rated short time withstand current |
Rated short time withstand duration | s | 4 |
Rated insulateion level |
Rated lightning impulse withstand voltage | To earth, to phase | KV | 185 |
| breaks | 215 |
1 min power frequency withstand | To earth, to phase | 95 |
| breaks | 118 |
Auziliary control circuit | Rated voltage | V | DC:110 220 |
| AC:110 220 |
| 1 min power frequency | 2000 |
| SF6 gas rated pressure 20ºC | MPa | 0.04 |
| SF6 gas highest pressure 20ºC | MPa | 0.06 |
| SF6 gas alarm pressure 20ºC | MPa | 0.02 |
| Annual gas leakage | | 0.5% |
| DS,ES mechanism life | times | 2000 |
| Overall dimensiaon | mm | 600*1380*2000 |
| weight | t | 1.5 |
| Protection grade | Panel IP4X |
| Aie chamber IP65 |
ATTENTION:
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
