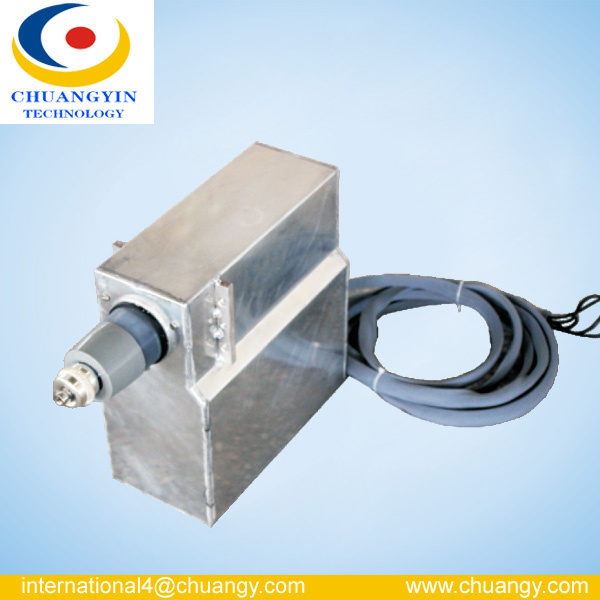

JDZXJ1-12RC  Voltage Transformer


Description
JDZXJ1-12RC used indoor single phase or three phase AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz or 60Hz and rated voltage 11kV.
The product adopts epoxy resin casing full-closed structure with low magnetism density and large creepage distance of external insulation The product has high reliability and maintenance free .

Usage Terms
J:  Voltage transformer
D:  Single-phase
Z:  Casting insulation
X:  Residual voltage winding
J1:  Design No.
12:  Rated voltage
R:  With fuse for protection
C:

Main technical parameter
1. Rated primary voltage: 11kV
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers
TypeRated primary
voltage (kV)
Rated secondary voltage (kV)Accuracy classes combinationRated output
 (VA)
Thermal limiting current
(VA)
Rated insulation level(kV)
JDZXJ1-12RC3/
6/
11/
0.1/
0.11/
0.2253003.6/10/40
7.2/20/60
12/28/75
0.550
180
0.1//0.1/3
0.11//0.11/3
0.2/6P(3P)15/100200
0.5/6P(3P)30/100
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

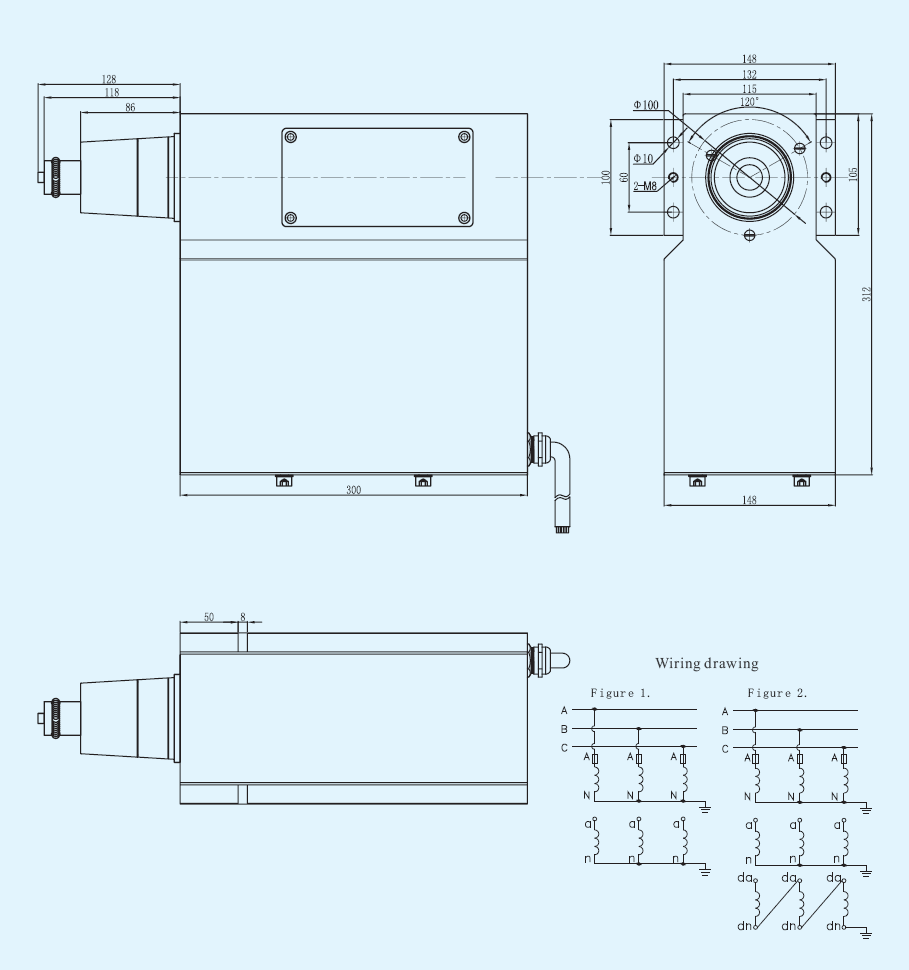

Outline drawing
