12kv Epoxy Resin Type Indoor Single-Phase Single Pole Vt with Embeded Fuse Switching Power Supply

Name: 12kv Epoxy Resin Type Indoor Single-Phase Single Pole Vt with Embeded Fuse Switching Power Supply
Brand: all-electronics-online.com
SKU: 789005845
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 210-220/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZX18-12-003
Indoor:	PT
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

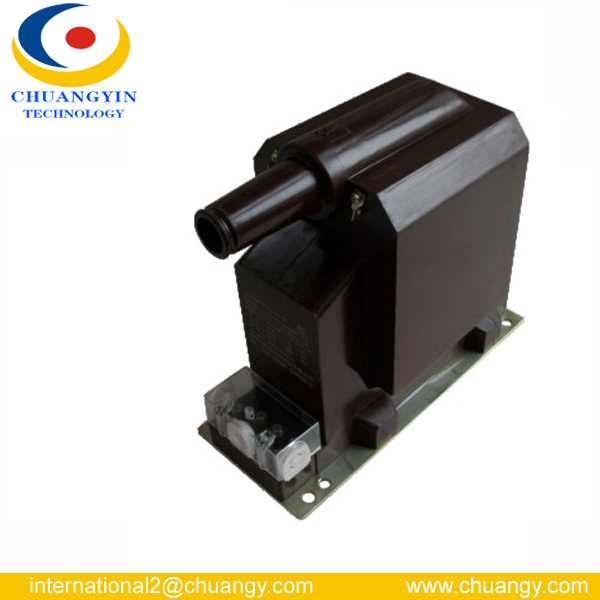

JDZX18-12R Voltage Transformer

Description
JDZX18-12R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5/24 kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.

Usage Terms
J: Voltage transformer
D: Single-phase
Z: Casting insulation
X: Residual voltage winding
18: Design No.
12: Rated voltage
R: With fuse for protection

Technical parameter
1. Rated primary voltage: 20/ or 15/ etc.
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers

Type	Rated primary voltage (kV)	Rated secondary voltage (kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZX18-12R	15/ 20/ 22/	0.1/ 0.11/	0.2	30	300	17.5/38/95 24/50/125
			0.5	50
			1	80
		0.1//0.1/3 0.11//0.11/3	0.2/6P(3P)	15/50	300
			0.5/6P(3P)	30/50
			0.5/0.5/6P(3P)	50/50/150

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

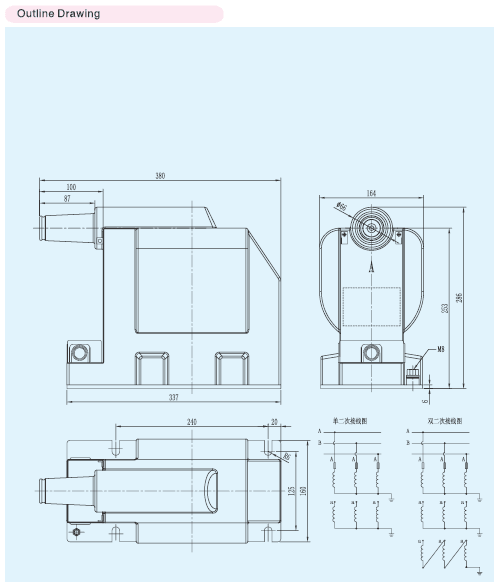

Outline Drawing
