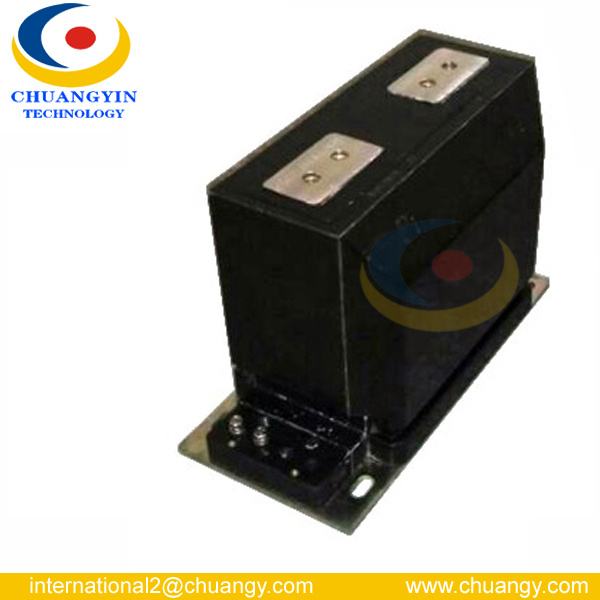

12kv Indoor Block Type CT or Current Transformer

Name: 12kv Indoor Block Type CT or Current Transformer
Brand: all-electronics-online.com
SKU: 757255215
Availability: InStock
Rating: 4.6 (38 reviews)

Price:	US $ 105-120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-11A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
11kv:	Block Type
Small Size:	Epoxy Resin
Current Transformer:	CT
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LZZBJ9-11A1,LZZBJ9-11A2 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.

Features:
Lightweight,omnidirectional installation,withstanding nastiness and dampness,it is widely used for measuring current.Electric system with rated frequency of 50Hz or 60Hz and highest voltage for Equipment 12kV, IEC61869-1&2.

Technical Data:
1) Rated insulation level: 12/28/75kV
2) Rated frequency: 50/60Hz
3) Installation site: Indoor
4) Technical standard: IEC 60044-1:2003, IEC 61869-1&2

Specification

1) Two secondary Single Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2s/0.5/10p 0.2/0.5/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-3150/5							130	160

Note:Upon request we are glad to offer transformers according to other technical specs.

2) Three secondary Double Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2s/0.5/10p 0.5/0.5/10p	10 15	15	15 20	10 15	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-3150/5							130	160

Note:Upon request we are glad to offer transformers according to other technical specs.
