12kv Indoor Current Transformer (5~1000/5; 0.2S~10P) for Mv Switchgear

Name: 12kv Indoor Current Transformer (5~1000/5; 0.2S~10P) for Mv Switchgear
Brand: all-electronics-online.com
SKU: 682363671
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 175-190/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LAJ1-11QII-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	CT
Cts:	Current Transformer
Current Transformers:	High Voltage Transformer
Mv:	Epoxy Resin
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

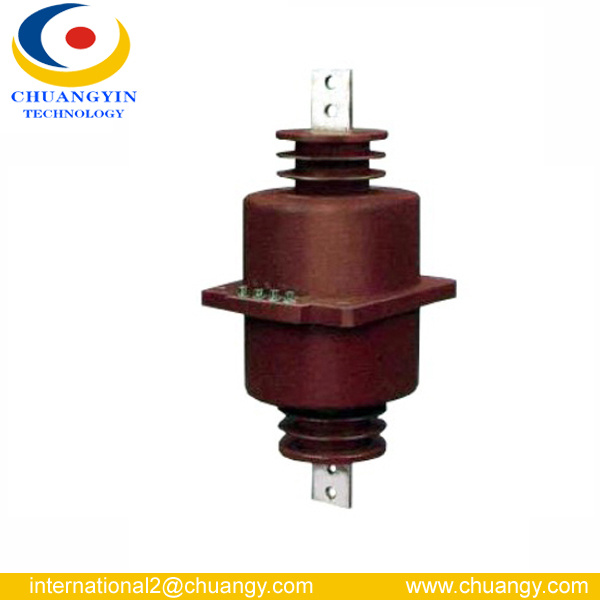

LAJ1-11QIIcurrent transformers(CT) epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body.

The product has large external insulation creepage distance, withstands nastiness and dampness

It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV, IEC68869-1&2.

Main technical parameter

1.     Rated voltage: 12kV
2.     Rated secondary current: 5A or 1A
3.     Highest voltage for equipment: 12kV
4.     Rated power-frequency withstand voltage: 28kV
5.     Rated lightning impulse withstand voltage: 75kV
6.     Rated insulation level: 12/28/75kV
7.     Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
8.     Other technical parameter pls see as follow:

Rated current ratio(A)	Secondary accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
5~300/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15 20	5 (10)	10 15	1001n	250I1n
400/5							31.5	80
500/5							31.5	80
600/5							40	100
800/5							50	125
1000/5							63	125

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
