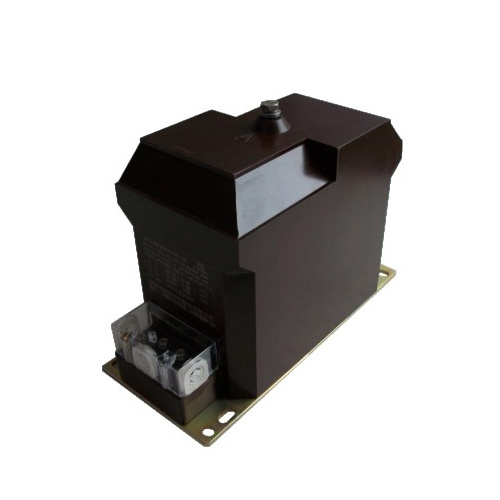

12kv Indoor Single Pole Potential / Voltage Transformer/PT/Vt

Name: 12kv Indoor Single Pole Potential / Voltage Transformer/PT/Vt
Brand: all-electronics-online.com
SKU: 757598425
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 100-110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JDZX10-11A, JDZX10-11B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor:	PT
Single Pole:	Block Type
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Single

Product Description

JDZX10-11(A,B) voltage transformer, epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.

Technical parameter
1. Rated primary voltage: 11/ kV
2. Technical standard accords with IEC 60044-2:2003 standard.

Type	Rated transformation ratio(kV)	Accuracy classes combination	Rated output (VA)	Thermal limiting current (VA)	Rated insulation level(kV)
JDZX10-11A	11/ /0.1/ /0.1/3 11/ /0.11/ /0.11/3	0.2/6P(3P)	15/50	300	12/28/75
		0.5/6P(3P)	30/50
		1/6P	60/50
JDZX10-11B	11 / /0.1/ /0.1/ /0.1/3 11/ /0.11/ /0.11/ /0.11/3	0.2/0.2/6P(3P)	15/15/50	150
		0.2/0.5/6P(3P)	15/20/50
		0.5/0.5/6P(3P)	30/30/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

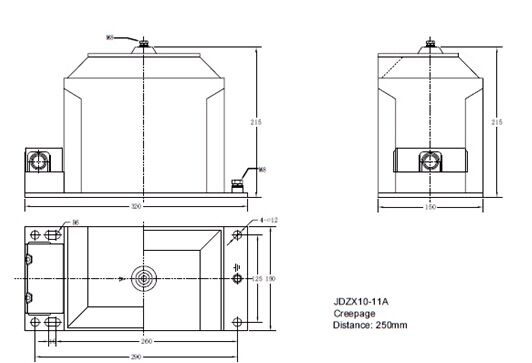

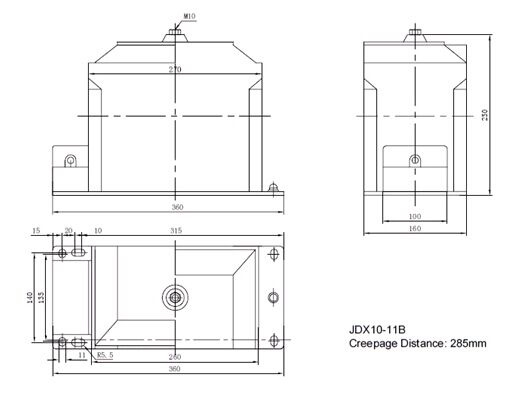

Outline drawing
