12kv Indoor Three-Phase PT or Voltage Transformer Switching Power Supply

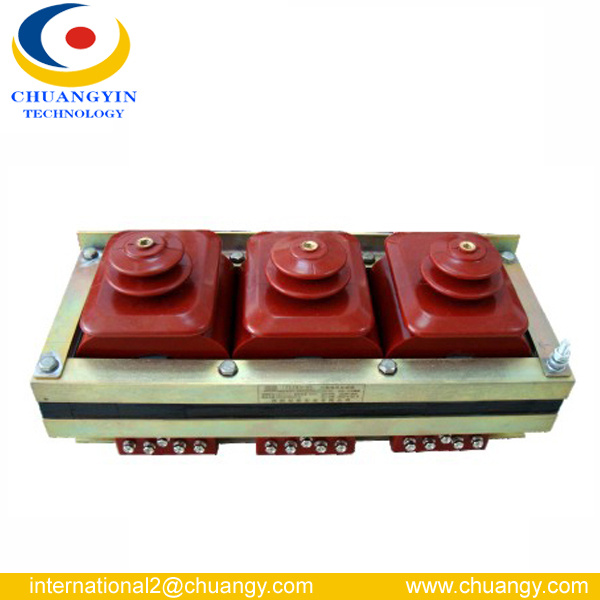

Name: 12kv Indoor Three-Phase PT or Voltage Transformer Switching Power Supply
Brand: all-electronics-online.com
SKU: 788956135
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	US $ 320-330/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JSZW3-12
Indoor:	Three-Phase
Three-Phase PT:	11kv
Metal Shell:	Voltage Transformer
Frequency:	50/60Hz
Epoxy Resin:	Vt
Application:	Switchgear
Type:	Voltage Transformer
Phase:	Three

Product Description

JSZW3-11 three phase voltage transformer, adopts indoor epoxy resin material casting and fully enclosed construction,is used for measuring current, electric energy and protective relaying in the electric system, with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV, IEC68869-1&3

Commpany Information:

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D,
production and sales of kinds split core current transformers, Rogowski coils,
energy meter components (CT and relay), medium voltage current transformers,
potential transformers, low voltage current transformers and switchgear components.
Work with us, a CT and relay assembly solutions provider that GE and Itron trust

Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA

Specification

Type	Rated Primary Voltage (kV)	Rated Secondary Voltage (kV)	Acuracy Classes Combination	Rated Output(VA) COS0=0.8	Thermal Limiting Output (VA)	Rated Insulation Level (kV)
JSZW3-12	11/√3	0.11/√3/0.11/3	0.2/6P(3P)	45/75	600	12/28/75
			0.5/6P(3P)	90/75
			1/6P(3P)	150/75
			3/6P(3P)	300/75

Note:Upon request we are glad to offer transformers according to other technical specs.

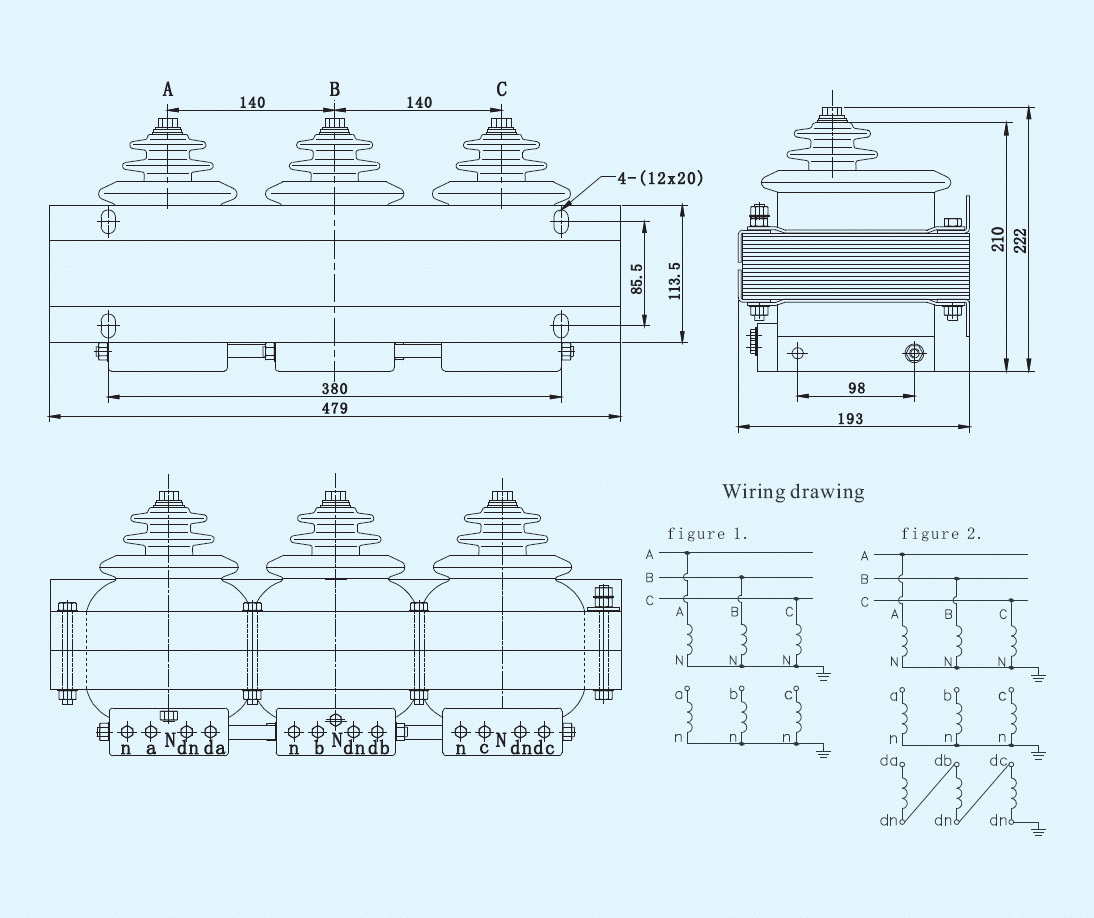

Outline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
