| Prod Model: |
ZW20A-12C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
People |
| Rated Voltage: |
12kv |
| Rated Current: |
630A,1000A |
| Customized Design: |
Yes |
| Weight: |
140kg |
| Frequency: |
AC 50Hz |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Operation: |
Electric, Manual Type |
| Function: |
Overload, Shortcircuit Ect |
Product Description
IntroductionZW27A-12 series AC high voltage demarcation vacuum automatic recloser consists of 3 parts: vacuum circuit breaker; controller; control power source.
Adopt microprocessor and digital display panel, convenient for human-computer interaction. All parameters can be adjusted, adding GPRS,GSM communication systems make closing & breaking operation and remote communication via mobile.
HV VCB adopts Vacuum arc extinguish chamber to blow-out arc and SF6 gas for isolation. The Case uses gas of Toshiba for sealling with isolation structure technology.
Application surroundingAmbient temperature: -40ºC ~ + 40ºC
Altitude ≤ 2000m
Wind pressure ≤ 700Pa (equal to wind speed is 34m/s)
relative temperature daily average ≤ 95%, monthly average ≤ 90%
Air pollution degree: III class
No frequent horrible sharp shock
Specification| Rated Voltage | 12KV |
| Power frequency withstand voltage(1min) | phase, to ground | 42KV |
| fracture | 48KV |
| Lightning impulse withstand voltage | phase, to ground | 75KV |
| fracture | 85KV |
| Rated current | 630A, 1000A |
| Rated Frequency | 50HZ |
| Rated short-circuit current making & breaking times | 30 times |
| Rated short-circuit making current(peak) | 40, 50, 63KA |
| Rated short-time withstand current(4s) | 16, 20, 25KA |
| Rated short-circuit breaking current | 16, 20, 25KA |
| Rated withstand current(peak) | 40, 50, 63KA |
| Rated short-time duration | 4s |
| Mechanical life | 10000 times |
| Rated current breaking times | 10000 times |
| Rated operating voltage and auxiauxiliary circuit rated voltage | AC/DC 220V, 110V |
| Overcurrent tripper rated current | 5A |
| secondary circuit power frequency withstand voltage(1min) | 2KV |
Mechanical specification
| open contacts clearance | 9+1-0.5 mm |
| contact travel | 3+1-0.5 mm |
| breaking speed | 12±0.2m/s |
| closing speed | 0.6±0.2m/s |
| breaking time | ≤45ms |
| closing time | ≤45ms |
| contact closing spring time | ≤2ms |
| phases core clearance | 135±1.5 |
| outside charged-air isolation clearance | 240±2 |
| outside specfic creepage distance | 3.8cm/kV |
| three phases breaking different cycle | ≤2ms |
| each phase conductin circuit resistance | ≤150μΩ |
| energy storge motor rated power | > 40W |
| energy storge motor rated voltage | AC 220V |
| rated making operation voltage | AC 220V |
| Max/Min breaking operation voltage | AC264/143 |
| Max/Min motor voltage | AC242/187 |
| SF6 gas rated pressure | 0 MPa |

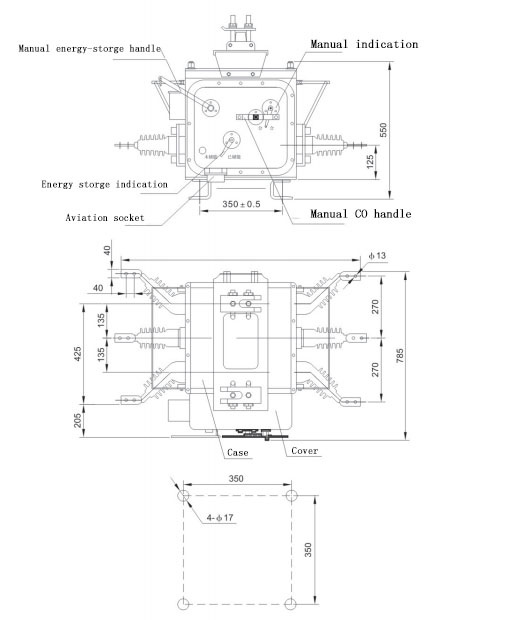

Outline and mounting dimension
