| Prod Model: |
ZW8-12YZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
People |
| Rated Voltage: |
12kv |
| Rated Current: |
630, 1250A |
| Customized Design: |
Yes |
| Frequency: |
AC 50Hz |
| Weight: |
About 210kg |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Vacuum |
| Installation: |
Fixed |
| Structure: |
ACB |
| Poles Number: |
3 |
| Certification: |
CCC |
| Function: |
Overload, Shortcircuit Ect |
Product Description

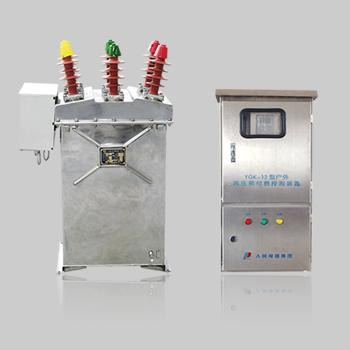

IntroductionZW8-12YZD series AC high voltage outdoor prepay controlling device. Applied in the high voltage electrical system as prepay meter or automatic recloser of automation distribution net , AC50Hz, 6~10KVConsist of vacuum circuit breaker, dry type voltage transformer & current transformer for metering, upside of case is VCB, downside is transformers chamber.
Can install prepay meters as clients require, or installed by themselves.
Application surrounding Ambient temperature: -40ºC ~ + 40ºC
Height attitude ≤ 2000m
Max wind speed ≤34m/s
Relative diary temperature average ≤95%, monthly temperature average ≤ 90%.
Air pollution degree: III class
No frequent horrible sharp shock
Features1. The system includes HV metering controlling device, VCB, combination with disconnectors, arresters and other devices for users' energy metering and prepay of electricity.
2. Clients use electricity after buying via purchase-electricity card, every meter cabinet matches one special card.
3. Users can see the remaining, used electricity volume and other parameters on device screen
4.When remaining volume reach the alarm No, reminding users buy electricity in time via sound and light alarm
5. When the remaining volume is 0, can breaking clients‘ loading current reliably to slove the problem of long-term arrears.
Specification| Rated Voltage | 12KV |
| Power frequency withstand voltage(1min) | phase, to ground | 42KV |
| fracture | 48KV |
| Lightning impulse withstand voltage | phase, to ground | 75KV |
| fracture | 85KV |
| Rated current | 630A, 1250A |
| Rated Frequency | 50HZ |
| Rated short-circuit current making & breaking times | 30 times |
| Rated short-circuit breaking current | 20KA |
| Rated short-circuit making current(peak) | 50KA |
| Rated short-time withstand current | 20KA |
| Rated peak withstand current (peak) | 50KA |
| Rated operation order | O-0.3s-CO-180s-CO |
| Rated operation voltage | ~220V |
| Overcurrent release trip current | 5A |
| Overcurrent release trip current accuracy | ±10% |
| Mechanical life | 10000 times |
| secondary circle power frequency withstand voltage(1min) | 2kV |
Mechanical specification
| Open contact clearance | 11±1mm |
| Contacts travel | 3+1-0.3 mm |
| average breaking speed | 1.1±0.3m/s |
| average making speed | 0.7±0.15m/s |
| contact making spring time | ≤2ms |
| three phases different cycle | ≤2ms |
| makiing tme | 25~50ms |
| breaking time | 15~50ms |
| all breaking time | ≤100ms |
| arcing time | ≤20ms |
| each phase circle resistance | B phase: ≤150μΩ;
A,C phase: ≤350μΩ |
Outline and mounting dimension
-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional manufacturer
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Welcome to visit our factory. Welcome customer or your agent to inspect before order and before lading.
