| Prod Model: |
ZW8-12, ZW8-12G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shandong, China (Mainland) |
| Brand Name: |
Powery |
| Type: |
Vacuum |
| Function: |
Circuit-Breaker Failure Protection |
| Arc-extinguishing Medium: |
Vacuum |
| Structure: |
MCCB |
| Breaking Capacity: |
High Voltage Circuit Breakers |
| Certification: |
ISO9001-2000 |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
High-Speed Circuit Breaker |
Product Description

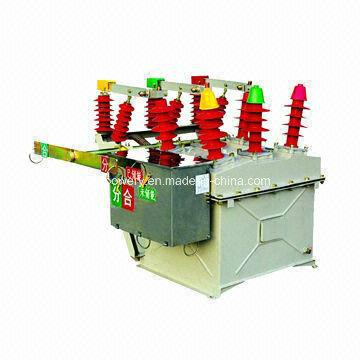

ZW8-12 series outdoor high-voltage vacuum circuit breaker is a kind of three-phase outdoor high-voltage switchgear of rated voltage 12kV and AC 50Hz.
Its population structure is three-phase together box type. Three-phase vacuum arc-extinguish chamber palaces in a metal cabinet, using the SMC insulating material to insulate inter-phase and phase to earth, which is reliable in performance and high in insulating intensity.
ZW8-12G is combined with ZW8-12 circuit breaker and isolating sword, called combination circuit breaker and used as a section switch.
3-phase AC 50Hz outdoor high voltage distribution equipment
Used for opening and closing loading, over-loading and short-circuit current
With computer remote control system and data wireless transmission terminal and more
Remote opening and closing function can be achieved
This is the optimum unboiled equipment for remaking the town and country's electric net
Voltage: 12kV
Current: 630A
Power-frequency withstand voltage (dry test/wet test): 42/34kA
Short time withstand current: <20kA
Withstand current (peak): <50kA
Short-circuit breaking current: <20kA
Short-circuit breaking current: <50kA
Lighting impulse withstand voltage: 75kA
Duration of short circuit: 4s
Making operation of short circuit breaker: 30 cycles
Voltage of store energy motor: 220, 110, 220V DC and 110V AC
Power of energy-stored motor: 200W
Power of opening and closing coil: 200, 100 and 220V
Current of opening coil: 0.5, 0.99 and 0.51A
Current of overloading release: 5A
|
Item |
Unit |
Parameter |
|
Rated Voltage |
kV |
12 |
|
Rated Current |
A |
630 |
|
Rated Short-circuit Breaking Current |
kA |
6.3 |
12.5 |
20 |
|
Rated Short-circuit Making Current (Peak) |
kA |
16 |
31.5 |
50 |
|
Rated Peak Withstand Current |
kA |
16 |
31.5 |
50 |
|
Rated Short-time Withstand Current |
kA |
6.3 |
12.5 |
20 |
|
Rated Insulation Level |
1min Power Frequency
Withstand Voltage (Dry Test) |
kV |
42 |
|
Lightning Impulse Withstand Voltage (Peak) |
kV |
75 |
|
Rated Operating Sequence |
|
O-0.3s-C O-180s-CO |
|
Mechanical Life |
times |
10000 |
|
Rated Short-circuit Current Breaking Times |
times |
30 |
|
Rated Closing Voltage of Operator |
V |
110, 220 |
|
Rated Opening Voltage of Operator |
V |
110, 220 |
|
Clearance Between Open Contacts |
mm |
11± 1 |
|
Over travel of Contacts |
mm |
3 |
|
Three-phase Opening/Closing Synchronization |
ms |
≤ 2 |
|
Closing Bouncing Time |
ms |
≤ 2 |
|
Average Opening Speed |
m/s |
1.0± 0.2 |
|
Average Closing Speed |
m/s |
0.7± 0.15 |
|
Opening Time |
Highest Operating Voltage |
s |
0.015~0.05 |
|
Lowest Operating Voltage |
s |
0.03~0.06 |
|
Closing Time |
s |
0.025~0.05 |
|
Main Loop Resistance of Each Phase |
μ Ω |
≤ 120 |
|
Total Thickness of Permissible Wear of Moving and Static Contacts |
mm |
3 |
