Shenzhen Hifuture Electric Co., Ltd. >> 12kv Sf6 Gas-Insulated Ring Main Unit Switchgears / Distribution Cabinet/ Fuse Switch

12kv Sf6 Gas-Insulated Ring Main Unit Switchgears / Distribution Cabinet/ Fuse Switch

12kv Sf6 Gas-Insulated Ring Main Unit Switchgears / Distribution Cabinet/ Fuse Switch
Price: US $ 3500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: R-SF6
IP Degree: IP3X
Sf6 Air Chamber Degree: IP67

Product Description

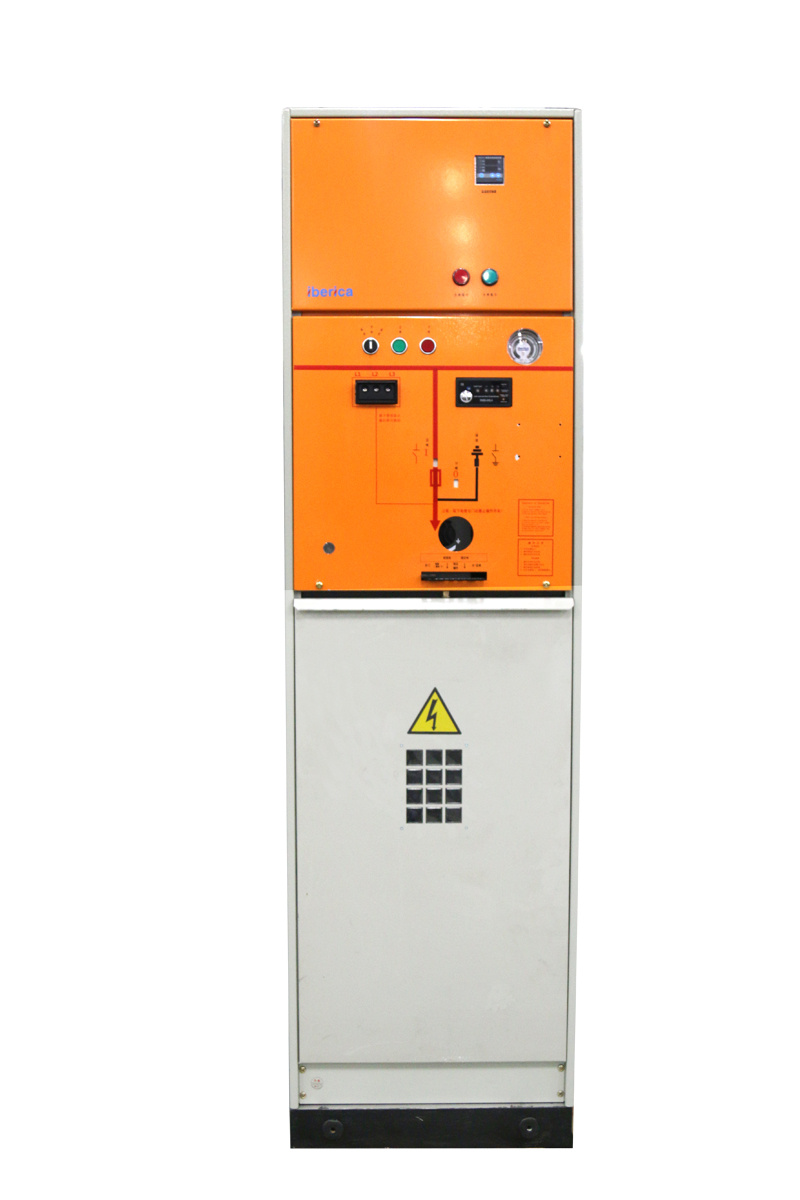

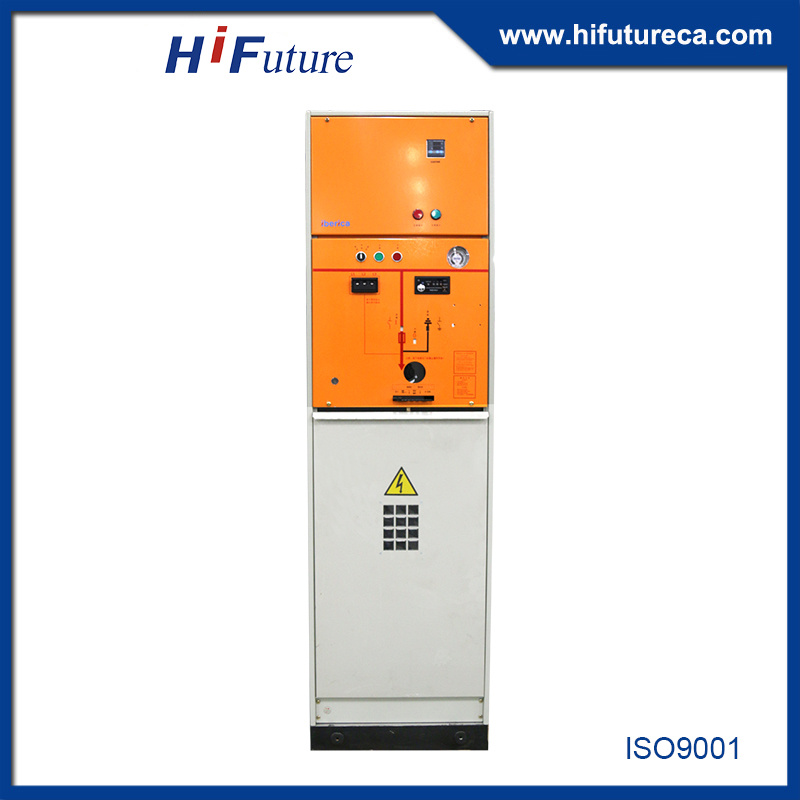

12kV SF6 Gas-Insulated Ring Main Unit Switchgears

Hifuture IA series SF6 Gas Insulated Ring Main Unit (RMU) has a compact, safe, user-friendly and maintenance-free design. Its modular design of Load Switch Unit, Fuse Switch Unit, Vacuum Interrupter Unit, and Incoming Busbar Unit, provides customers with flexible tailor made options. It is mainly used for city power distribution, commercial centers, shopping centers, office buildings, industrial areas and other locations where the load is concentrated or the demand is increasing.

RatingsUnitP Module
Fuse unit
Rated VoltagekV12
Rated CurrentA200
Power frequency withstand voltage 1 minPhase to earth /phase to phasekV42
Insulating distancekV48
Impulse withstand voltagePhase to earth /phase to phasekV
Insulating distancekV
Rated closed loop breaking currentA
Rated cable-charging breaking currentA
Rated breaking inductive currentA
Rated short-time withstand current 4skA
Rated peak withstand currentkA
Rated transfer currentA1700
Rated short circuit breaking currentkALimited by high voltage fuse links
Rated short circuit making currentkA
Rated short circuit breaking timestimes
Rated short circuit making times (load switch/grounding switch)times
Rated current breaking timestimes
Machine operation times (load switch/ground switch)times5000/2000

RMU can be customized according to customers' request. More detals about this product, pls contact us.
Shenzhen Hifuture Electric Co., Ltd. is committed to professional power distribution grid equipment and integrated solutions. Hifuture Electric comprises of three divisions: Electrical Insulating Material Division, MV & LV Equipment Division, and New Energy Division.

The Electrical Insulating Material Division, with its new macromolecule electrical insulation material technology, is specialized in silicone rubber material, APG products, and SMC material.

The division has developed a wide range of cold shrinkable Cable Termination, Cable Joint, Separable Connector, Busbars and Connectors, Surge Arrester, APG Epoxy Resin Bushing, Dry-type Tubing Busbars, and other accessories, up to 40.5kV.

Hifuture Electric is the earliest manufacturer in China of silicone rubber cable accessories. As early as in 2004, its Cable Connectors were already certified by KEMA. Today, Hifuture Electric is partner of the world's giants in the electric industry.

Its SMC products include Meter Box, Power Distribution Cabinet, modular combination type cabinets for Switchgear, Ring Main Unit, Compact Substation, Telecom cabinet, etc. Hifuture has its own mould processing center and is able to quickly design and develop new moulds for new products tailored to your requirements.

The MV & LV Equipment Division is mainly engaged in power Distribution Grid Equipment, including high-quality SF6 Gas-insulated Ring Main Unit, Low-voltage Switchgear, Power Distribution Switch/Control board, Cable Branching/Junction Cabinet, etc.

Hifuture Electric has been an approved supplier to the China State Grid and China Southern Power Grid.

Hifuture Solid Insulation Tubing Busbar is also manufactured in this division with TCE(Triple Co-Extrusion) technology. Hifuture is the pioneer in adopting TCE technology on Tubing Busbar. It has developed its own manufacturing equipment and is proud to have participated in setting the product standards.

The New Energy Division is a new business unit of Hifuture Electric. It started with Electric Vehicle Charging Equipment and is also ambitiously expanding into other new energy like PV Power. With its rich experience in Power Distribution Grid projects, Hifuture Electric provides customers with complete EPC service from MV/LV distribution up to the EV charging station. It has also developed its independent operating platform. Currently, it runs over 50 EV Charging stations on its platform system.

Hifuture Electric has devoted to overseas market since 2004. Its products and solutions have served over 500 cities and towns in China as well as some significant international events like the Beijing 2008 Olympics, Asian Games, World Expo, etc.

Since its establishment in 1999, Hifuture Electric has gained 95 national patents covering different product categories and was awarded "Shenzhen Hi-tech Enterprise" in 2001 and "National Hi-Tech Enterprise" in 2008.
