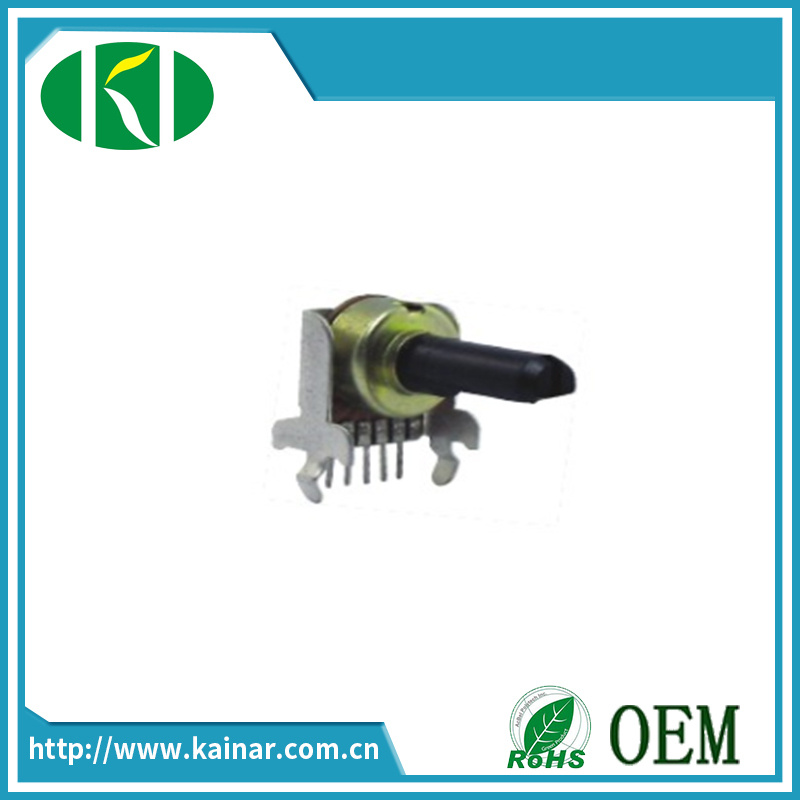

12mm 6 Pins Rotary Potentiometer with Bracket Wh0122-2

Name: 12mm 6 Pins Rotary Potentiometer with Bracket Wh0122-2
Brand: all-electronics-online.com
SKU: 816525655
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	US $ 0.16/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH0122-2
Tolerance Of Resistance:	±20%
Power Rating:	0.05W
Rated Volatge:	50V AC/DC 20V
Shaft Stopper Strength:	4kgf.Cm Min
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Function For Resistance:	Variable Resistor
Installation:	Other
Package Type:	Carton
Quantity:	Available
Shape:	Picture
Brand:	Kn

Product Description

Product specifications

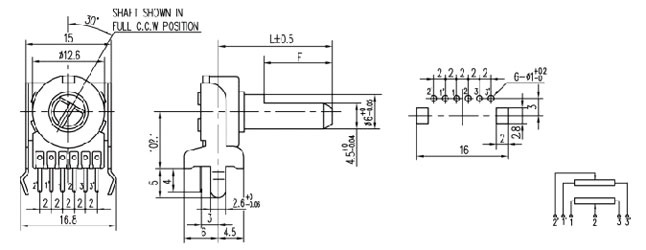

Mechanical specifications:
Total rotation angle:	300°±10°
Rotation torque:	5~25mN.m(50~250gf.cm)
Shaft stop strength:	0.4N.m(4Kgf.cm)
Switch working angle/stroke:	≤50°
Click position:	0/32/40detent
Switch operating torque:	50-300gf.cm
Electrical specifications:
Total resistance:	1KΩ~500KΩ
Resistance taper:	A,B,C
Resistance tolerance:	±20% or ±10%
Rotational noise:	≤47mV
Residual resistance:	R≥250KΩ 0.1% max.of totalresistance 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max.
Rotary toque:	30-200gf.cm
Rated wattage:	0.05W
Switch rating	DC 16V 1A
Dielectric:	AC300V,1 minute
Insulation resistance:	≥100MΩ at DC250V
Operating Temperature:	-10 ~ 60ºC
Durability:
Rotary life:	10,000cycles

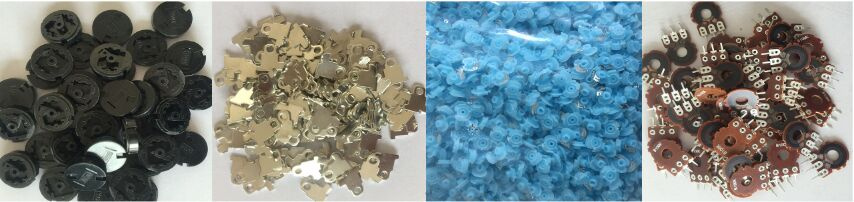

Raw Material

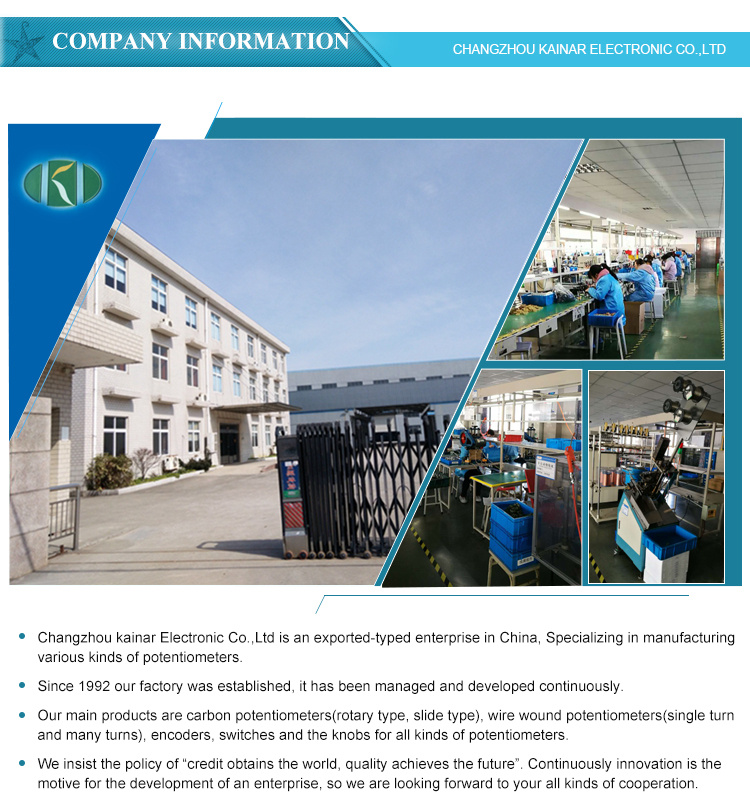

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
