| Prod Model: |
JL-12FN20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
DC 1.2V-24V |
| Torque: |
High Torque |
| Speed: |
Constant Speed |
| Od Gearbox: |
12mm |
| Brush: |
Metal Brush |
| Power: |
DC |
| Shaft: |
O, D-Cut |
| Material: |
RoHS Material |
| Application: |
Toy, Robots, Lock etc.. |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Number Of Poles: |
1 |
| Certification: |
Ce, RoHS |
| Brand: |
Kingly |
Product Description

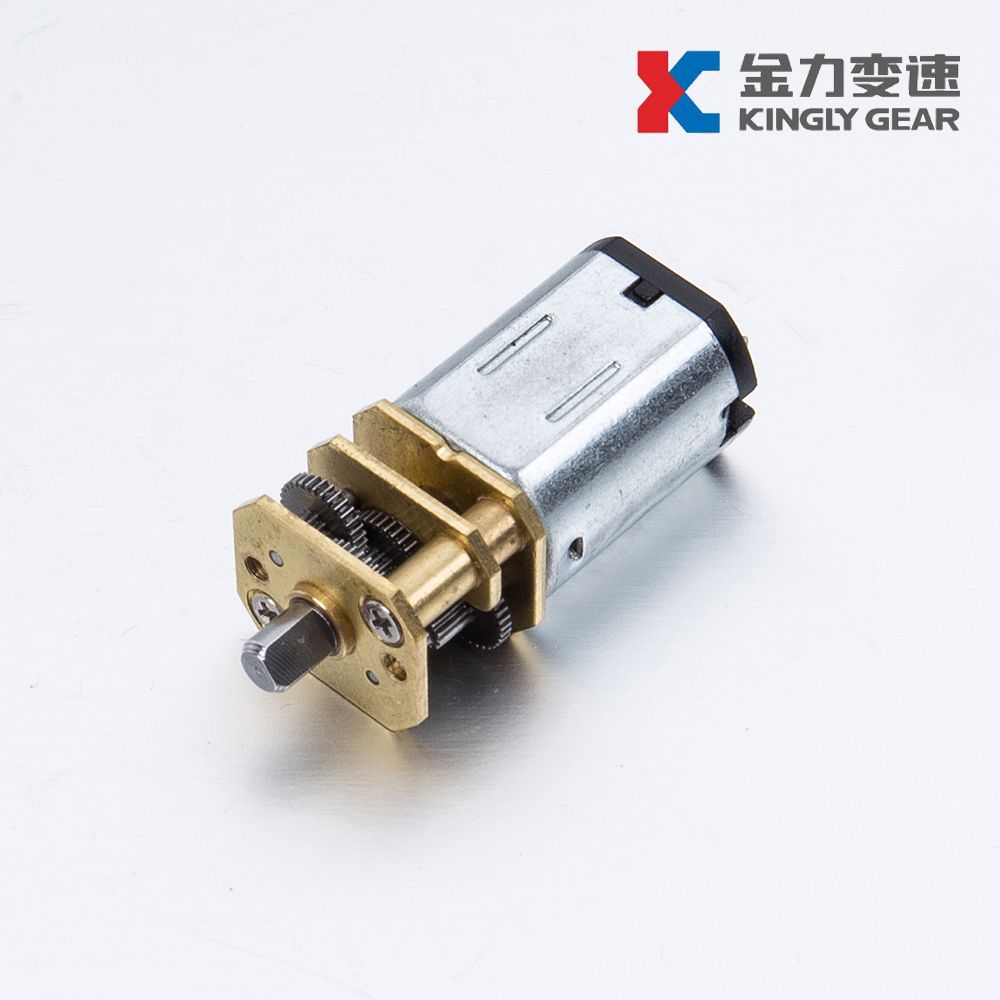

12mm DC GEAR MOTOR, DC motor with gearbox
1. Certification: CE, RoHS, ISO9001: 2000
2. Typical application: Automatic door-lock, Projector, Hairdressing equipment
3. Motors specification and shaft length can be tailor-made according to cuesomer's requirements
4. Ratio: 100 to 298
| MODEL | VOLTAGE | NO-LOAD | AT MAXIMUM EFFICIENCY | STALL |
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | r/min | A | r/min | A | mN·m | Kg·cm | W | mN·m | Kg·cm | A |
JL-12F
1215-100 | 3 | 102 | 0.05 | 76 | 0.15 | 14.7 | 0.15 | 0.11 | 58.8 | 0.6 | 0.48 |
JL-12F
1215-298 | 4.5 | 52 | 0.045 | 41 | 0.165 | 39.2 | 0.40 | 0.17 | 176.4 | 1.8 | 0.62 |
Packing&Shipping
Packing:The plastic membrane cover the foam box, and the products put into the foam box order by order, then use pasteboard cover the carton.Then put the products into the big carton .
Shipping:The products will be sent through Ningbo port, Shenzhen port and Guangdong port or the port that buyers pointed.
Our Service
First: The buyers inquiry will be replied at first time.
Second: The best suitable products will be recommended to buyers according to their requirements.
Third: The order will be arranged as soon as possible.
Forth:we provide the high quality products with high efficiency.
FAQ
Catalogue: ac,dc, brush, brushless, carbon-brush, electric-brush, gear motor. Gearbox.
Payment Terms:T/T L/C western union
Certificate:ROHS,CE CCC
Deliver time:Usually 20 days.
