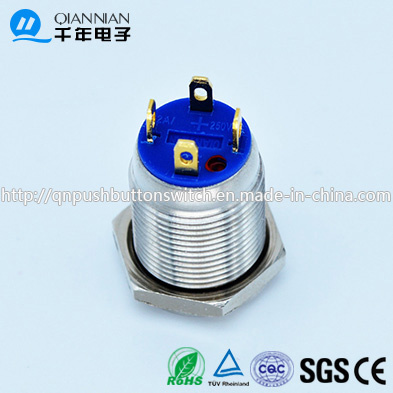

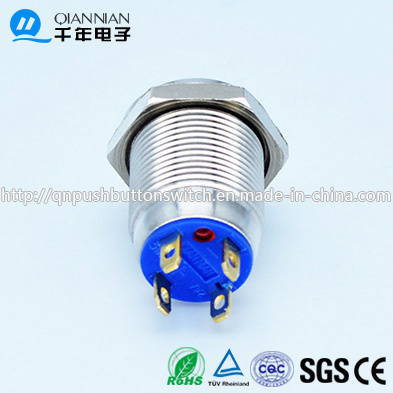

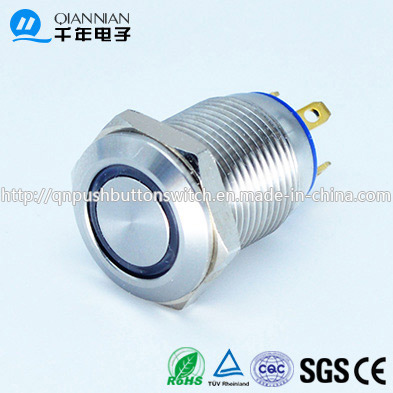

12mm Domed Head Momentary (NO) Nickel Plated Brass Switch

12mm Domed Head Momentary (NO) Nickel Plated Brass Switch
Price: US $ 0.1-1.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: QN12-C1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Nickel Plated Brass/Stainless Steel
Operation Type: Momentary
Feet Type: Spade Pin
Manufacturer: Yes
MOQ: Yes
Type: Normal Open
Usage: Check Button
Kind: Single-pole on-off Switch
Contact Type: Normal Open or Normal Close
Brand: Qian Nian
Certification: CQC Reach RoHS

Product Description


title:QN12-C1 12mm Ring Type  Momentary Flat Head Pin terminal Waterproof metal push button switch

       They are widely used in household appliances, electric force,telecommunications,machine tool,vessel,textile,printing,Mining machine,Mustic Instrument, etc.

Product brandQIANNIAN
Product nameButton switch
Product modelQN12-C1
Product informationMounting hole12mm
Operation typesMomentary
Head shapeFlat Head, Pin terminal, Ring Type
Enclosure materialNickel plated brass/Stainless Steel
Degree of protectionIP65 IK08
Contact parametersSwitch rating2A/36VDC
Contact configuration1NO
ContactSilver alloy,Pin terminal
Color/voltageOptional color R   O   Y   G   B   W
Optional voltage6V 12V 24V 110V 220V
Other parametersMechanical life50,000cyles
Electrical life50,000cyles
LED life40,000hour
Terminal TypePin Terminal(1.8X0.4)
Contact resistance≤50mΩ
Insylation resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temperature-20ºC~+55ºC
Panel thickness1~6mm
nut torque5~14Nm
Opration pressureAbout5N
Operation strokeAbout2.5mm
BasePA66
Packages100PCS/BOX
Websitehttp://qnpushbuttonswitch.en.made-in-china.com
Official websitehttp://www.qnele.com
Product size


Yueqing Qian Nian Electronic Co., Ltd. Was founded in 2001, a technology company which is specialized in designing and manufacturing varies types of push button switch, our company is committed to well-know brands of companies both at home and abroad to provide first-class products and enterprises supporting services. Company currently employs more than 160 people, including R&D personnel and mold production staff more than 30people. Leading products are: Metal waterproof push button switch, metal waterproof pilot lamp, anti-blast switch, accessories, piezo switch, and proximity switch. Our products are widely used in various types of console, Control box (cabinet), distribution box(cabinet), instrumentation box(cabinet), electrical apparatus, and other industrial automation device ect.

Quality is the lifeline, Company's management and production in accordance with Quality System Certification and Environment Management System Certification. Products have passed CE certification, CQC certification, TUV certification, CCC certification. Our company has domestic first -class lathes machining centers, and the products are unique. At home and abroad to enjoy a relatively high market visibility, reputation. The comaony has the right of import and export.

Our company adhere to the people-oriented modernized business administration, and pay attention to provide employees open working atmosphere and opportunities of realizing their ideals and their values, and adhere to " quality, brand, grade" expectations to help clients realize their dreams in the professional sphere.

The face of WTO opportunities and challenges brought about, our company has always adhere to" keep making process and never satisfied" entrepreneurial spirit, with technological advantage, we are striving to became one of the nation's largest, most productive companies. We sincerely welcome cooperation from all walks of life to come hand in hand to create a beautiful tomorrow!
