12mm Magnetic Alarm Buzzer 85dB 2.3kHz Buzzer

12mm Magnetic Alarm Buzzer 85dB 2.3kHz Buzzer
Price: US $ 0.1-0.3/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: MSES12C
Rated Voltage (V): 1.5V 3V 5V 12V
Color: Black
Size: 12*9.5mm
Min.Sound Output At 10cm(dB): 80dB, 85dB
Rate Frequency(Hz): 2300±300
Max.Rated Current(Ma): 20
Weight(G): 2
Use For: Make Sound
RoHS: Yes
Category: Buzzer
Transmission Mode: Air-conduction
Transducer Principle: Magnetic Earphone
Style: Mini
Cone: Plastic Frame
Certification: RoHS
Brand: Manorshi

Product Description

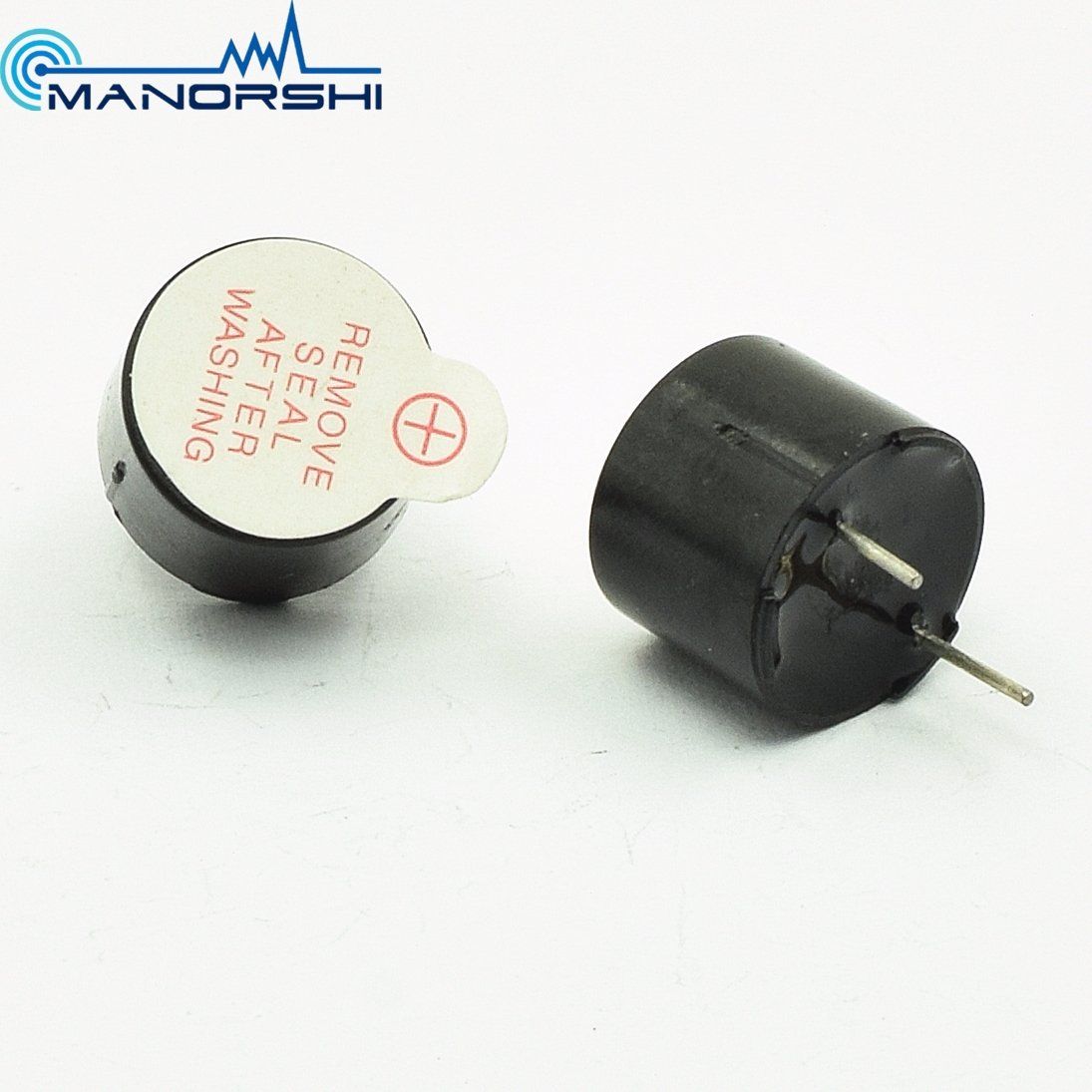

12mm magnetic alarm buzzer 85dB 2.3kHz buzzer

Specification

Type
MSES12C23P01
MSES12C23P03
MSES12C23P05
MSES12C23P12
Rated Voltage (V)
1.5
3
5
12
Operating Voltage(V)
1.2~3
2~5
4~7
8~16
Max.Rated Current(mA)
20
30
30
30
Min.Sound output at 10cm(dB)
80
85
85
85
Rate Frequency(Hz)
2300±300
Operating temperature(ºC)
-20~+70
Storage Temperature (ºC)
-30~+85
Weight(g)
2

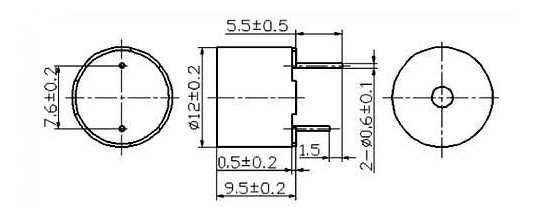

Dimension





Application




Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification




FAQ
1.What's your MOQ?
MOQ depends of different series of products, pls contact with us.
2.Do you support OEM and ODM services?
Yes, we can customize products according to the drawing.
3.How about freight fee?
We cooperate with different express companies, enjoy the lowest discount.
4.Do you support after sales service?
The professional after-sales service team will solve all problems for you.

Contact us

   Tel:86-519-89185720
    Mobile :8615961152360
   Website:www.buzzer-supplier.com




Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
