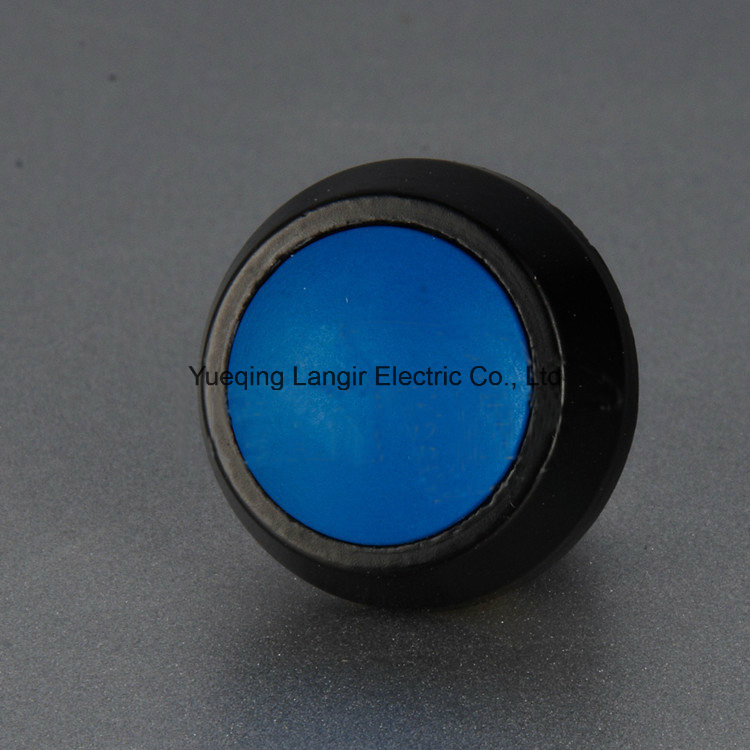

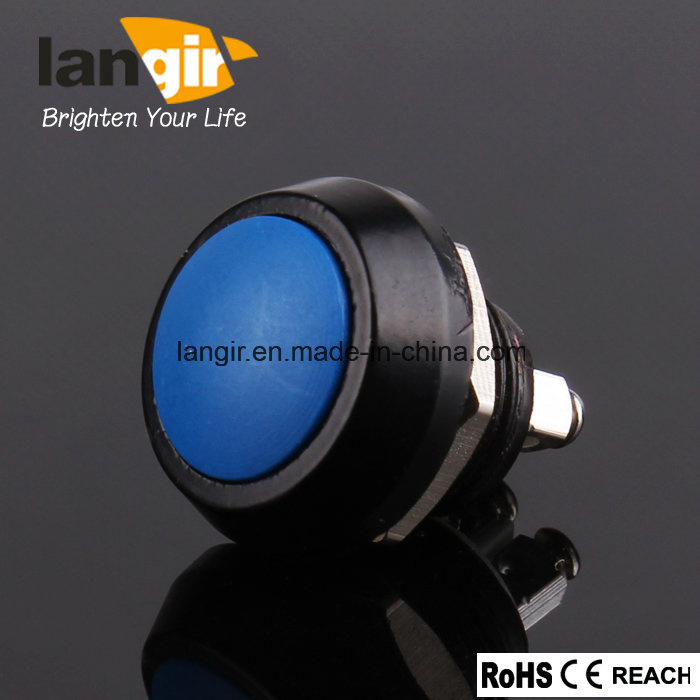

12mm Push Button Switch V12 Zn-Al. Alloy with Blue Actuator

Name: 12mm Push Button Switch V12 Zn-Al. Alloy with Blue Actuator
Brand: all-electronics-online.com
SKU: 773505795
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 1.11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	V12-B-1-A-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized:	Yes
Max. Voltage:	48VDC
Max. Current:	2A
Protection Level:	IP65
Material:	Zinc Aluminum Alloy
Actuator Color:	Black ,White ,Yellow,Blue,Green ,Red
Function:	Normal Open
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Structure:	Momentary Normal Open
Brand:	Langir
Certification:	RoHS

Product Description

Detailed Product Description

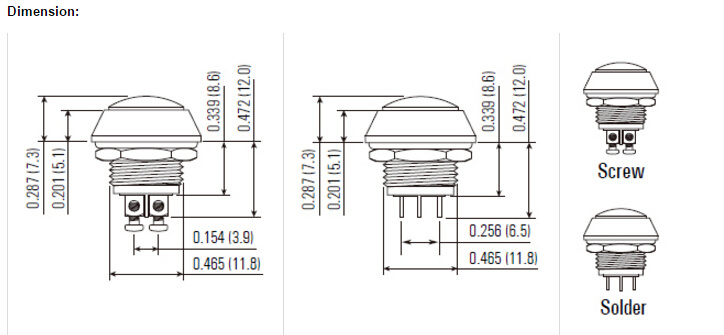

-Φ12mm diameter
-2A/48VDC
-1NO, Momentary
-Domed profile
-Crust material: Zn-Al. alloy

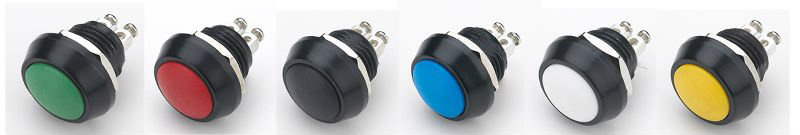

-Head Color: Red, Green, Yellow, Blue, White, Black.
-IP Degree: IP65

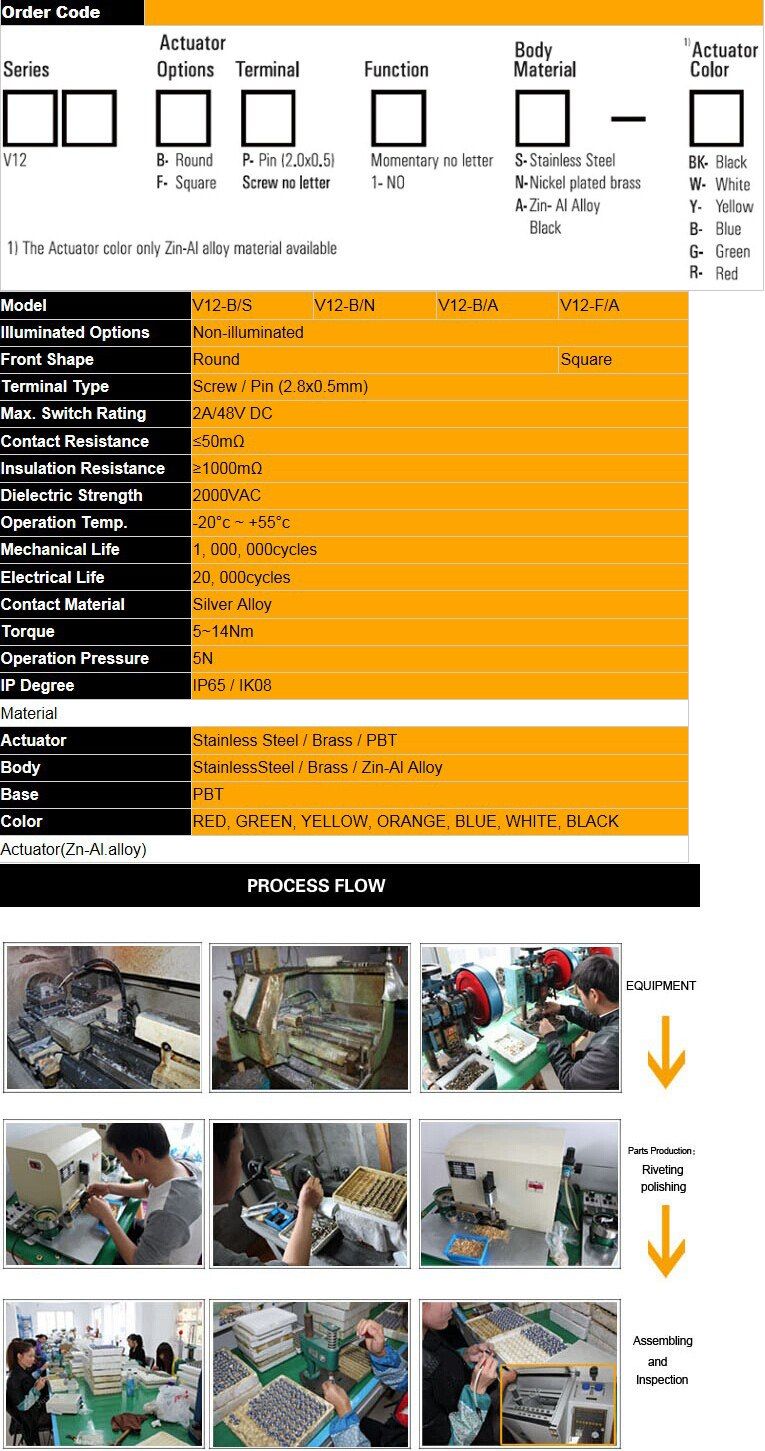

Model	V12-B-A	V12-B-P-A
Terminal Type	Screw Terminals	Pin Terminals(2x0.5mm)
Switching	No.1	No.1
Max. Switch Rating	2A/48VDC	2A/48VDC
Contact Resistance	≤50mΩ	≤50mΩ
Insulation Resistance	≥1000mΩ	≥1000mΩ
Dielectric Strengh	2000VAC	2000VAC
Operation TEMP.	-20°c ~ +55°c	-20°c ~ +55°c
Mechanical Life	1, 000, 000 cycles	1, 000, 000 cycles
Electrical Life	200, 000 cycles	200, 000 cycles
Contact Material	Silver Alloy	Silver Alloy
Panel Thickness	1~6mm	1~6mm
Torque	5~14Nm	5~14Nm
Operation Pressure	5N	5N
IP Degree	IP65	IP65
Material
Button	PBT	PBT
Body	Zn-Al alloy	Zn-Al alloy
Base	PBT	PBT
Head Color	Red, Green, Yellow, Blue, White, Black	Red, Green, Yellow, Blue, White, Black
RoHS Available

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
